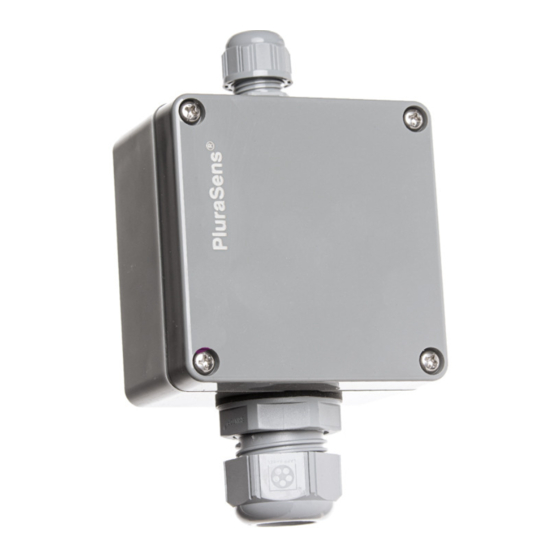

- Page 1 PluraSens ® Combustible Gas Transmitter E2618-LEL User Manual ...
-
Page 2: Table Of Contents
E2618-LEL Rev 08.12.2020 Table of contents Acetylene 4 Butane 5 Hydrogen 6 Methane 7 Propane 8 Specifications 9 Product description 11 Safety requirements 11 Operating conditions 11 Installation guidelines 12 Wall mount version 12 Duct mount version 12 Mounting dimensions 13 ... - Page 3 E2618-LEL Rev 08.12.2020 Warranty 23 Manufacturer contacts 23 3 ...
-
Page 4: Acetylene
E2618-LEL Rev 08.12.2020 Acetylene A colorless flammable gas, lighter than air. Mixtures with air are explosive. It results from the interaction of calcium carbide with water. In industrial production, acetylene is mainly ... -
Page 5: Butane
E2618-LEL Rev 08.12.2020 Butane A colorless flammable gas that is heavier than air. The term “butane” is used for any of two structural isomers (n-butane or iso-butane, with unbranched and branched-chain ... -
Page 6: Hydrogen
E2618-LEL Rev 08.12.2020 Hydrogen A colorless, odorless, flammable gas, that is much lighter than air. Mixtures with air are explosive. Results from the interaction of acids, bases, and water with active metals and ... -
Page 7: Methane
E2618-LEL Rev 08.12.2020 Methane A colorless flammable gas, the main component of natural gas, marsh gases. Methane results from bacterial decomposition of plant and animal matter (landfill gas). Methane is widely used as a fuel and chemical feedstock. ... -
Page 8: Propane
E2618-LEL Rev 08.12.2020 Propane A colorless flammable gas that is heavier than air. it occurs in light petroleum fractions. Propane is used mainly as a fuel and as a feedstock in organic synthesis. It is applied also ... -
Page 9: Specifications
E2618-LEL Rev 08.12.2020 Specifications Detected gases Acetylene, Butane, Hydrogen, Methane, Propane, etc Sampling method Diffusion Sensor type Metal oxide semiconductor Catalytic (pellistor) Typical detection range 0...100% LEL 0...100% LEL Resolution / digital unit 0.1% LEL 1% LEL Response time T90 ca. - Page 10 E2618-LEL Rev 08.12.2020 Other options Protection IP65, default cable length 3.0 m; Remote probe max height 80 mm, max diameter 65 mm 10 ...
-
Page 11: Product Description
E2618-LEL Rev 08.12.2020 Product description ® E2618 series transmitters belong to the PluraSens family of multifunctional measurement instruments. The instruments utilize gas sensors of various types with excellent ... -
Page 12: Installation Guidelines
E2618-LEL Rev 08.12.2020 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN ... -
Page 13: Mounting Dimensions
E2618-LEL Rev 08.12.2020 Mounting dimensions Wall mount version Duct mount version 13 ... -
Page 14: Sensor Probe Handling
E2618-LEL Rev 08.12.2020 Sensor probe handling The wall mount version of the transmitter is available with a remote probe (see drawing below for dimensions). The remote probe is connected to the main unit with a shielded ... - Page 15 E2618-LEL Rev 08.12.2020 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let ...
-
Page 16: Operation
E2618-LEL Rev 08.12.2020 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes about 1 hour. The ... -
Page 17: Delivery Set
E2618-LEL Rev 08.12.2020 Delivery set Gas transmitter E2618 (wall mount, duct mount, or remote probe version) ● ● Mounting accessories: ○ 4 screws with plastic dowels for wall mount version ○ Square Rubber flange for Duct mount option ○ Round rubber flange for Remote probe option ○... -
Page 18: Configuring
E2618-LEL Rev 08.12.2020 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more ... -
Page 19: Modbus Rtu Communication
E2618-LEL Rev 08.12.2020 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU ... - Page 20 E2618-LEL Rev 08.12.2020 0x0006 6 / 40007 RW Response delay, ms 1...255 10 1 – No parity bit, 1 stop bit (default after factory reset) 2 – No parity bit, 2 stop bits 3 – Odd parity, 1 stop bit 0x0007 ...
- Page 21 E2618-LEL Rev 08.12.2020 bit[0]=0/1 – sensor present/absent, R O bit[1]=0/1 – analog outputs deactivated/activated bit[2]=0/1 – in case the sensor is absent, turn signaling off/on analog output1 bit[3]=0/1 – in case the sensor is absent, turn on signaling with low current/high current on ...
- Page 22 E2618-LEL Rev 08.12.2020 * – The new value is applied after restart. ** – Broadcast slave ID 0 can be used to assign a new ID to the instrument with an ...
- Page 23 unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu www.evikon.eu 23 ...
