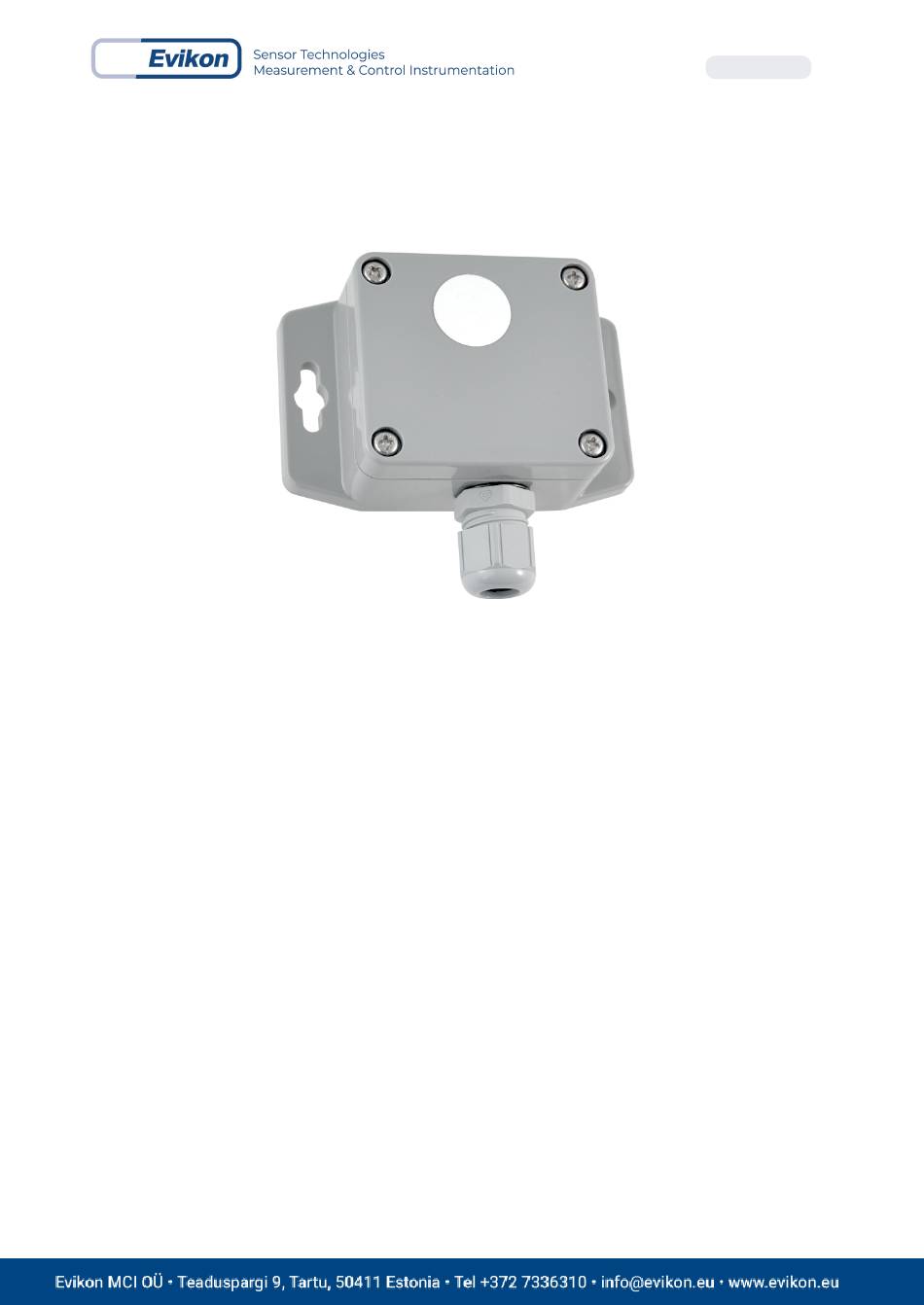

- Page 1 Updated 16 Dec 2024 Nitrogen Dioxide Transmitter E2617-NO2 USER MANUAL...
-
Page 2: Table Of Contents
Updated 16 Dec 2024 Table of Contents Nitrogen Dioxide Specifications Product Description Safety requirements Operating conditions Installation guidelines Mounting dimensions Electrical connections Delivery set Warranty Manufacturer contacts... -
Page 3: Nitrogen Dioxide
Updated 16 Dec 2024 Nitrogen Dioxide A colorless toxic gas, relatively insoluble in water. When exposed to oxygen (including air), nitric oxide is converted into nitrogen dioxide. Chemical formula Molar weight Relative gas density (to air) 1.59 Conversion 1 ppm = 1.88 mg/m Boiling point 21.2°C Flammability... -
Page 4: Specifications
Updated 16 Dec 2024 Specifications Sensor type Electrochemical cell Sampling method Diffusion Detection range 0-10 ppm, 0-20 ppm, 0-30 ppm Maximum overload 100 ppm Response time T90 < 60 s Sensor protection Microporous PTFE dust filter Sensor lifetime > 2 years in fresh air Sensitivity drift <... -
Page 5: Product Description
E2617 series provide an analog output with user-selectable signal type, 4-20 mA or 0-10V. Safety requirements Misuse will impair the protection of the product. Always adhere to the safety provisions applicable in the country of use. -
Page 6: Installation Guidelines
Updated 16 Dec 2024 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN 60079-29-2 and EN 45544-4 are also recommended for further instructions and related information about the installation. -
Page 7: Mounting Dimensions
Updated 16 Dec 2024 Mounting dimensions The IP65 instrument sensor is equipped with a hydrophobic microporous PTFE filter to protect the sensor from dust, dirt, and water drops. NOTE! Never stab or press the filter near its center where the sensor is located since this may damage the sensor. -
Page 8: Electrical Connections
Updated 16 Dec 2024 Electrical connections The terminals on the E2617 series devices are suitable for a wide range of wires with a cross-section of 0.34...2.5 mm2. We recommend to strip the wire end by 8...9 mm and use wire end sleeves. -
Page 9: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorised modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 9, Tartu 50411 Estonia info@evikon.eu...
