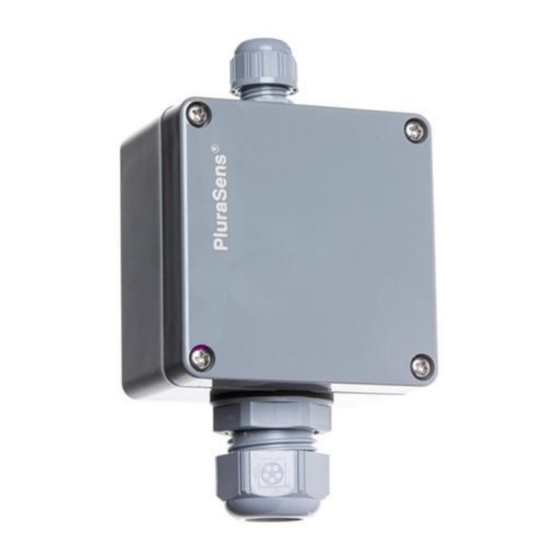

Evikon PluraSens E2618 Series User Manual
Refrigerant transmitter
Hide thumbs
Also See for PluraSens E2618 Series:
- User manual (36 pages) ,
- Manual (4 pages) ,
- User manual (4 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Evikon PluraSens E2618 Series
Summary of Contents for Evikon PluraSens E2618 Series

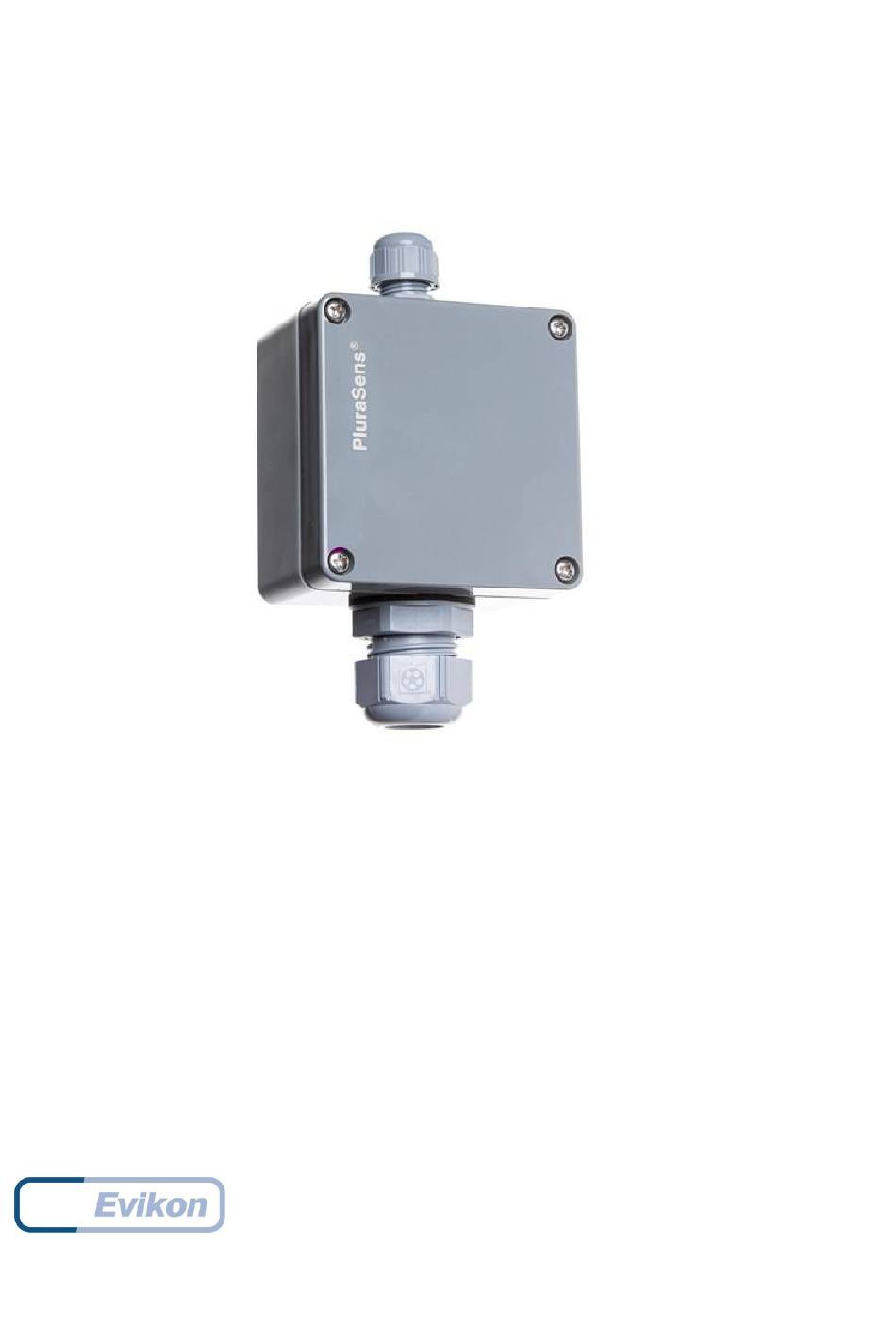

- Page 1 ® PluraSens Refrigerant Transmitter E2618-HFC User Manual...
-
Page 2: Table Of Contents
E2618-HFC Rev 09.03.2021 Table of contents Hydrofluorocarbons Specifications Product description Safety requirements Operating conditions Installation guidelines Wall mount version Duct mount version Mounting dimension Sensor probe handling Gas sensor replacement procedures Electrical connections Operation Maintenance Calibration Delivery set Order code for E2618-HFC options Configuring Return to default settings Modbus RTU Communication... -
Page 3: Hydrofluorocarbons
E2618-HFC Rev 09.03.2021 Hydrofluorocarbons HFCs are relatively non-flammable, chemically stable, and nonreactive. Classification of halocarbon refrigerants Group Refrigerants Chlorofluorocarbons (CFC) R11, R12 Hydrochlorofluorocarbons R22, R141b, R142b (HCFC) Hydrofluorocarbons (HFC) R32, R125, R134a, R143a Hydrofluoroolefins (HFO) R 1234ez, R1234yf, R1336mzz Chlorine containing refrigerants (CFC and HCFC) are considered to be damaging to the ozone layer and contributing to the greenhouse effect. - Page 4 E2618-HFC Rev 09.03.2021 asphyxiation in confined spaces. At higher temperatures (>250°C) decomposition products may include hydrofluoric acid (HF) and carbonyl halides. An escape of refrigerant through a leak may damage the refrigerating facilities.
-
Page 5: Specifications
E2618-HFC Rev 09.03.2021 Specifications Sampling method Diffusion Sensor type Metal oxide semiconductor (NDIR on demand) Typical detection range 0...1000 ppm Resolution / digital unit 1 ppm Response time T90 <120 s Sensor lifetime > 5 years Calibration interval 12 months Signal update Every 1 second <... -
Page 6: Product Description
E2618-HFC Rev 09.03.2021 Product description E2618 series transmitters belong to the PluraSens ® family of multifunctional measurement instruments. The instruments utilize gas sensors of various types with excellent repeatability, stability, and long lifetime. E2618 series provide two independent analog outputs OUT1 and OUT2, user-selectable to 4-20 mA or 0-10 V, proportional to the chosen scale for gas concentration. -
Page 7: Installation Guidelines
E2618-HFC Rev 09.03.2021 Installation guidelines Before proceeding with the installation it is mandatory to read the Safety requirements section and make sure to comply with all listed instructions. Installation standards EN 60079-29-2 and EN 45544-4 are also recommended for further instructions and related information about the installation. -
Page 8: Mounting Dimension
E2618-HFC Rev 09.03.2021 Mounting dimension Wall mount version Duct mount version... -
Page 9: Sensor Probe Handling
E2618-HFC Rev 09.03.2021 Sensor probe handling The wall mount version of the transmitter is available with a remote probe (see drawing below for dimensions). The remote probe is connected to the main unit with a shielded cable. The default remote probe cable length is 3 m. Wall mount remote probe with fixing clamp (default version), Remote probe with rubber flange and three self-tapping screws (on request) The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to... -
Page 10: Electrical Connections
E2618-HFC Rev 09.03.2021 Electrical connections Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let in cables of the power supply and of the external devices. Attach the power cable to the device without turning it on. -
Page 11: Operation
E2618-HFC Rev 09.03.2021 Operation Turn on the power. The instrument warm-up time takes about 1 minute after switching on and the final sensor stabilization time to maximum accuracy takes <60 minutes. The operating status is indicated by the LED on the PCB of the device. The control LED (red) response to different processes is presented in the following table: Mode LED mode... -
Page 12: Delivery Set
E2618-HFC Rev 09.03.2021 Delivery set Gas transmitter E2618 (wall mount, duct mount, or remote probe version) ● Mounting accessories: ● 4 screws with plastic dowels for wall mount version ○ Square Rubber flange for Duct mount option ○ ○ Round rubber flange for Remote probe option ○... -
Page 13: Configuring
E2618-HFC Rev 09.03.2021 Configuring A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas tubing with applicators, and a software pack. Please contact your Seller for more information. ® Gas transmitters E2618 share all functionalities of the PluraSens multifunctional transmitter platform. -
Page 14: Modbus Rtu Communication
E2618-HFC Rev 09.03.2021 Modbus RTU Communication RS485 communication interface Databits: 8 Supported Modbus functions: Parity: none / odd / even 03 – Read multiple registers Stop bits: 1 or 2 06 – Write a single register Protocol: Modbus RTU Communication parameters Parameter Permitted values Default... - Page 15 E2618-HFC Rev 09.03.2021 1200, 2400, 4800, 9600, 19200, 0x0005 5 / 40006 RW Baud rate * 9600 38400, 57600 0x0006 6 / 40007 RW Response delay, ms 1...255 1 – No parity bit, 1 stop bit (default after factory reset) 2 –...
- Page 16 E2618-HFC Rev 09.03.2021 bit[0]=0/1 – sensor present/absent, RO bit[1]=0/1 – analog outputs deactivated/activated bit[2]=0/1 – in case the sensor is absent, turn signaling off/on analog output1 bit[3]=0/1 – in case the sensor is absent, turn on signaling with low current/high current on analog output1;...
- Page 17 E2618-HFC Rev 09.03.2021 * – The new value is applied after restart. ** – Broadcast slave ID 0 can be used to assign a new ID to the instrument with an unknown ID. When addressing by ID 0 the device shall be the only Modbus instrument in the network.
-
Page 18: Warranty
Manufacturer or damaged by customer error or negligence or if there has been an unauthorized modification. Manufacturer contacts Evikon MCI OÜ Teaduspargi 7/9, Tartu 50411 Estonia info@evikon.eu...
