Summary of Contents for National Instruments TB-2637

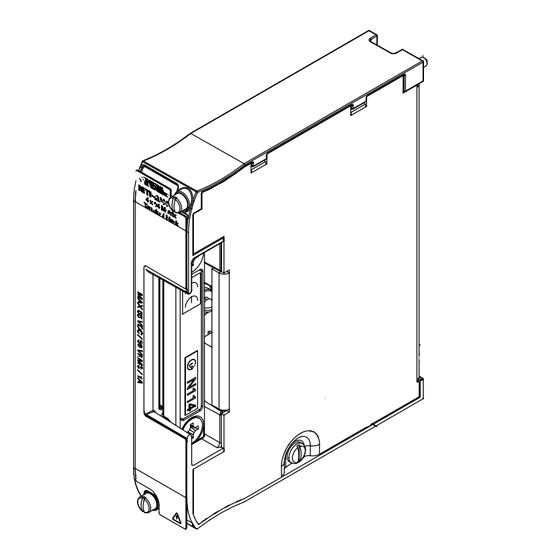

- Page 1 TB-2637...
-
Page 2: Unpack The Terminal Block
Getting Started Guide to determine when to install the NI TB-2637. Introduction The NI TB-2637 terminal block installs in front of the NI PXI-2534 switch module and has screw terminals that provide access to the rows and columns of the matrix. -
Page 3: Verify The Components
2. Verify the Components Make sure you have the following: ❑ NI TB-2637 terminal block ❑ PXI chassis ❑ NI PXI-2534 switch module ❑ 1/8 in. flathead screwdriver 3. Connect Signals To connect signals to the terminal block, complete the following steps while referring to Figure 1. - Page 4 2 Strain-Relief Opening 7 Terminal Block Top Cover 3 Signal Wires 8 Top Cover Screw 4 Strain-Relief Screws 9 Rear Connector 5 Jackscrews 10 Screw Terminals Figure 1. NI TB-2637 Terminal Block © National Instruments Corporation NI TB-2637 Installation Instructions...
- Page 5 NATIONAL INSTRUMENTS Figure 2. NI TB-2637 Terminal Reference NI TB-2637 Installation Instructions ni.com...
-
Page 6: Install The Terminal Block
4. Install the Terminal Block To connect the NI TB-2637 terminal block to the NI PXI-2534 front panel, complete the following steps while referring to Figure 3. Connect the NI PXI-2534 front connector to its mating connector on the terminal block. -
Page 7: Compliance And Certifications
Refer to the Declaration of Conformity (DoC) for this product for any additional regulatory compliance information. To obtain the DoC for this product, visit ni.com/ , search by model number or product line, and click the appropriate link certification in the Certification column. NI TB-2637 Installation Instructions ni.com... - Page 8 Waste Electrical and Electronic Equipment (WEEE) EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit ni.com/environment/weee.htm RoHS...
- Page 9 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
