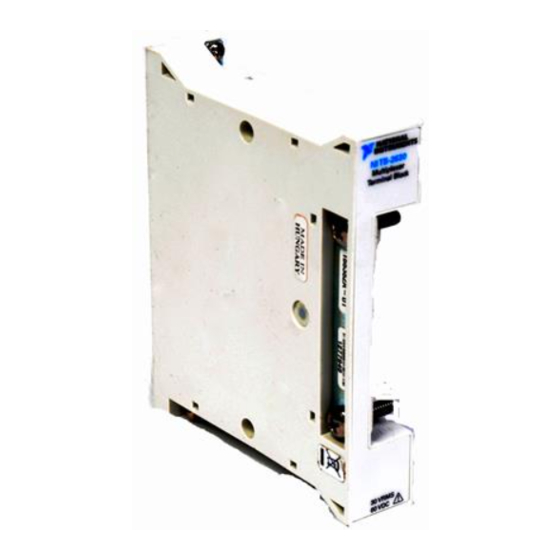

Introduction The TB-2630 terminal block installs in front of the PXI-2530 switch module. The TB-2630 has ribbon cable headers to connect signals to the switch. Screw terminals for the trigger input and trigger output signals also are available. -
Page 3: Unpack The Terminal Block
Do not install a damaged terminal block on a switch terminal block. Store the terminal block in the antistatic package when not in use. NI TB-2630 Installation Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 4: Verify The Components
2. Verify the Components Make sure you have the following: ❑ NI TB-2630 terminal block ❑ PXI chassis ❑ NI PXI-2530 switch module ❑ 1/8 in. flathead screwdriver ❑ Eight 2 × 9, 0.100 in. pitch ribbon cable connectors (included) ❑... - Page 5 4 Strain-Relief Screw 10 Ribbon Cable Connector 5 Chassis Screws 11 Ribbon Cable Header 6 Rear Connector Figure 1. TB-2630 Terminal Block NI TB-2630 Installation Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 6 COM 6 COM 7 1WREF2 1WREF3 TRIGOUT TRIGIN USE SHIELDED CABLE ON TRIGGERS Figure 2. TB-2630 Terminal Block Signal Connections © National Instruments Corporation NI TB-2630 Installation Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 7 BANK 4, PIN 7 ch113 BANK 7, PIN 2 ch28 BANK 1, PIN 13 ch71 BANK 4, PIN 8 ch114 BANK 7, PIN 3 NI TB-2630 Installation Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 8 In the 128 × 1, 1-wire topology, 1WREF0 (BANK 0–1, PIN 17) is connected to Note COM1 (BANK 1, PIN 18). © National Instruments Corporation NI TB-2630 Installation Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 9 BANK 7, PIN 13 ch28 BANK 2, PIN 13 BANK 3, PIN 13 ch61 BANK 6, PIN 14 BANK 7, PIN 14 NI TB-2630 Installation Instructions ni.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 10 BANK 7, PIN 5 ch21 BANK 2, PIN 6 BANK 3, PIN 6 BANK 6, PIN 6 BANK 7, PIN 6 © National Instruments Corporation NI TB-2630 Installation Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 11: Install The Terminal Block
BANK 6, PIN 16 BANK 7, PIN 16 4. Install the Terminal Block To connect the TB-2630 terminal block to the PXI-2530 front panel, complete the following steps. Note The NI PXI-2530 should already be installed in a PXI chassis. - Page 12 2 Front Connector 3 PXI-2530 4 TB-2630 Figure 3. Installing the TB-2630 Terminal Block Accessories When a double row ribbon cable connector is used, the pitch of the ribbon cable is half the pitch of the connector. For example, a 0.050 in. pitch ribbon cable uses a 0.100 in.
-
Page 13: Compliance And Certifications
Refer to Table 4 for additional connectors that you can use with the TB-2630. You can use any 0.050 in. pitch ribbon cable with the TB-2630. To use a ribbon cable with more than 18 conductors, remove the unwanted conductors before using. Refer to Table 4 for more information about the cable connector assembly. -
Page 14: Electromagnetic Compatibility
To obtain the DoC for this product, visit , search by model number or product line, and click the ni.com/certification appropriate link in the Certification column. © National Instruments Corporation NI TB-2630 Installation Instructions Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 15 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your CD, or ni.com/patents.
