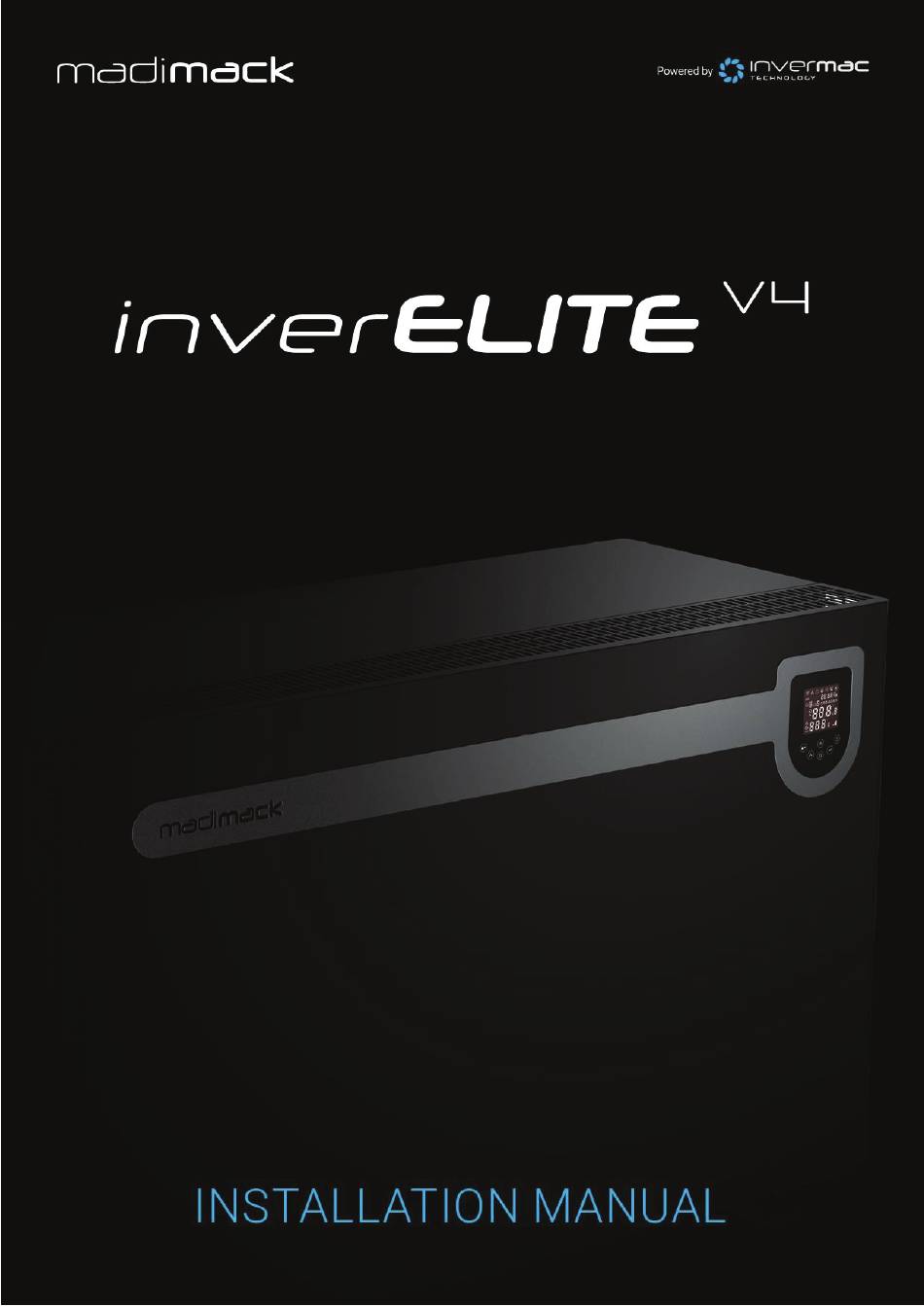

Madimack inverELITE V4 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inverELITE V4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Madimack inverELITE V4

Summary of Contents for Madimack inverELITE V4

  • Page 2: Table Of Contents

    CONGRATULATIONS AND THANK YOU FOR All our heat pumps are built and designed to the highest standard and are protected by our extended CHOOSING THE MADIMACK HIGH EFFICIENCY warranty service for peace of mind. INVERTER POOL HEAT PUMP. Warranty registration is required to be submitted online in...

  • Page 3: Important Safety Instructions

    Liability Disclaimer: Madimack is not responsible for any tions provided by Madimack and that they do not exceed the damage caused by improper installation, operation errors, or allowed installation limits for this product.zzzzz failure to follow the provided instructions and installation standards.

  • Page 4: Safety Precautions

    SECTION 1 SAFETY PRECAUTIONS We have provided important safety messages in this manual Please read thoroughly and obey all safety messages. for the installation, maintenance and repair of your heater. Environmentally friendly R32 Refrigerant is used in this heat pump. Warning This WARNING sign denotes a hazard.

  • Page 5: About Your Heat Pump

    SECTION 2 ABOUT YOUR HEAT PUMP 2.1. Transportation a. Always keep upright b. Do not lift the water union (Otherwise, the titanium heat exchanger may be damaged) 2.2 Accessories 4 x Rubber Feet nection of the condensate drainage kit: Ensure the drainage kit is securely installed before connecting pipework and electrical as it is easier to access 2.3 Features a.

  • Page 6: Operation Range

    High efficiency and energy saving. Heating capacity: 50% ~ 20% capacity w mode Operating at night. 2.6 Technical parameter Madimack Elite V4 3D High Efficiency Heat Pump Model Name Elite V4 - 100 Elite V4 - 120 Elite V4 - 140...

  • Page 7: External Dimensions

    2.7 External dimensions ESV4-100 ESV4-120 ESV4-140 ESV4-170 1036 ESV4-190 1036 ESV4-230 1104 ESV4-270 808, 1129, 945, ESV4-330 520, 939, 514, 1310, 945, ESV4-410 520, 994, 514, 1405, 1070, Above data is subject to modification without notice. Note: Above swimming pool heat pump specification drawing is for installation reference only to technical staff.

  • Page 8: Installation Guidance

    Distances used are specific to the ESV4-100 Model and are used as an example for preparing your heat pump installation site. Parameters are specific to each Madimack heat pump. Please use the specific parameters to your heat pump given in the following section to map out the heat pump installation site.
  • Page 9 1st case: Single unit – 3 obstacles Please note that these are absolute minimum distances and where possible should always have a greater difference. Under no circum- stances should any of the distances be reduced as performance will be affected. More ventilation is better. Air is circulated through the back of the heater and then through the sides.

  • Page 10: Plumbing Multiple Units

    Plumbing Multiple units: Multiple heat pumps acting as one system should be connected in Cascade (Parallel Connection). Adequate flow rate should be provided to all the units in the system to ensure efficient heating (Please refer to the commissioning section in the manual to learn about heat pumps commissioning).

  • Page 11: Installation Reminder

    Installation reminder Only competent persons are authorized to install the heat pump and should be educated with the relevant building codes and standards of their current state or local governing body for all electrical, mechanical and water services to prevent danger or damage to the unit. a.

  • Page 12: Reference For Protecting Devices And Cable Specifications

    References for protecting devices and cable specification MODEL ESV4- ESV4-120 ESV4-140 ESV4-170 ESV4-190 ESV4-230 ESV4-270 ESV4-330 ESV4-410 Rated 22.5 Current (A) Rated Breaker Residual Action Current (mA) Power Cord (mm 3x1.5 3x2.5 3x2.5 3x2.5 5x2.5 Signal cable (mm 3 0.5 3 0.5 3 0.5 3 0.5...
  • Page 13 o Heat pump activation without using the chlorinator controller and using the one pump used for filtration (additional controller required) An on-board pump output relay can activate the main filtration pump by using it in combination with a “single pump controller” without using the chlorinator timers needing to be activated which will stop over chlorination but still use a single supply pipework for the pool.

  • Page 14: Individual Circulation Pump Installation

    Individual circulation pump installation (Madimack heater + Madimack circulation pump) 1- See Pool Pump installation manual for more information on commissioning and how to set the pump. (pump should be in normally off state for activated control) 2- Termination socket is labeled (Pump control output) found on the side of the heat pump, connected to the quick connect socket that comes with the Inverflow pro and ultra pumps.
  • Page 15 Automation systems and additional controls The Madimack heat pump has an external controller input built into the heater. This is to allow for external connections such as automation systems, PV inverter controllers, or external timers. The input is a volt free input and extra should be taken that the device connecting to is a volt free relay. For 230v inputs please see Madimack Automation Bridge (sold separately) for more information.

  • Page 16: Pump Output E.l.v Socket

    1- Enables control of a standalone water pump* 2- Enables control of heat demand controllers such as the Madimack MJ-box. 3-Enables control of a slave heat pump in multiple heat pumps install InverELITE...

  • Page 17: Operation Guidance

    SECTION 4 4.1 Key Function Heating & cooling modes Symbol 1. Power On/Off 2. Wi-Fi setting 1. Lock/Unlock Screen 2. Heating mode (18- 3. Cooling mode ( 5- 4. Auto mode (12- 1. High mode 2. Medium mode 3. Low mode Temperature setting and navigation buttons Timer settings...

  • Page 18: Operation Instruction

    c. Unit turned off by an external controller Only operational when switched on by the external controller. Heating mode Cooling mode Auto mode Compressor power “percentage” Wi-Fi connection Inlet Outlet 4.3 Operation Instructions a. Screen Lock and switching on 3) Press “ ”...
  • Page 19 4.4 Advanced operational Instructions a. Time setting 1) How to check current time: Screen can be displaying either the clock or the running speed at one time, in case the screen is displaying running speed percentage, press” ” to check the time, it will be display for 10 seconds, then it will go back to showing the running speed percentage.
  • Page 20 b. Defrosting 1. Automatic defrosting: When machine is auto defrosting, “ ” will flash, and will automatically go back to the original mode, will be solid. 2. Manual Defrosting: To enter forced defrosting mode, the compressor must be working for more than 10 minutes. in heating mode, press “...

  • Page 21: Wi-Fi

    g. Wi-Fi Before you start the WIFI process, please make sure both your Bluetooth and WIFI are turned on your mobile device. This can be seen below for Android and iPhone users Android iPhone 1) Wi-Fi connection When the screen is on, press“ ”for 3 seconds, after “...
  • Page 22 InverELITE...
  • Page 23 InverELITE...
  • Page 24 InverELITE...
  • Page 25 InverELITE...
  • Page 26 Frequency "power" Power mode percentage Temperature unit "Degrees" Current temperature Set temperature Status Check Heating/ cooling mode selection Select power mode Set timers InverELITE...
  • Page 27 Sharing device with others InverELITE...

  • Page 28: Defrost

    h. Defrost Automatic defrosting: When machine is auto defrosting, “ ” will flash, and return to previous working mode when it finishes. 1) Defrost mode usually lasts for around 15 minutes, during this period, the heat pump fan will stop running, and relatively louder noise will be heard.

  • Page 29: P" Parameters Checking

    Madimack Heat Pumps have a built-in flow switch which will deactivate the heating function if not enough water flow is detected. The Heat Pump has a large range operation up to a seven-degree differential. If the temperature differential is above 7 degrees, the built- in flow switch or E6 Error will be displayed indicating not enough flow detected.

  • Page 30: Problems Without An Error Code

    Evaporator blocked. satisfied. Seek a swimming pool heating evaluation from insufficient heating. Air inlet and/or outlet blocked. Madimack team to check the heat pump ability to heat in certain 3 minutes start delay protection for conditions compressor Make sure that the set temperature is higher than current...

  • Page 31: Protection And Failure Code

    SECTION 6 Error Component corresponding What did the error detect? Solution High pressure protection High gas pressure switch 1. Check waterflow and make sure its adequate as per the specs 2. Check ventilation clearances as per specs Check for any possible damage on the heat pump Low pressure protection Low gas pressure switch fins located at the back...
  • Page 32 InverELITE...

  • Page 33: Electrical Parts

    Electrical parts Electrical spare parts Refrigerate system spare parts Others spare parts InverELITE...

  • Page 34: Exploded Diagrams

    Exploded diagrams of ESV4 Heat Pump ESV4 100/120/140/170/230/280/330/410 InverELITE...
  • Page 35 Exploded diagrams of ESV4 Heat Pump ESV4330 InverELITE...
  • Page 36 Exploded diagrams of ESV4 Heat Pump ESV4410 InverELITE...
  • Page 37 2.9 This warranty is void if the unit is installed by an installer not approved by Madimack or by persons who are not qualified to do so in the opinion of Madimack.
  • Page 38 3. WHAT IS COVERED BY THE MADIMACK WARRANTY 3.1 Madimack will repair or replace a faulty component of your unit if it fails to operate in accordance with its specifications. 3.2 For the full warranty terms and conditions for the unit, scan the QR Code below.
  • Page 39 Please complete all the details below from the installer and store this card along with the purchase docket in a safe place. Please take 2 or 3 photos of the installation and with this information upload them online at https://www.madimack.com.au/warranty- registration or use the barcode scanner to go direct to the page.
  • Page 40 InverELITE...
