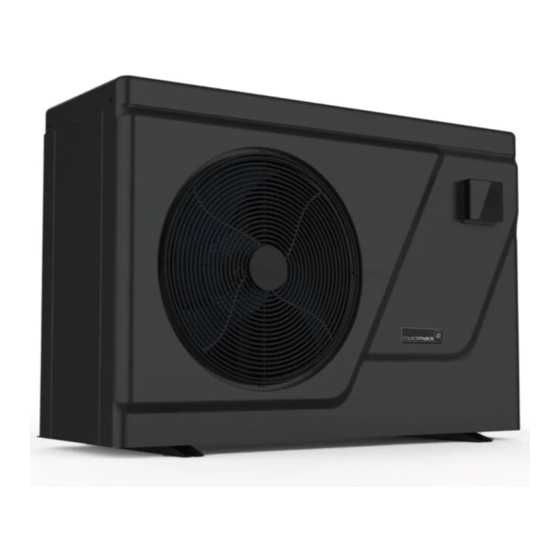

Summary of Contents for Madimack ECO

  • Page 2 INDEX...
  • Page 3 Appendix section at the back of the booklet www.madimack.com.au/warranty-registration. Please read and fully understand all information provided before attempting to install the pool heat pump. For technical questions and further information please contact support@madimack.com.au. We hope you enjoy using our heat pumps. Thank you!
  • Page 4 COVER THE BASICS: 1. Check that you have received the package in good condition 2. Every residential heat pump comes with two accessory boxes and the manual. The manual will mention all the parts and where they belong to make sure that the unit is commissioned, as per the 'commissioning' section, and that adequate water flow rate is provided 3.

  • Page 5: Safety Precautions

    Safety Precautions...
  • Page 6 We have provided important safety messages in this manual for the installation, maintenance and repair of your heater. Please read thoroughly and obey all safety messages. Environmentally friendly R32 Refrigerant is used in this heat pump. 1. Warning This WARNING sign denotes a hazard. It calls attention to a procedure, practice, or the like, which, if not correctly performed or adhered to, could result in personal injury or injury to a third party.
  • Page 7 2. Attention a. Please read the following instructions before installation, use and maintenance. b. Installation, must be completed only by competent persons only, and in accordance with this manual. c. Check all water connections are sealed and tested before operating the machine d.
  • Page 8 About your heat pump...
  • Page 9 1. Transportation a. Always keep upright b. Do not lift the water union (Otherwise, the titanium heat exchanger may be damaged) 2. Accessories 4 x Rubber Feet Connection of the condensate drainage kit:...

  • Page 10: Operating Range

    3. Features a. Stable DC inverter compressor b. EEV Technology c. High-efficiency twisted titanium heat exchanger d. High pressure and low pressure protection e. Soft start & wide voltage application f. Stable inverter control system 4. Operating range To provide you comfort and pleasure, please set swimming pool water temperature efficiently and economically.

  • Page 11: Technical Parameter

    6. Technical parameter ECO90/ ECO130/ ECO160/240 ECO200/ ECO240/ Model 240MM 240MM 240MM 240MM PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity (kW) 13.0 16.1 20.4 24.4 COP Range 6.4~10.8 6.3~11.0 6.2~10.9 6.3~11.0 6.3~11.0 PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. 70% Heating capacity (kW) 11.0 14.0...
  • Page 12 7. Dimension ECO90/240MM ECO130/240MM ECO160/240MM ECO200/240MM ECO240/240MM ※ Above data is subject to modification without notice. Please note the picture above and specification diagram of the pool heater is for the technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice.

  • Page 13: Installation

    Installation Guidance...

  • Page 14: Ventilation Requirements

    Ventilation requirements case: Single unit – 3 obstacles Model number ECO90 ECO130 ECO160 ECO200 ECO240 Option A Distance A (mm) Distance B (mm) Distance C (mm) Option B Distance A (mm) Distance B (mm) Distance C (mm) Please note that these are absolute minimum distances and where possible should always have a greater difference.
  • Page 15 case: Multiple units – 3 obstacles Model number ECO90 ECO130 ECO160 ECO200 ECO240 Option A Distance A (mm) Distance B (mm) Distance C (mm) Distance D (mm) Option B Distance A (mm) Distance B (mm) Distance C (mm) Distance D (mm) Please note that these are absolute minimum distances and where possible should always have a greater difference.
  • Page 16 Plumbing Multiple units: Multiple heat pumps acting as one system should be connected in Cascade (Parallel Connection). Adequate flowrate should be provided to all the units in the system to ensure efficient heating (Please refer to the commissioning section in the manual to learn about heat pumps commissioning). The diagram below represents the cascade connection...

  • Page 17: Installation Reminder

    1. Installation reminder Only competent persons are authorized to install the heat pump and should be educated with the relevant building codes and standards of their current state or local governing body for all electrical, mechanical and water services to prevent danger or damage to the unit. a.

  • Page 18: Water Pipe Connection

    2. Placing the unit and water connections The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough and antirust treated; Please don’t stack substances that will block air flow near inlet or outlet area, and there is no barrier within 50cm behind the machine, or it will affect the efficiency of the heat pump and even stop the machine;...

  • Page 19: Wiring Requirements

    4. Wiring requirements Connect the heat pump to an appropriate power supply, the voltage should comply with the rated voltage of the product. The machine must be earthed Wiring must be handled by a professional technician according to the circuit diagram. Install electrical protection device according to local code for wiring The layout of power cable and signal cable should be orderly and not affecting each other.
  • Page 20 6. References for protecting devices and cable specification ECO90/ ECO130/ ECO160/ ECO200/ ECO240/ MODEL 240MM 240MM 240MM 240MM 240MM ※ Above data is subject to modification without notice. Note: Above data is adapted to power cord < 10m. If power cord is 10m ~ 40m, the wire diameter must be increased.

  • Page 21: Installation Options

    7. Installation options: Flow switch activated heating The heat pump is activated by the flow of water initiated from the filtration/circulation pump, if the heater gets to temperature within the timers the unit will first start to use the inverter technology to slow the machine down to maintain the temperature and eventually to a stop.
  • Page 22 b. Heat pump activation without using the chlorinator controller and using the one pump used for filtration (additional controller required) An on-board pump output relay can activate the main filtration pump by using it in combination with a “single pump controller”...
  • Page 23 Individual circulation pump installation An onboard output initiates the circulation pump to start and stop from the heat pump itself based on temperature and timers. For use when there are dedicated heating pipes and to separate from the filtration timers. A: Switch Active outlet 1.
  • Page 24 d. Solar retro In some situations, when a heat pump is replacing a solar heating system, the pipework is available to be used next to the house but there is no way of adding a new electrical circuit to the pool equipment. With the use of an additional temperature sensor, you can use the in-built flow switch to activate the heating.
  • Page 25 e. Automation systems and additional controls The heat pump comes with easy to connect terminals in the electrical compartment labelled as 5 and 6. The unit comes prewired with a bridge cable connected. To add an external control to activate the heat pump, remove the bridge and add in a volt free terminal connection.

  • Page 26: Operation Guidance

    Operation Guidance...

  • Page 27: Key Function

    1. Key Function 1. Controller overview and key functions Symbol Designation Function ON/OFF Power On/Off Boost Mode Press to start Boost mode Silence Mode Press to start Silence mode UP/DOWN Temperature Setting & Displaying Attention: The controller has a built-in memory so all parameters are saved in the event of power loss b) Controller functions and settings Switching the unit on and mode selection Power On &...
  • Page 28 Defrosting Automatic active defrosting: When the machine is operating in low temperatures it is very common for ice to build up on the external coil. The heat pump has a built in defrost protection program which will activate when it senses ice starting to form. When machine is defrosting, starts flashing;...

  • Page 29: Wifi Operation

    4. WiFi Operation For video tutorials and further help please visit www.Madimack.com.au FAQ for all you need to do and full walkthrough. It is crucial that the WiFi is over the machine and is of a high power, the WiFi is a cloud based solution and needs the WiFi to be active on the machine for it to receive a signal.
  • Page 35 Testing...

  • Page 36: Trial Run

    1. Heat pump checks before use The air inlets and outlets are free of any debris and are not obstructed. Refrigeration pipes or components are not installed in a corrosive environment. Check electric wiring connections are tight and adhere to the electrical schematic Check for water leaks around the machine and all new water connections 2.
  • Page 37 4. Running status check a. Press and hold symbol for 10 seconds, to enter running status mode. b. After five seconds the display will show status code C0 and a corresponding value c. Change status code by pressing d. Press to quit running status mode 5.
  • Page 38 6. Parameters Table Step Content Adjust range Default length 0：Continuation Water pump running way 1：Water temp control 2：time/water temp control Time setting (only available when the water 10 ~ 120 min 5 min 60 min pump running way is set to “2” Compressor continuously running time in 30 ~ 90min 1min...
  • Page 39 Commissioning...

  • Page 40: Calibrating The Flow Rate

    Madimack Heat Pumps have a built-in flow switch which will deactivate the heating function if not enough water flow is detected. The Heat Pump has a large range operation up to a seven-degree differential. If the temperature differential is above 7 degrees, the built-in flow switch or E6 Error will be displayed indicating not enough flow detected.

  • Page 41: Maintenance

    Maintenance...
  • Page 42 “SWITCH OFF” power supply to the heater before cleaning, examination or repairing supply heater before cleaning, examination and repairing. b. In the winter season, when you don’t swim: a. Cut off power supply to prevent any machine damage. b. Drain water clear of the machine. c.

  • Page 43: Troubleshooting For Common Faults

    Troubleshooting for common faults...
  • Page 44 1. Repairing Guidance WARNING! If repairs or removal is required, contact authorized service center. Requirements for Service Personnel Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification.
  • Page 45 Protection & Failure Code Error Component corresponding What did the error detect? Solution High pressure protection High gas pressure switch 1. Check the water flow from the filtration pump and ventilation clearances. 2. Check high pressure switch is closed circuit 3. Replace PCB 4. replace inverter board Low pressure protection Low gas pressure switch 1.
  • Page 46 2). Replace Inverter board Power surge Water inlet temp sensor failure The water inlet temperature Check the Temperature sensor at the water inlet, might sensor is either damaged or need to be changed running a short circuit Water outlet temp sensor failure The water outlet temperature Check the Temperature sensor at the water outlet, sensor is either damaged or...
  • Page 47 Except where inconsistent with the Owner’s Statutory Rights and the rights given by this Warranty, all other warranties and all liability of Madimack for any loss or damage direct and consequential is expressly excluded.
  • Page 48 Damage or problems or unsatisfactory performance resulting from operations at conditions outside the operating conditions specified in the Madimack technical or sales literature applicable to the equipment.
  • Page 49 Madimack for any defect of design, materials or workmanship will be limited to any of the following as determined by Madimack: - a) Replacing the equipment or supplying equivalent equipment;...
  • Page 50 Please complete all the details below from the installer and store this card along with the purchase docket in a safe place. Please take 2 or 3 photos of the installation and with this information upload them online at https://www.madimack.com.au/warranty-registration or use the barcode scanner to go direct to the page. Supplied by...
