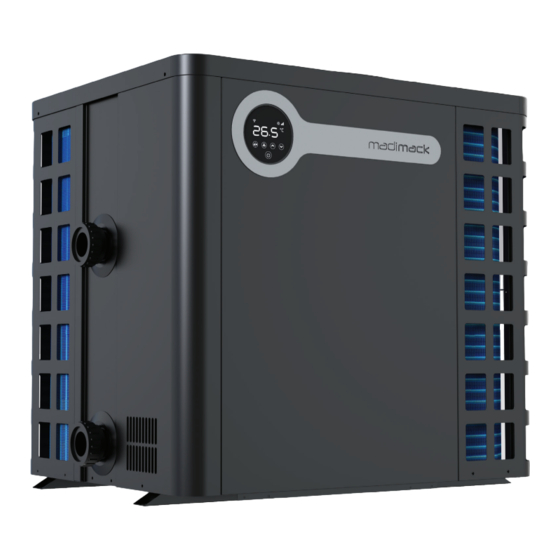

Summary of Contents for Madimack inverTITAN

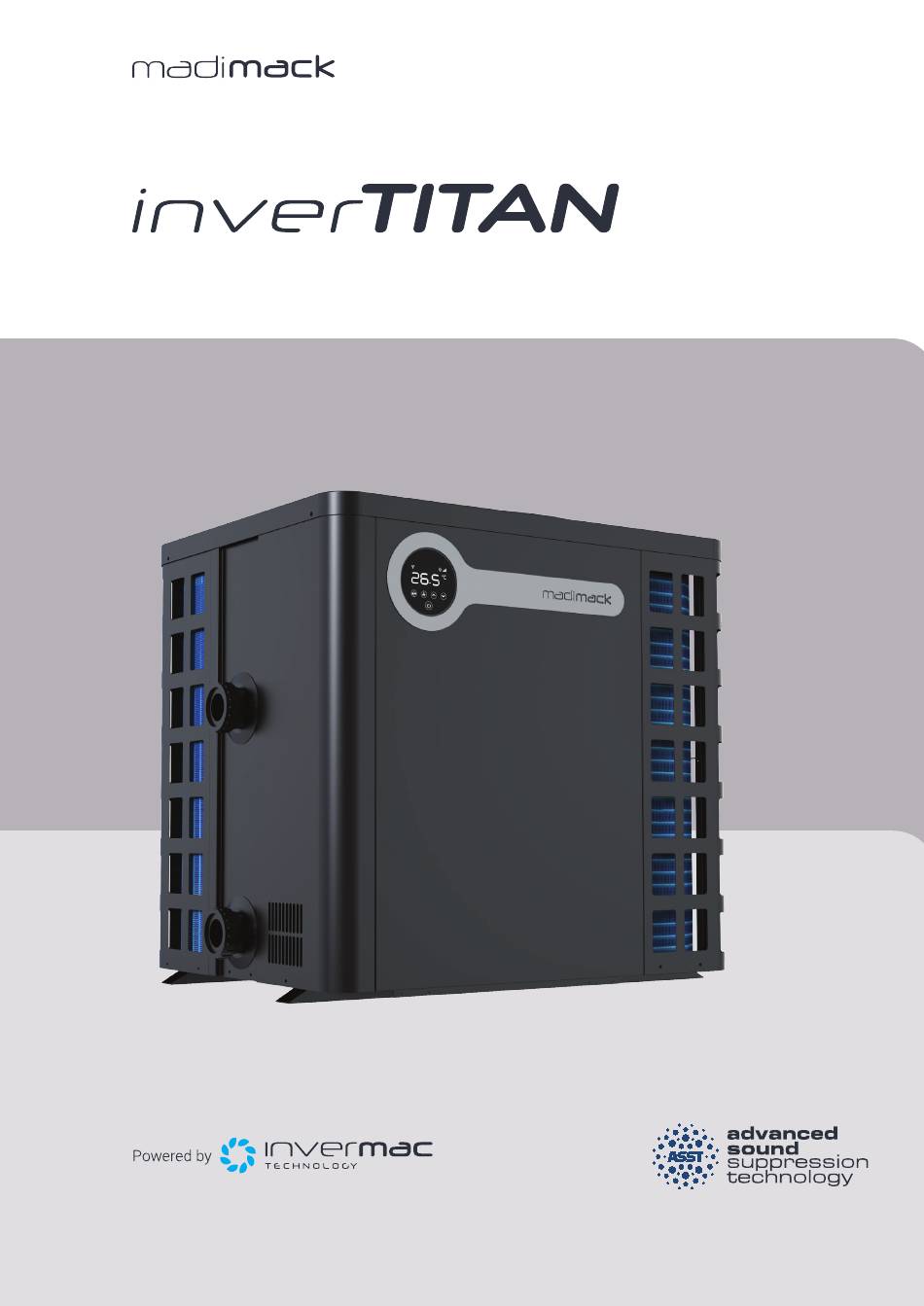

- Page 1 INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Table of contents 1. Foreword 2. Safety precautions 2.2 Warning 2.2 Attention 2.3 Safety 3. About your heat pump 3.1 Transportation 3.2 Accessories 3.3 Operating condition and range 3.4 Introduction of different modes 3.5 Dimensions 3.6 Technical Parameter 4. Installation guidance 4.1 Installation reminder 4.2 Wiring 4.3 Electric wiring diagram... -
Page 3: Foreword
Please read and fully understand all information provided before attempting to install the pool heat pump. For technical questions and further information please contact support@madimack.com.au. We hope you enjoy using our heat pumps. Thank you! InverTITAN... - Page 4 All contractual or non-contractual liabilities of Madimack products shall be deemed null and void in relation to any damage stemming from installation or operational lapses, or the failure to adhere to the instructions provided by Madimack or the applicable installation standards pertaining to the equipment detailed in this document.
-
Page 5: Safety Precautions
fire source. out by trained service personnel b. It must be placed in well d. Vacuumize completely before welding. ventilated area, indoor or Welding can only be carried out by closed area is not allowed. professional personnel in service center. InverTITAN... -
Page 6: Attention
Installation and any repairing should be conducted in the area with good ventilation. The ignition source is prohibited during the inspection. f. If the R410A gas leaks during the installation process, all operations must be stopped immediately and call the service center. InverTITAN... -
Page 7: About Your Heat Pump
The heat pump has two modes: Boost and Silence. b. They have different strengths under different conditions. Mode Modes Strength Heating capacity: 20% to 100% capacity Boost mode Intelligent optimization Fast heating Heating capacity: 20% to 80% capacity Silence mode Sound level: 3dB(A) lower than Boost mode InverTITAN... -
Page 8: Dimensions
※ Above data is subject to modification without notice. Note: The picture above is the specification diagram of the pool heat pump, for technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice. InverTITAN... -
Page 9: Technical Parameter
Please note that the performance and parameter performance of this product are different under different conditions. Related parameters are subject to adjustment periodically for technical improvement without further notice. For details please refer to nameplate. InverTITAN... -
Page 10: Installation Guidance
More ventilation is better. These units must be installed outdoors in a well-ventilated area, its recommended not to be installed in decks, under houses, in sheds, or any sorts of indoor locations. InverTITAN... -
Page 11: Installation Reminder
Please hold the drainage nozzle (accessory) into the hole and clip it well, and then connect a pipe to drain the condensation water out. b. The inlet and outlet water unions can’t stand the weight of soft pipes. The heat pump must be connected with hard pipes! InverTITAN... -
Page 12: Wiring
Must be hard wired, plug is not allowed. 2. The swimming pool heat pump must be earthed well. 3. The power cord and signal wire must be installed with conduit. 4. WARNING: Before obtaining access to terminals, all supply circuits must be disconnected. InverTITAN... -
Page 13: Reference For Protecting Devices And Cable Specification
Please see control socket connection diagram for further information around connecting to the socket.) If the external controller is not initiating the heat pump to operate the display with show the word “OFF” InverTITAN... -
Page 14: Operation Guidance
Water temperature setting range(12~30°C ) “ “ ”: Auto mode Water temperature setting range(12~40°C ) * When water inlet temperature is lower than * When water inlet temperature is higher than setting point, automatic heating mode starts. setting point, automatic cooling mode starts InverTITAN... -
Page 15: Wifi Operation
(Water Vapor). 5.4 WiFi Operation For video tutorials and further help please visit www.Madimack.com.au FAQ for all you need to do and full walkthrough. It is crucial that the WiFi is over the machine and is of a high power, the WiFi is a cloud based solution and needs the WiFi to be active on the machine for it to receive a signal. -
Page 16: Wi-Fi Operation (Optional)
SECTION 6 WI-FI OPERATION (OPTIONAL) InverGo Download Account Registration Register by e-mail or third-party application. Android a. E-mail registration. InverTITAN... - Page 17 Register through third-party application Create Family Please set family name and choose location of device. InverTITAN...
- Page 18 APP Pairing a. With Bluetooth 1. Please confirm that you’re connected to Wi-Fi and your Bluetooth is on. 2. Click “Add Device”, and then follow the instructions to pair device. InverTITAN...
- Page 19 After hearing “Beep”, enter Wi-Fi password in app. During connection, “ ” will flash. Once the app connects to Wi- Fi successfully, “ ” will display. 3. Click “Add Device”, and then follow the instructions to pair device. InverTITAN...
- Page 20 Query Select Boost/ Timer Silence Mode On/Off 2. For heat pump with Heating & Cooling function: Compressor Indicate speed Boost/Silence mode °C/°F switch Inlet water Setting temperature temperature Query Select Heating/ Cooling/Auto mode Select Boost/ Timer Silence Mode On/Off InverTITAN...
- Page 21 After pairing, if your family members also want to control the device, please let your family members register “InverGo” first, and then the administrator can operate as below: Notice: Weather forecast is just for reference. App is subject to updates without notice. InverTITAN...
-
Page 22: Testing
Inlet water temp °F Outlet water temp °F Ambient temp °F Exhaust gas temp °F Evaporator coil pipe temp °F Return gas temp °F Cooling coil pipe temp °F Cooling plate temp °F EEV opening angle DC fan speed r/min InverTITAN... -
Page 23: Temperature Display Conversion (Celsius/Fahrenheit)
-10 ~ 20 （cooling ） Electronic expansion valve manual/auto 0：Auto，1：Manual Electronic expansion valve opening setting 50 ~ 240 175（H5） （heating） Electronic expansion valve opening setting 50 ~ 240 175（H5） （cooling） Power off memory function 0 — NO，1 — YES InverTITAN... -
Page 24: Commissioning
Madimack Heat Pumps have a built-in flow switch which will deactivate the heating function if not enough water flow is detected. The Heat Pump has a large range operation up to a seven-degree differential. -
Page 25: Maintenance
4. If repair or scrap is required, please contact authorized service center nearby. 5. Do not attempt to work on the equipment by yourself. Improper operation may cause danger. 6. In case of risking, safety inspection must be carried before the maintenance or repairing for heat pumps with R410A gas. InverTITAN... -
Page 26: Troubleshooting For Common Faults
Don’t try to repair it yourself. Note: If the following conditions happen, please stop the machine immediately, and cut off the power supply immediately, then contact your dealer: 1. Inaccurate switch action . 2. The fuse is frequently broken or leakage circuit breaker jumped. InverTITAN... - Page 27 Compressor driver module failure PFC module failure Compressor start failure Compressor running failure Inverter board over current protection Inverter board overheat protection Current protection Cooling plate overheat protection Fan motor failure Power filter plate No-power protection PFC module over current protection InverTITAN...
-
Page 28: Warranty
Madimack, at its discretion, shall rectify defects covered under this warranty by either repair or replacement of the faulty equipment or parts. Such repairs or replacements will be conducted during regular business hours by Madimack or an authorized repair agent, free of charge for parts or direct repair labor. - Page 29 Access and Transportation: Any costs related to gaining access to equipment in challenging or hazardous locations, as well as freight charges or travel costs for repairs outside Madimack's standard service area. Mobile Applications and Reinstallation: Equipment installed in transportable or mobile applications (e.g., caravan or boat), reinstallation in such applications, or relocation to a different location.
-
Page 30: Product Warranty Registration
Please complete all the details below from the installer and store this card along with the purchase docket in a safe place. Please take 2 or 3 photos of the installation and with this information upload them online at https://www.madimack.com.au/warranty-registrationor use the barcode scanner to go direct to the page. Supplied by...
