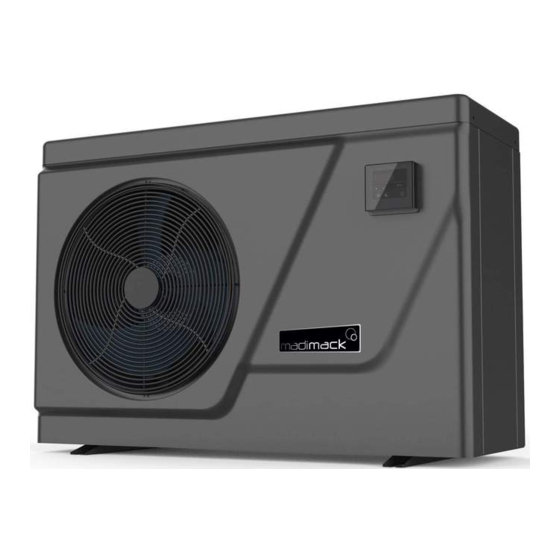

- Page 1 Summer Eco INVERTER POOL HEAT PUMP USER'S MANUAL...
-
Page 3: Table Of Contents
Table of contents A. Foreword B. Safety Precautions 1. Warning 2. Attention 3. Safety C. About your heat pump 1. Transportation 2. Accessories: 3. Features 4. Operating condition and range: 5. Introduction of different modes: 6. Technical parameter 7. Dimensions D. Installation guidance 1. Installation requirments 2. Placing the unit and water connections 3. Wiring 4. Electric wiring Diagram 5. Reference for protecting devices and cable specification E. Operation guidance 1. Controller overview and key Function 2.Controller functions and settings F. Testing 1. Heat pump checks before use 2. Refrigerant leak detection method 3. Trial run 4. Running status check G. -
Page 4: Foreword
A. Foreword Thank you for choosing the Madimack high efficiency inverter pool heat pump. All our heat pumps are built and designed to the highest standard and are protected by our extended warranty service for peace of mind. We hope you enjoy using our heat pumps. -
Page 5: Safety Precautions
B. Safety Precautions We have provided important safety messages in this manual for the installation, maintenance and repair of your heater. Please read thoroughly and obey all safety messages. Environmentally friendly R32 Refrigerant is used in this heat pump 1. Warning a. -
Page 6: Attention
Safety Precautions 2. Attention a. Please read the following instructions before installation, use and maintenance. b. Installation, must be completed only by competent persons only, and in accordance with this manual. c. Check all water connections are sealed and testes before operating the machine d. -
Page 7: About Your Heat Pump
C. About your heat pump 1. Transportation a. Always keep upright b. Do not lift with the water unions (The titanium heat exchanger inside the heat pump may be damaged) 2. Accessories: 3. Features Stable DC inverter compressor EEV Technology Quick hot gas defrosting with Saginomiya 4-way valve High-efficiency twisted titanium heat exchanger High pressure and low pressure protection... -
Page 8: Operating Condition And Range
4. Operating condition and range: Air temperature operating range: 0℃～43℃ Heating temperature setting range: 18℃～35℃ The heat pump will have best performance in operating temperature range of ambient Air 15℃～ 25℃ 5. Introduction of different modes: The heat pump has two modes: Boost and Silence. They have different strengths under different conditions. -
Page 9: Technical Parameter
6. Technical parameter SUME60 SUME80 SUME110/ SUME130/ SUME160/ SUME200/ SUME250/ Model /240MM /240MM 240MM 240MM 240MM 240MM 240MM PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humid. 80% Heating capacity (kW) 13.0 16.0 20.0 25.0 COP Range 5.5~10.1 5.2~10.1 5.4~10.5 5.6~10.8 5.8~10.9 5.7~10.5 5.8~11 PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humid. -
Page 10: Dimensions
7. Dimensions Name Size(mm) Model SUME60/240MM SUME80/240MM SUME100/240MM SUME130/240MM SUME160/240MM SUME200/240MM SUME250/240MM 1084 ※ Above data is subject to modification without notice. Please note the picture above and specification diagram of the pool heater is for the technician’s installation and layout reference only. The product is subject to adjustment periodically for improvement without further notice. -
Page 11: Installation Guidance
D. Installation guidance 1. Installation requirements Only competent persons are authorised to install the heat pump and should be educated with the relevant building codes and standards of their current state or local governing body for all electrical, mechanical and water services to prevent danger or damage to the unit. a. -
Page 12: Placing The Unit And Water Connections
2. Placing the unit and water connections a. Placing the unit and fixing • The frame must be fixed by bolts (M10) to a concrete foundation or brackets. The concrete foundation must be solid and fastened; the bracket must be strong enough and anti-rust treated. •... -
Page 13: Wiring
3. Wiring a. Connect to appropriate power supply, the voltage should comply with the rated voltage of the products. b. The machine must be earthed c. Wiring must be handled by a professional technician according to the circuit diagram. d. Set earth leakage protector according to local code for wiring (leakage operating current ≤ 30mA). e. -
Page 14: Operation Guidance
E. Operation guidance 1. Controller overview and key functions Symbol Designation Function ON/OFF Power On/Off Boost Mode Press to start Boost mode Silence Mode Press to start Silence mode UP/DOWN Temperature Setting & Displaying Attention: The controller has a built-in memory so all parameters are saved in the event of power loss... -
Page 15: Controller Functions And Settings
2.Controller functions and settings a. Switching the unit on and mode selection • Power On & Power Off Press to power on or power off machine. • Temperature Setting Press to display and adjust set temperature. • Mode Selection Press to start boost mode, and light will turn on. -
Page 16: Testing
F. Testing 1. Heat pump checks before use The air inlets and outlets are free of any debris and are not obstructed. Refrigeration pipes or components are not installed in a corrosive environment. Check electric wiring and connections are tight adhere to electrical schematic and the unit is fully earthed Check for water leaks around the machine and all new water connections 2. - Page 17 OPTIMUM FLOW RATE DIFFERENTIAL FROM INLET TO OUTLET IS BETWEEN 2-4 DEGREES Madimack Heat Pumps have a built-in flow switch which will deactivate the heating function if not enough water flow is detected. The Heat Pump has a large range operation up to a seven-degree differential.
-
Page 18: Maintenance
G. Maintenance “ SWITCH OFF ” power supply to the heater before cleaning, examination or repairing 1. Precautions in winter season when the unit is due to not be operating for a long period of time. a. Switch off all power supply to prevent any machine damage. b. -
Page 19: Trouble Shooting For Common Faults
H. Trouble shooting for common faults 1. Repairing Guidance ----------------------------------------------------------------------------------------------------------------------------------------- WARNING: If repairs or removal is required, contact authorized service center. Requirements for Service Personnel Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. - Page 20 Protection & Failure code Display Not failure description No water flow protection Power supply excesses operation range Excessive temp difference between inlet and outlet water. (Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder Display Failure description High pressure protection Low pressure protection...
-
Page 21: Appendix
I. Appendix Water pump: 230V, less than 500W Breaker/fuse (Not Supplied) Power Cable Earth Power Supply 230V~/50Hz Water Pump Water Pump Breaker/fuse (Not Supplied) Power Supply 230V~/50Hz Earth... - Page 22 Water pump: 230V, over 500W Breaker/fuse Power Cable (Not supplied) Earth Power Supply 230V~/50Hz Water Pump Water Pump Breaker/fuse (Not supplied) Contactor Power Supply 230V~/50Hz Earth...
- Page 23 Water pump control and timer connection 1: Water pump timer 2: Water pump wiring of Heat Pump Note: The installer should connect 1 parallel with 2 (as above picture). To start the water pump, condition 1 or 2 is connected. To stop the water pump, both 1 and 2 should be disconnected.
-
Page 24: Wifi Operation
J. WiFi operation a. Components c. Installation WiFi Box Base WiFi Button Indicator light Terminal Screw base on back panel. Green: Network connection Orange: No network Red: Failure b. Installation position Slide WIFi box into base. Connect cable. - Page 25 1. APP Download 2. APP Binding Android mobile please download from iPhone please download from a. Press WiFi button for 3 seconds to enter binding program, light will flash. b. Enter "Configure new device" in APP, follow indication to finish binding. Select WiFi Select WiFi Please enter password...
- Page 26 3. Operation( Heating Only) Menu On/Off Weather Silence/Boost Mode Temperature setting Mode Setting Timer 4. Operation( Heating& Cooling) Menu On/Off Weather Silence/Boost Mode Temperature setting Timer Mode Setting Heat/Cool Notice: 1. If WiFi signal does not cover machine, please speak to your electrician to expand WiFi network 2.
- Page 27 www.Madimack.com.au...
