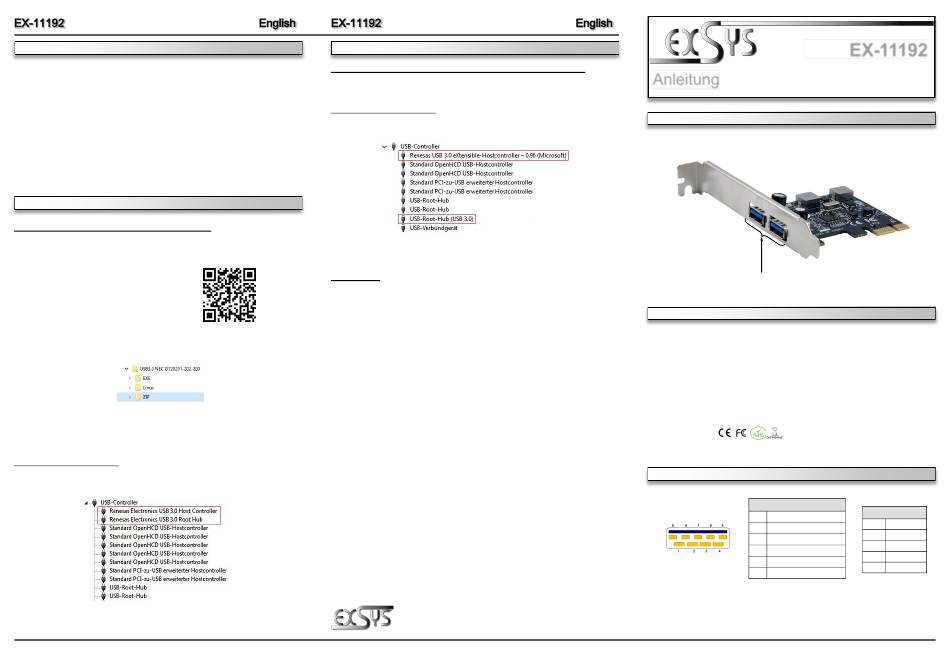

Exsys EX-11192 Manual

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11192. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP / Vista / 7 / Server 2003 & 2008R2
Windows recognizes a new "USB (Universal Serial Bus) controller" at startup.
The drivers are available for download on our website:
www.exsys.ch or www.exsys.de
Search for: EX-11192
Alternatively, you can scan the following QR code:
Go to the folder "USB3.0 NEC D720201-202-200/ZIP" and start the "setup" (see figure):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry:
If you see these or a similar information's the device is installed correctly.
5
DRIVER INSTALLATION
Windows 8.x / 10 / 11 / Server 2012R2 & 2016 & 2019 & 2022
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry:
If you see these or a similar information's the device is installed correctly.
Linux / Mac
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
6
Anleitung
Vers. 1.0 / 31.10.22
AUFBAU
2x USB 3.2 Gen 1 A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-11192 ist eine USB 3.2 Gen 1 PCIe Karte. Sie ist mit zwei externen Ports ausgestattet,
die jeweils 3A Strom zu Verfügung stellen. Die EX-11192 benötigt keinen zusätzlichen Strom
vom PC-Netzteil. Sie unterstützt alle PCIe Slots von x1 bis x16. Der PCI-Express Bus unter-
stützt optimal die Leistung des schnellen Renesas Chipsatz. Die EX-11192 gewährleistet so
eine sichere Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde! Sie
unterstützt alle USB Anschlüsse von 1.1 bis 3.2.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux / Mac
Anschlüsse: 2x USB 3.2 Gen 1 A-Buchse
Lieferumfang: EX-11192, Low Profile Bügel, Anleitung
Zertifikate:
ANSCHLÜSSE
USB 3.2 Gen 1 Buchse:
USB 3.2 Pin's
Pin Signal
5 SSTX+
6 SSTX-
7 GND
8 SSRX+
9 SSRX-
1
EX-11192
USB 2.0 Pin's
Pin Signal
1 VCC
2 DATA-
3 DATA+
4 GND
