Exsys EX-11194 Manual

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11194. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCIe expansion slot and insert the card. Make sure that the card is
plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP / Vista / 7 / Server 2003 & 2008R2
After starting Windows is recognizes a new "USB (Universal Serial Bus)-Controller". Start the
application „RENESAS-USB3-Host-Driver-30160-setup" which is in the „EXE" folder (see
picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new en-
tries:
If you see these or a similar new entries, the device is installed correctly.
5
DRIVER INSTALLATION
Windows 8.x / 10 / 11 / Server 2012R2 & 2016 & 2019 & 2022
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new en-
tries:
If you see these or a similar new entries, the device is installed correctly.
Linux / Mac
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
6
Anleitung
Vers. 1.0 / 14.12.22

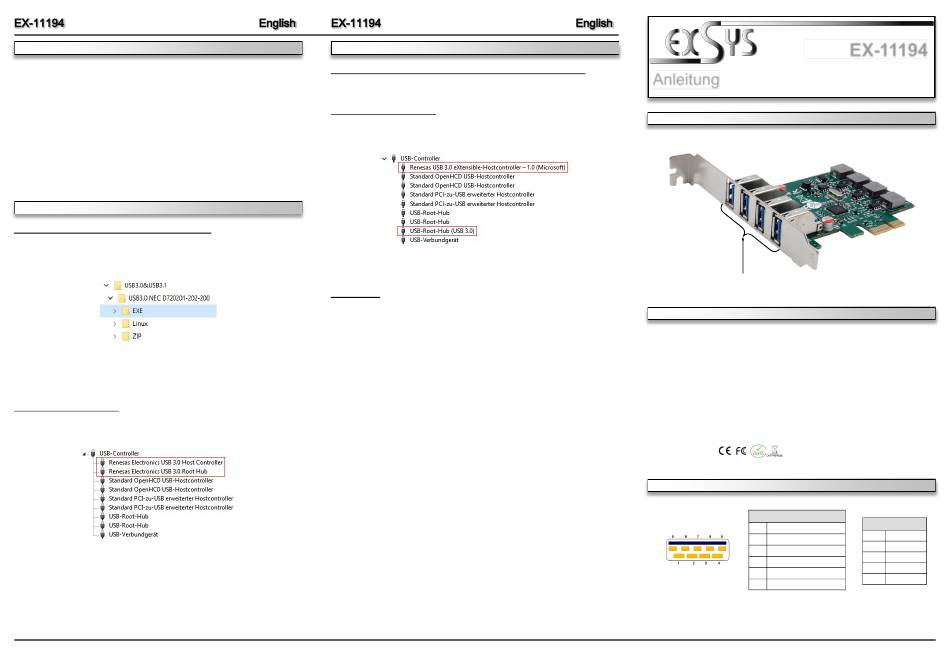

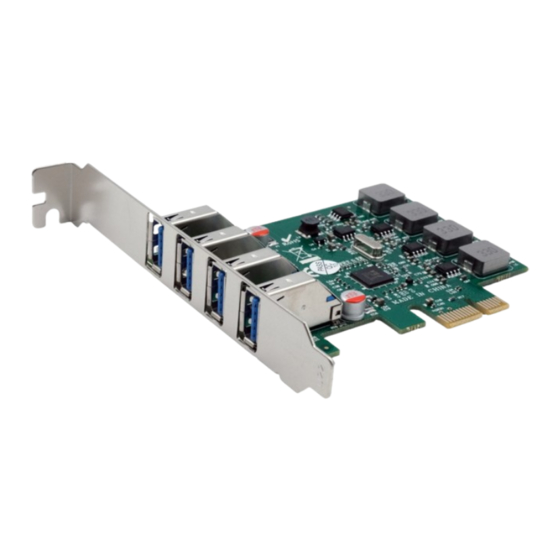

AUFBAU
4x USB 3.2 Gen 1 A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-11194 ist eine USB 3.2 Gen 1 PCIe Karte. Sie ist mit vier externen Buchsen ausgestat-
tet, die jeweils 900mA Strom zu Verfügung stellen. Die EX-11194 unterstützt die volle Leistung
von 900mA an allen vier externen Buchsen ohne das Sie zusätzlichen Strom vom PC-Netzteil
benötigen. Sie unterstützt alle PCIe Slots von x1 bis x16. Der PCI-Express Bus unterstützt
optimal die Leistung des schnellen Renesas Chipsatz. Die EX-11194 gewährleistet so eine
sichere Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde! Sie
unterstützt alle USB Anschlüsse von 1.1 bis 3.2. Mit der EX-11194 wird ein Low Profile Bügel
mitgeliefert für schmale PC-Gehäuse bis maximal 8cm Bauhöhe.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux / Mac
Anschlüsse: 4x USB 3.2 Gen 1 A-Buchse
Lieferumfang: EX-11194, Low Profile Bügel, Treiber CD, Anleitung
Zertifikate:
ANSCHLÜSSE
USB 3.2 Gen 1 Buchse:
USB 3.2 Pin's
Pin Signal
5 SSTX+
6 SSTX-
7 GND
8 SSRX+
9 SSRX-
1
EX-11194
USB 2.0 Pin's
Pin Signal
1 VCC
2 DATA-
3 DATA+
4 GND
