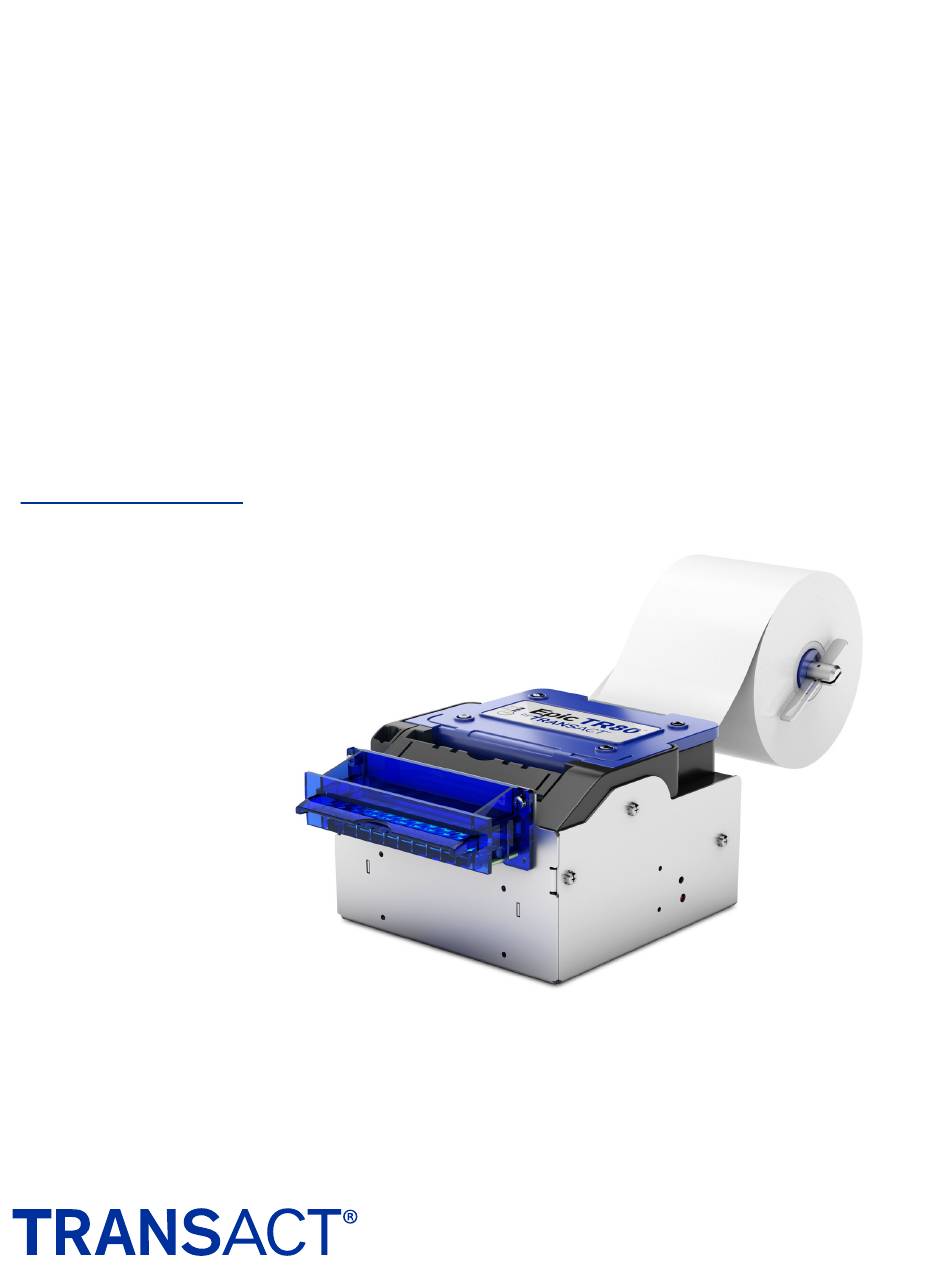

- Page 1 EPIC TR80 EPIC TR80 Quick Start Guide...
- Page 2 Technologies Incorporated Epic TR80 Quick Start Guide This document is intended to provide a basic guide for the setup of the Epic TR80 printer. For more detailed information, refer to the Epic TR80 OEM Integration Manual. Spindle Set Up •...
- Page 3 Technologies Incorporated Note: The toggle on the spindle must be in the correct orientation for each paper width. Use the “toe” of the toggle to verify the correct orientation as shown above. This can be adjusted by rotating the toggle and arm 180 degrees (spindle nut must be loosened to rotate). 82.5mm Position 80mm Position 80mm Toggle Position (Left Mount)
-
Page 4: Connect The Printer
Technologies Incorporated The spindle arm assembly may be mounted to the spindle mounting bracket in one of three positions. The spindle mounting screws require a 7mm hex nut driver. Up Position Straight Position Down Position Note: The toggle should be rotated to be positioned vertically in every spindle position. Connect the Printer Install the printer in the host system. -
Page 5: Jam Clearing
Technologies Incorporated Load Paper • Insert the paper roll on the spindle support arm. Paper should exit the top of the roll. • Apply power to the printer. The printer will beep and display a fault indication on the top cover LEDs. •... - Page 6 Technologies Incorporated www.transact-tech.com ©2024 TransAct Technologies, Inc. P/N 88-20205 Rev 1.1.3...
