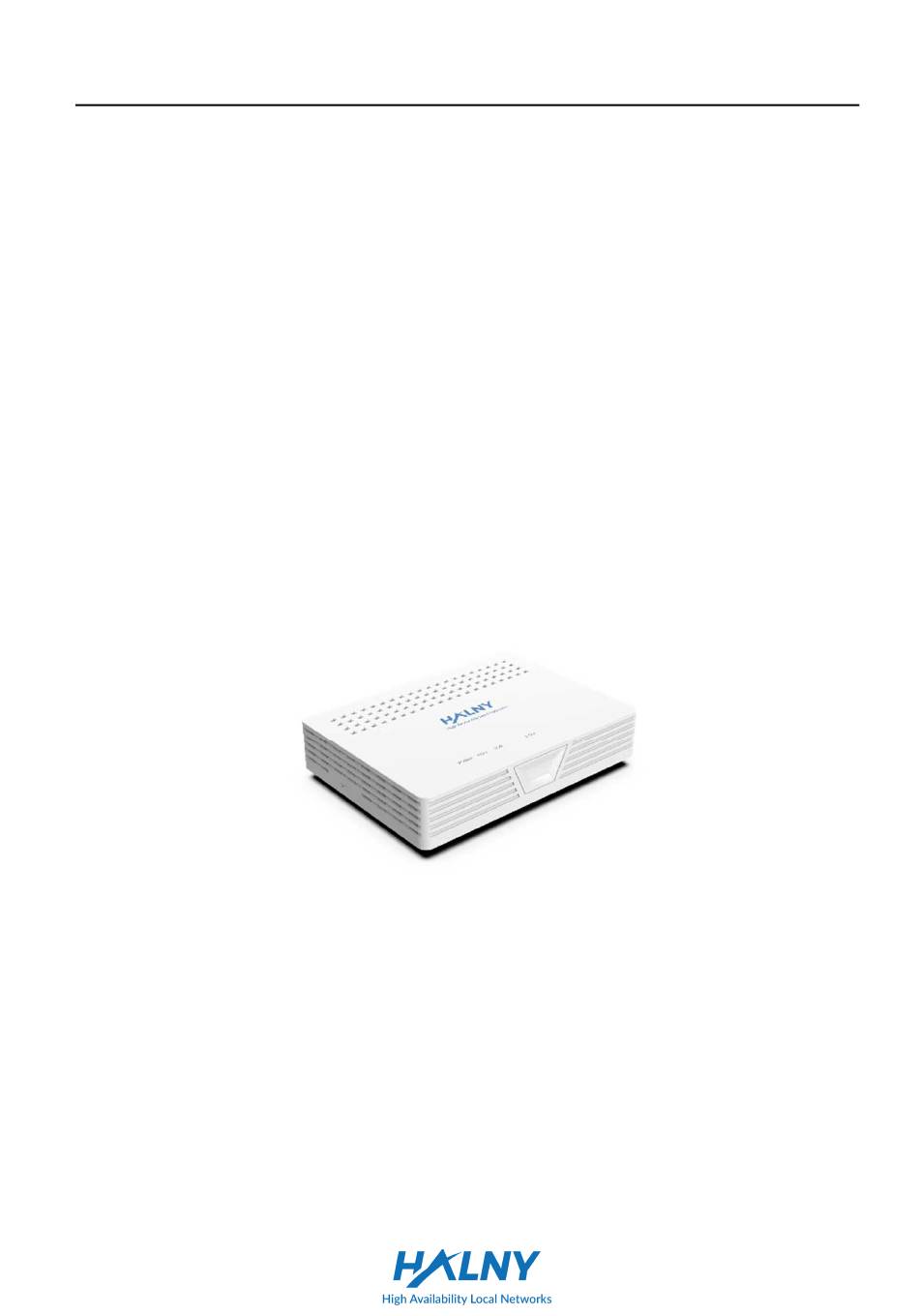

  • Page 1 Quick Installation Guide Quick Installation Guide GPON ONT HALNY HL-1B...
  • Page 2: Safety Guidance

    Quick Installation Guide Safety Guidance 1.1 Safety Check Before installing the device, you must check the following items. 1.1.1 Electric Safety  Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably.
  • Page 3: Features And Function

    Users should assume responsibilities for any accidents due to incompliance with the above instructions. 2 Overview This chapter mainly describes functions and the structure of the HALNy HL-1B. 2.1 Features and Function  Fast rate. Support up to 1.25Gbps uplink and 2.5Gbps downlink data transmission rates.
  • Page 4: Front Panel

    Quick Installation Guide 2.2.1 Front Panel Fig. 1 - Front Panel Color Status Description The power works normally. POWER Green Powered off or the power supply is abnormal. Refer to Table 2: “PON LED Status Instruction” Green Refer to Table 2: “PON LED Status Instruction” The connection of Ethernet interface is normal.
  • Page 5: Rear Panel

    Quick Installation Guide 2.2.2 Rear Panel Fig 2. Rear Panel ONU Rear Panel Description: Interface / Function Button Ethernet interface, for connecting to a computer or an Ethernet interface of a switch. 2.5G Connect power cable Turn on/off the power supply. ON/OFF Table 3.Rear Panel port description 2.2.3...
  • Page 6: Installation Preparations

    Quick Installation Guide 3 ONU Installation The chapter describes the required installation operations before you use the device for the first time. 3.1 Product Networking Application - FTTH Fiber to the Home (FTTH) means to install the ONU to residences or enterprise buildings.
  • Page 7: Connecting The Network Cable

    Step 1 Use the one end of the network cable to connect the Ethernet interface of the computer. Step 2 Use other end of a network cable to connect the Ethernet interface on the rear panel of the HALNy HL-1B. 3.3.2 Connecting the Fiber Caution ...
  • Page 8: Troubleshooting

    Quick Installation Guide 3.3.3 Connecting the Power Adapter and Power Cord  Connect the output end of the power adapter included in the device package to the input end of the power supply of the ONU ,  Insert one end of the power cord attached with the device into the input end of the power adapter.
  • Page 9: Technical Specification

    Quick Installation Guide 5 Technical Specification Main Technical Specifications Standard GPON Standard ITU-T G.984.x and G.988 Uplink 1.25Gbps Rate Downlink 2.5Gbps Optical interface Single Mode Interface RJ-45 100/1000/2500Mbps, MDI/MDIX Self 1 LAN / 2.5G port adaption Physical Characteristics and Environment Requirements Power adapter input 100V~240V AC,50Hz~60Hz Whole-device power supply...
  • Page 10: Additional Information

    Additional information: Declaration of Conformity (CE) HL-1B has been tested and found to comply with the stated standards which are required by the Council Directive of 2014/30/EU. The device complies with this CE Declaration when the installation is done in accordance with the instruction and documentation.
  • Page 11 Quick Installation Guide Recycling This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according European directive 2012/19/EU in order to be recycled or dismantled. This will minimize the negative effects on the environment and human health resulting from the possibility of the presence in the equipment substances,...
