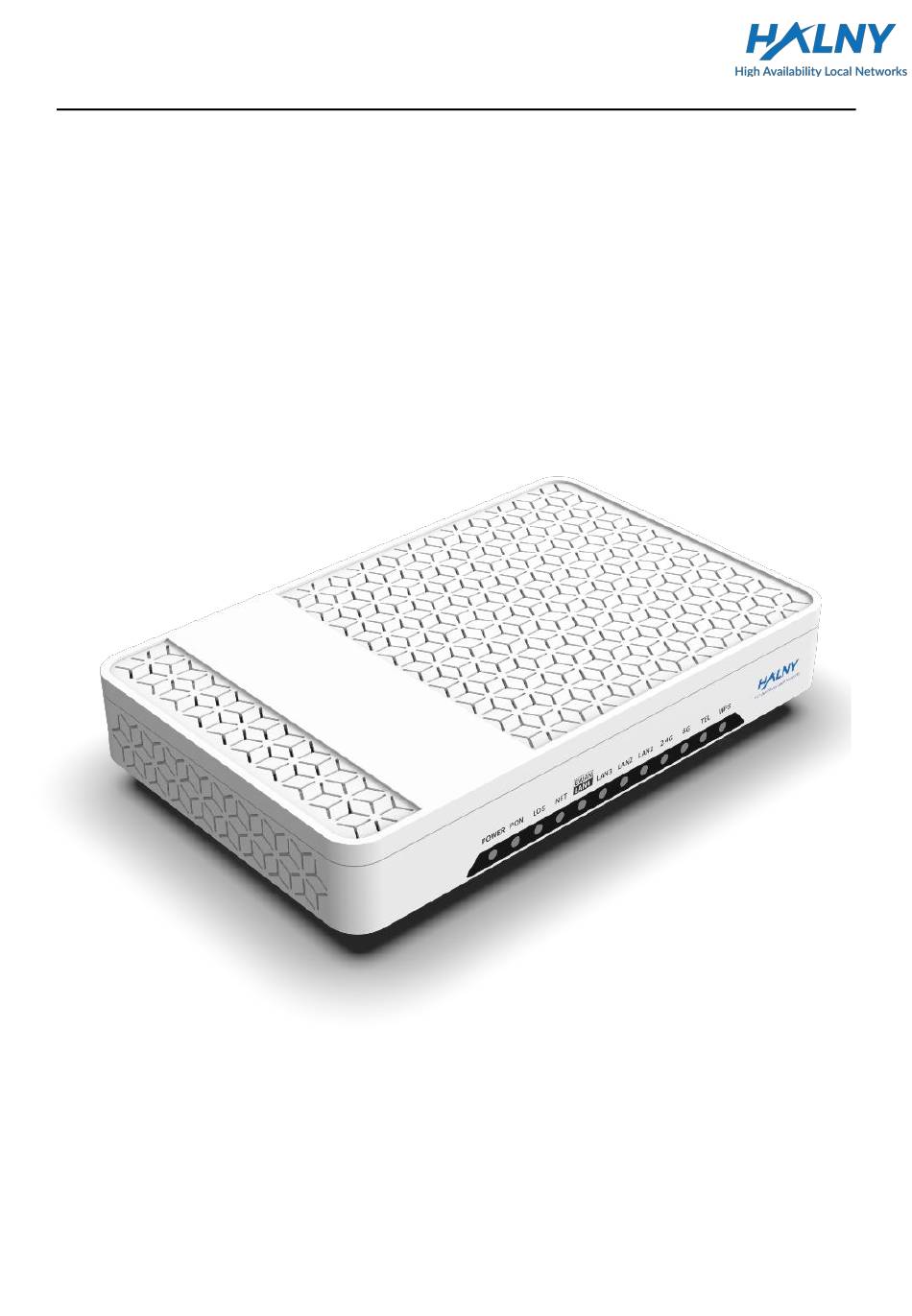

- Page 1 Quick Installation Guide Quick Installation Guide HALNy GPON ONT HL-4GXV-F...
-
Page 2: Electric Safety
Quick Installation Guide 1 Safety Guidance 1.1 Safety Check Before installing the device, you must check the following items. 1.1.1 Electric Safety ⚫ Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably, ⚫... -
Page 3: Features And Function
Quick Installation Guide ⚫ Clean the device using a soft and dry cloth rather than liquid or atomizers. Power off the device before cleansing it, ⚫ Power off the idle device, ⚫ Keep the ventilation hole clean and prevent any object from dropping into the device through it. -
Page 4: Front Panel
Quick Installation Guide 2.1 Front panel Fig1. Front panel On the front panel a row of LEDs is placed. Those LEDs allows you to easily check the status of the device and it’s interfaces. Kolor Status Opis Power is ON POWER Green Power is OFF / Faulty PSU... -
Page 5: Rear Panel
Quick Installation Guide 2.2 Rear panel Fig2. Rear panel Function PSU socket POWER Ethernet socket (RJ45) LAN 1..4 Phone socket (RJ11) Device power ON/OFF button ON/OFF Hold for 5s to activate WPS Hold for 30-40s to restore device to factory settings RESET Hold for 5s to activate/deactivate WiFi WIFI... - Page 6 Quick Installation Guide 3 ONU installation The chapter describes the required installation operations before you use the device for the first time. 3.1 Product Networking Application - FTTH Fiber to the Home (FTTH) means to install the ONU to residences or enterprise buildings.
- Page 7 Quick Installation Guide...
- Page 8 Quick Installation Guide 3.2 Connecting ONU 3.2.1 Wiring connection and power on Connect fiber optical cable (ended with AC/APC plug) to the optical port located on the bottom of the device. You can connect an Ethernet devices to LAN1 … LAN4 sockets (ex. computer with wired NIC, printer, gaming console, set-top-box, TV, etc.) You can connect a phone to TEL socket Plug in the PSU plug to the POWER socket.
-
Page 9: Troubleshooting
Quick Installation Guide Caution When a fiber is not in use, ensure to cover the optical interface of the ONU and the dust cap of the optical fiber. Prevent grease, dust pollution or water immersion, which may lead to unavailable fiber and optical interface of the device. -
Page 10: Technical Specification
Quick Installation Guide 5 Technical Specification Main Technical Specifications Standard GPON ITU-T G.984, TR156/TR255 Uplink 1.25Gbps Throughput Downlink 2.5Gbps 1 WAN port SC/APC, Single Mode optical fiber 4 LAN ports RJ-45 10/100/1000Mbps, auto-MDI/MDIX Interface 1 POTS port RJ-11 FXS WiFi 2.4Ghz 802.11n/ax (2T2R MIMO) 576Mbps WiFi 5Ghz 802.11ac/ax (2T2R MIMO) 1201Mbps... -
Page 11: Additional Information
Additional information: Declaration of Conformity (CE) HL-4GXV-F has been tested and found to comply with the stated standards which are required by the Council Directive of 2014/30/EU. The device complies with this CE Declaration when the installation is done in accordance with the instruction and documentation. - Page 12 Quick Installation Guide Recycling This product bears selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according to European directive 2012/19/EU order recycled dismantled. This will minimize the negative effects on the environment and human health resulting from the possibility of the presence in equipment substances,...
