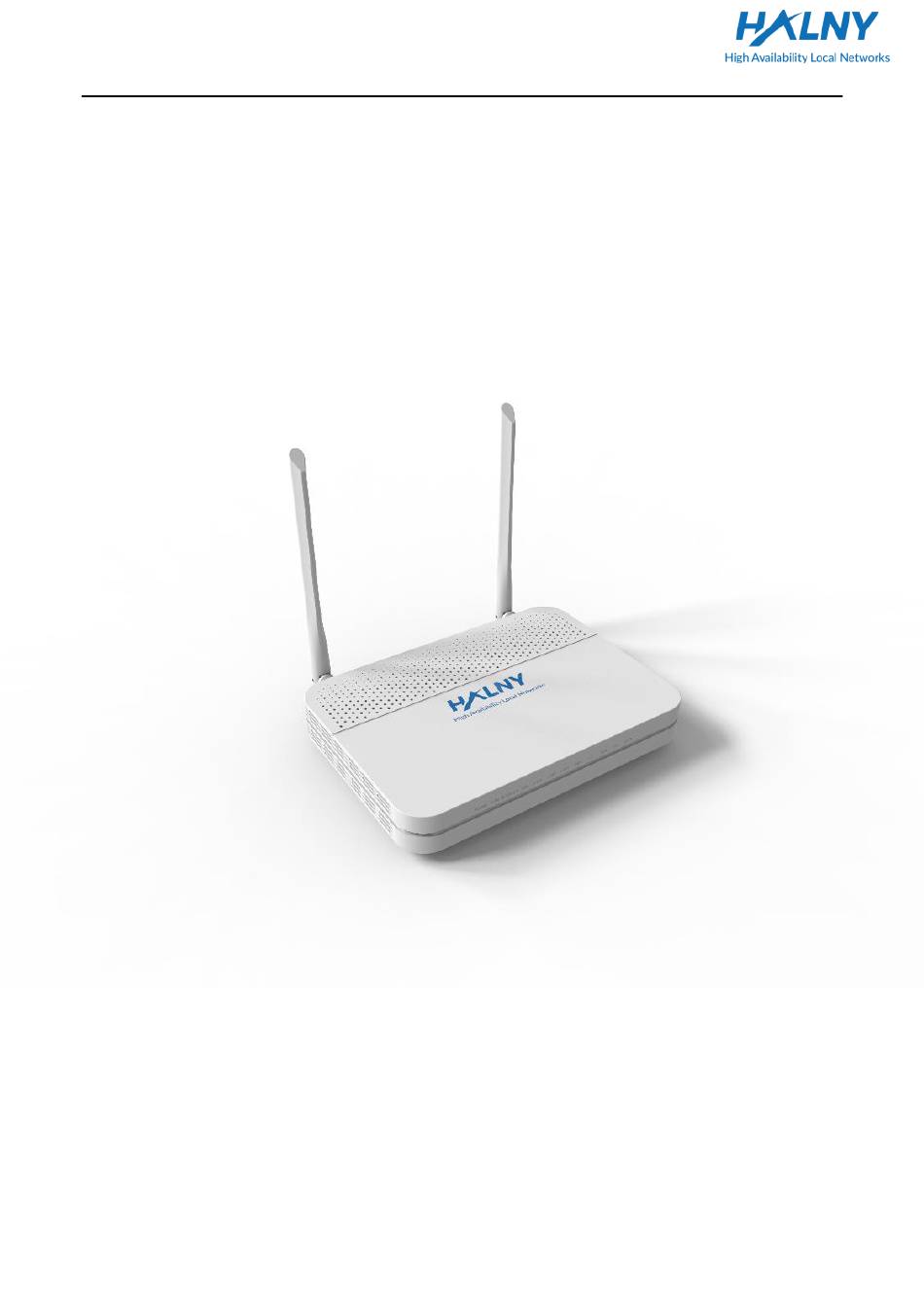

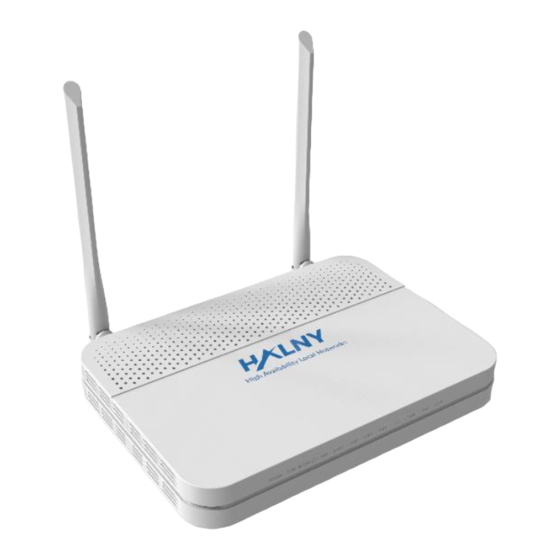

HALNy HL-4GMVR Quick Installation Guide
Quick Installation Guide
GPON ONT
HALNY HL-4GMVR
1
Rev1.3-20230705

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HL-4GMVR and is the answer not in the manual?

Questions and answers

Summary of Contents for HALNy HL-4GMVR

  • Page 1 HALNy HL-4GMVR Quick Installation Guide Quick Installation Guide GPON ONT HALNY HL-4GMVR Rev1.3-20230705...
  • Page 2: Safety Guidance

    HALNy HL-4GMVR Quick Installation Guide Safety guidance 1.1 Safety check Before installing the device, you must check the following items. 1.1.1 Electric safety  Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably, ...
  • Page 3: Features And Function

    Please read the above safety guidance carefully before device use. Users should assume responsibilities for any accidents due to incompliance with the above instructions. 2 Overview This chapter mainly describes functions and the structure of the HALNy HL- 4GMVR. 2.1 Features and function ...
  • Page 4: Front Panel

    HALNy HL-4GMVR Quick Installation Guide 2.2.1 Front panel Fig. 1 - Front panel Color Status Description The power works normally. Green Powered off or the power supply is abnormal. Refer to Table 4: “PON LED status instruction”. Green Refer to Table 4: “PON LED status instruction”.
  • Page 5: Rear Panel

    HALNy HL-4GMVR Quick Installation Guide Kolor Status Opis Got WAN IP address successfully. Green Blink Connecting with controller. Device in bridged mode or no IP. Table 2.ONU LED indication table for Easy Mesh agent mode Kolor Status Opis The connection of Ethernet interface is normal.
  • Page 6: Side Panel

    HALNy HL-4GMVR Quick Installation Guide ONU rear panel description: Interface / Function Button Ethernet interface, for connecting to a computer or an Ethernet LAN1-4 interface of a switch. Power Connect power cable . ON/OFF Turn on/off the power supply. TEL1 RJ-11 telephone port.
  • Page 7: Installation Preparations

    HALNy HL-4GMVR Quick Installation Guide 3 ONU installation The chapter describes the required installation operations before you use the device for the first time. 3.1 Product networking application - FTTH Fiber to the Home (FTTH) means to install the ONU to residences or enterprise buildings.
  • Page 8: Connecting The Network Cable

    Step 1 Use the one end of the network cable to connect the Ethernet interface of the computer. Step 2 Use other end of a network cable to connect the Ethernet interface on the rear panel of the HALNy HL-4GMVR. 3.3.2 Connecting the fiber Caution ...
  • Page 9: Troubleshooting

    HALNy HL-4GMVR Quick Installation Guide 3.3.3 Connecting the power adapter and power cord  Connect the output end of the power adapter included in the device package to the input end of the power supply of the ONU,  insert one end of the power cord attached with the device into the input end of the power adapter.
  • Page 10: Technical Specification

    HALNy HL-4GMVR Quick Installation Guide 5 Technical specification Main technical specifications Standard GPON Standard ITU-T G.984, TR156/TR255 Uplink 1.25Gbps Rate Downlink 2.5Gbps Optical interface SC/APC, Single Mode RJ-45 10/100/1000Mbps MDI/MDIX Self 4 LAN ports adaption Interface 1 POTS port RJ-11 FXS WiFi 2.4Ghz...
  • Page 11: Additional Information

    36-062 Zaczernie 190F (POLAND) info@fibrain.pl FCC ID: 2AWIZHL4GMVR Information furnished by HALNy Networks is believed to be accurate and reliable. However, no responsibility is assumed by importer for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
  • Page 12 HALNy HL-4GMVR Quick Installation Guide Recycling This product bears selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according to European directive 2012/19/EU order recycled dismantled. This will minimize the negative...
