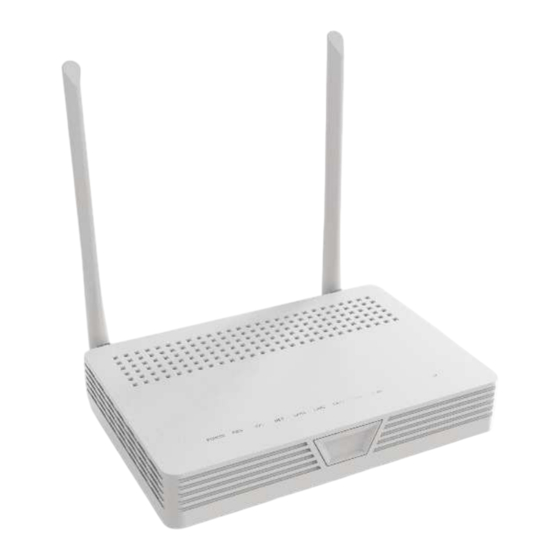

HALNy HL-4GMV2 Quick Installation Guide
Quick Installation Guide
GPON ONT
HALNY HL-4GMV2
1
Rev1.8-20241206

Advertisement

loading
Need help?

Need help?

Do you have a question about the HL-4GMV2 and is the answer not in the manual?

Questions and answers

Summary of Contents for HALNy HL-4GMV2

  • Page 1 HALNy HL-4GMV2 Quick Installation Guide Quick Installation Guide GPON ONT HALNY HL-4GMV2 Rev1.8-20241206...
  • Page 2 HALNy HL-4GMV2 Quick Installation Guide Safety guidance 1.1 Safety check Before installing the device, you must check the following items. 1.1.1 Electric safety  Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably, ...
  • Page 3 Users should assume responsibilities for any accidents due to incompliance with the above instructions. 2 Overview This chapter mainly describes functions and the structure of the HALNy. 2.1 Features and function  Fast rate. Support up to 1.25Gbps uplink and 2.5Gbps downlink data transmission rates, ...
  • Page 4 HALNy HL-4GMV2 Quick Installation Guide 2.2.1 Front panel Fig. 1 - Front panel Color Status Description The power works normally. Green Powered off or the power supply is abnormal. Refer to Table 4: “PON LED Status Instruction”. Green Refer to Table 4: “PON LED Status Instruction”.
  • Page 5 HALNy HL-4GMV2 Quick Installation Guide Color Status Description Got WAN IP address successfully. Green Blink Connecting with controller. Device in bridged mode or no IP. Table 2.ONU LED indication table for Easy Mesh controller mode Color Status Description The connection of Ethernet interface is normal.
  • Page 6 HALNy HL-4GMV2 Quick Installation Guide ONU rear panel description: Interface / Function Button Ethernet interface, for connecting to a computer or an Ethernet interface of a switch. LAN4 - EWAN - WAN interface when ONT LAN1-4 works as Ethernet router, not ONT.
  • Page 7 HALNy HL-4GMV2 Quick Installation Guide 3 ONU installation The chapter describes the required installation operations before you use the device for the first time. 3.1 Product networking application - FTTH Fiber to the Home (FTTH) means to install the ONU to residences or enterprise buildings.
  • Page 8 HALNy HL-4GMV2 Quick Installation Guide 3.3 Connecting ONU 3.3.1 Connecting the network cable Step 1 Use the one end of the network cable to connect the Ethernet interface of the computer. Step 2 Use other end of a network cable to connect the Ethernet interface on the rear panel of the HALNy.
  • Page 9 HALNy HL-4GMV2 Quick Installation Guide 3.2.3 Connecting the power adapter and power cord  Connect the output end of the power adapter included in the device package to the input end of the power supply of the ONU,  insert one end of the power cord attached with the device into the input end of the power adapter.
  • Page 10 HALNy HL-4GMV2 Quick Installation Guide 5 Technical specification Main technical specifications Standard GPON Standard ITU-T G.984, TR156/TR255 Uplink 1.25Gbps Rate Downlink 2.5Gbps Optical interface SC/APC, Single Mode RJ-45 10/100/1000Mbps MDI/MDIX Self 4 LAN ports adaption Interface 2 POTS port RJ-11 FXS WiFi 2.4Ghz...
  • Page 11 BDO: 000007477 FCC ID: 2AWIZHL4GMV2 Information furnished by HALNy Networks is believed to be accurate and reliable. However, no responsibility is assumed by importer for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
  • Page 12 HALNy HL-4GMV2 Quick Installation Guide Recycling This product bears selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according to European directive 2012/19/EU order recycled dismantled. This will minimize the negative...
