Summary of Contents for HALNy HLE-3GX-F

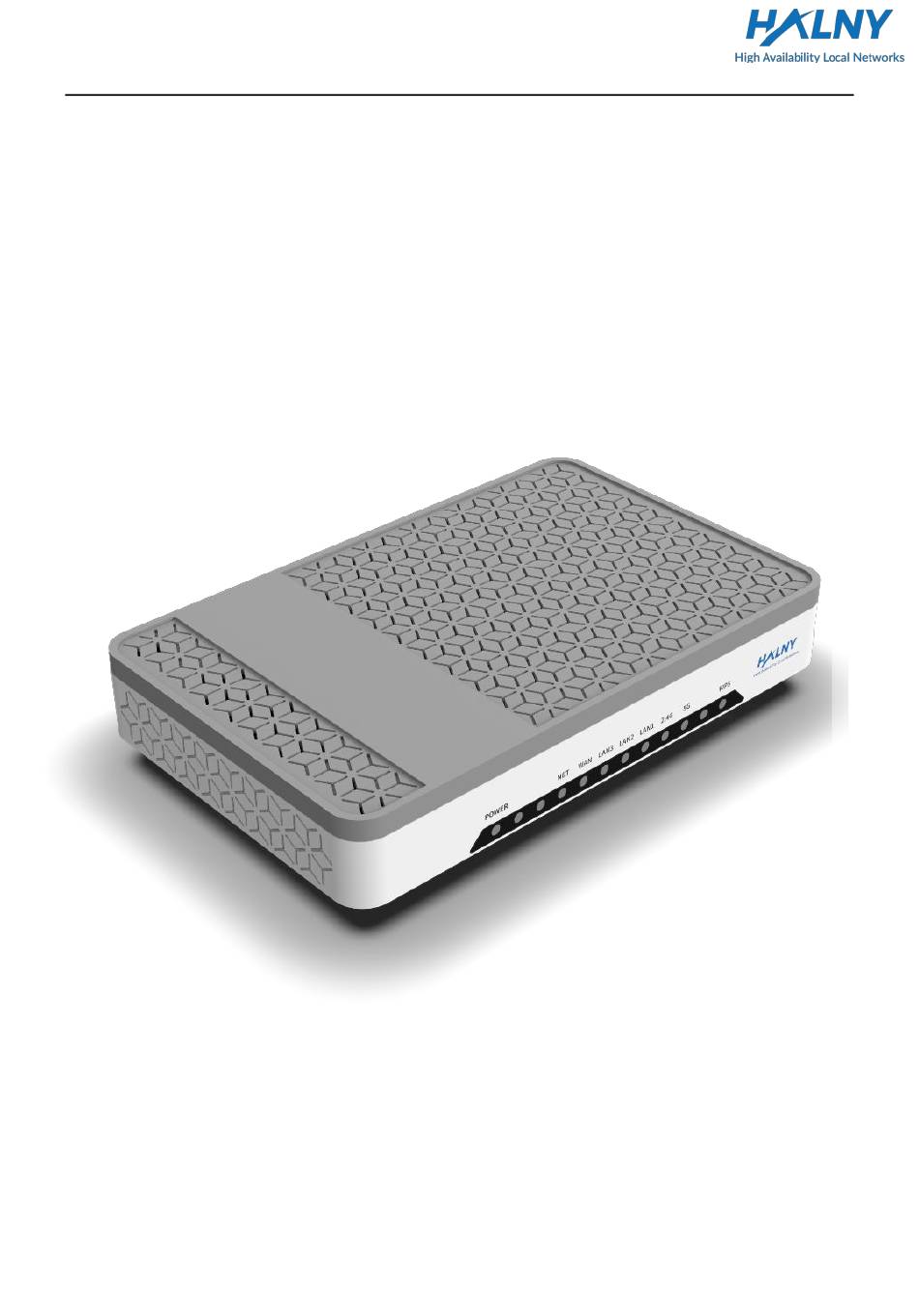

- Page 1 Quick Installation Guide Quick Installation Guide HALNy Ethernet Router HLE-3GX-F...
-
Page 2: Electric Safety
Quick Installation Guide 1 Safety guidance 1.1 Safety check Before installing the device, you must check the following items. 1.1.1 Electric safety ⚫ Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably, ⚫... -
Page 3: Features And Function
Quick Installation Guide ⚫ keep the ventilation hole clean and prevent any object from dropping into the device through it. Otherwise, it may cause short circuit and further cause device damage or fire. Do not spray liquid on the surface of the device, ⚫... -
Page 4: Front Panel
Quick Installation Guide 2.1 Front panel Fig1. Front panel On the front panel a row of LEDs is placed. Those LEDs allows you to easily check the status of the device and it’s interfaces. Kolor Status Opis Power is ON. POWER Green Power is OFF / Faulty PSU. -
Page 5: Rear Panel
Quick Installation Guide Kolor Status Opis The connection of Ethernet interface is normal. 2.4G Blink Initialization of adding a agent. The connection of the Ethernet interface fails to establish. The connection of Ethernet interface is normal. Green Blink Initialization of adding a agent. The connection of the Ethernet interface fails to establish. -
Page 6: Router Installation
Quick Installation Guide 3 Router installation The chapter describes the required installation operations before you use the device for the first time. Connecting router 3.1.1 Wiring connection and power on Connect modem/router or Ethernet cable from your ISP to WAN port You can connect an Ethernet devices to LAN1 …... -
Page 7: Troubleshooting
Quick Installation Guide 4 Troubleshooting Symptom Solution Check whether the PSU connection is correct, POWER LED is off check if PSU is working properly, check if POWER button is in ON position. Check whether the Ethernet cable is OK, ... -
Page 8: Technical Specification
Quick Installation Guide 5 Technical specification Main technical specifications Standard Ethernet 10/100/1000Mbps Uplink 1Gbps Throughput Downlink 1Gbps 1 WAN port RJ-45 10/100/1000Mbps auto-MDI/MDIX 4 LAN ports RJ-45 10/100/1000Mbps auto-MDI/MDIX Interface WiFi 2.4Ghz 802.11n/ax (2T2R MIMO) 576Mbps WiFi 5Ghz 802.11ac/ax (2T2R MIMO) 1201Mbps Physical characteristics and environment requirements Power adapter input 100V～240V AC，50Hz～60Hz... -
Page 9: Additional Information
FCC ID: 2AWIZHL4GXVF Information furnished by HALNy Networks is believed to be accurate and reliable. However, no responsibility is assumed by importer for its use, nor for any infringements of patents or other rights of third parties which may result from its use. - Page 10 Quick Installation Guide Recycling This product bears selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according to European directive 2012/19/EU order recycled dismantled. This will minimize the negative effects on the environment and human health resulting from the possibility of the presence in equipment substances,...
