Summary of Contents for HALNy HL-4GQV

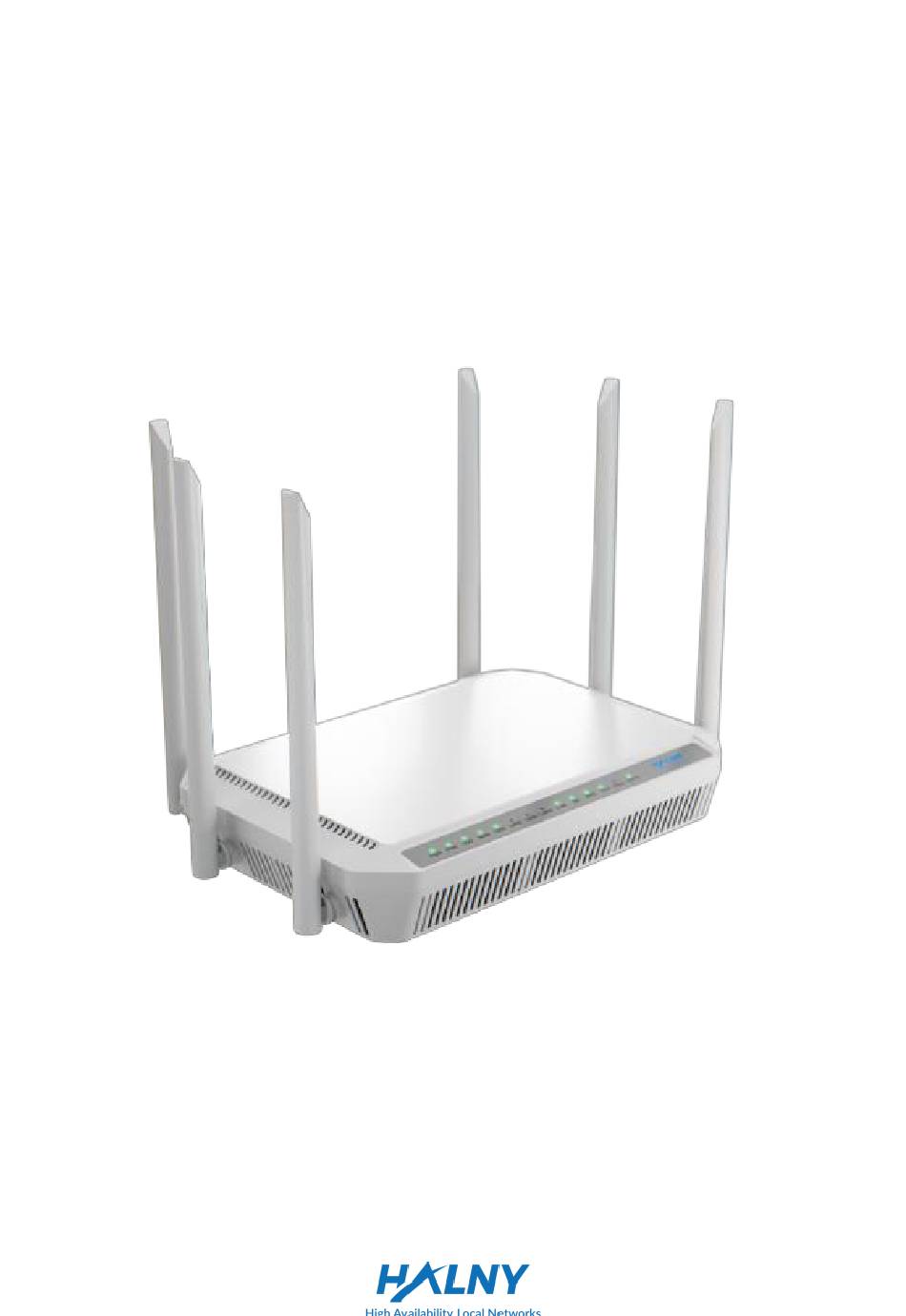

- Page 1 Quick Installation Guide GPON ONT HALNY HL-4GQV...
-
Page 2: Electric Safety
HALNy HL-4GQV Quick Installation Guide Safety Guidance 1.1 Safety Check Before installing the device, you must check the following items. 1.1.1 Electric Safety ⚫ Ensure that there are no inflammable, conductive or moist objects around. Check whether the cables are aged and whether other electrical appliances are placed stably, ⚫... -
Page 3: Features And Function
Users should assume responsibilities for any accidents due to incompliance with the above instructions. 2 Overview This chapter mainly describes functions and the structure of the HALNy HL-4GQV. 2.1 Features and Function ⚫ Fast rate. Support up to 1.25Gbps uplink and 2.5Gbps downlink data transmission rates, ⚫... -
Page 4: Front Panel
HALNy HL-4GQV Quick Installation Guide 2.2 Front, rear and side Panel The description of the front, rear and side panel of the GPON ONU as follows. 2.2.1 Front Panel Fig. 1 - Front Panel Color Status Description The power works normally. -
Page 5: Rear Panel
HALNy HL-4GQV Quick Installation Guide PON LED Status Instruction Description The ONT is disabled by the OLT Flash The ONT is registering to the OLT The ONT has already registered to OLT Flash The fiber is not connected properly PON LED Status Instruction Table 2. -
Page 6: Side Panel
HALNy HL-4GQV Quick Installation Guide 2.2.3 Side Panel Fig 3 Side Panel ONT Bottom Panel Description： Button Function Press and hold for 5 seconds to disable/enable Wi-Fi WLAN Press and hold for 5 seconds to activate WPS pairing Press and hold for 5 seconds to Reset configuration to the factory default settings. -
Page 7: Installation Preparations
Step 1 Use the one end of the network cable to connect the Ethernet interface of the computer. Step 2 Use other end of a network cable to connect the Ethernet interface on the rear panel of the HALNy HL-4GQV. 3.3.2 Connecting the Fiber... -
Page 8: Connecting The Power Adapter And Power Cord
HALNy HL-4GQV Quick Installation Guide Caution ⚫ When a fiber is not in use, ensure to cover the optical interface of the ONU and the dust cap of the optical fiber. Prevent grease, dust pollution or water immersion, which may lead to unavailable fiber and optical interface of the device. -
Page 9: Troubleshooting
HALNy HL-4GQV Quick Installation Guide 4 Troubleshooting Symptom Solution Check whether the power connection is correct, The POWER Check whether the power adapter matches the indicator is not on device. Check whether the SN of ONU matches OLT, The PON indicator is ... -
Page 10: Technical Specification
HALNy HL-4GQV Quick Installation Guide 5 Technical Specification Main Technical Specifications Standard GPON Standard ITU-T G.984.x and G.988, TR156/TR255 Uplink 1.25Gbps Rate Downlink 2.5Gbps Optical interface Single Mode RJ-45 10/100/1000Mbps MDI/MDIX Self 4 LAN ports adaption Interface 2 POTS ports RJ-11 FXS WiFi 2.4Ghz... -
Page 11: Additional Information
36-062 Zaczernie 190F (POLAND) info@fibrain.pl Information furnished by HALNy Networks is believed to be accurate and reliable. However, no responsibility is assumed by importer for its use, nor for any infringements of patents or other rights of third parties which may result from its use. - Page 12 HALNy HL-4GQV Quick Installation Guide Recycling This product bears selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled according to European directive 2012/19/EU order recycled dismantled. This will minimize the negative...
