Limit Controller Keys and Displays

Upper Display
Indicates the actual chamber
temperature, or displays the
value of the parameter in the
lower display.
Lower Display
Indicates [SAFE] during normal
operation or [FAiL] in an out of
limit condition, or the parameter
whose value appears in the
upper display.
EZ Key
Resets the limit after a
trip condition has cleared.

How to Set the High and Low Temperature Safety Limits

1. Press the ‰ key once to get the [`LL; s ] prompt in the lower display. This is the Low Limit
Set Point prompt.
2. Press the ▲or ▼ key to enter the desired Low Limit Set Point in the upper display. Make
sure it is lower than your actual chamber temperature set point, and at least below room
temperature to prevent nuisance tripping.
3. Press the ‰ key once again to get the [`lh; s ] prompt in the lower display. This is the High
Limit Set Point prompt.
4. Press the ▲or ▼ key to enter the desired High Limit Set Point in the upper display. Make
sure it is higher than your actual chamber temperature set point to prevent nuisance tripping.
5. Press the RESET Key to return to the Home Page.
6. The upper display will show the actual chamber temperature while the lower display will
show [SAFE] as long as the limits are not exceeded.

Resetting an Out of Limit Condition

If the limit is exceeded, the Limit Controller will flash [Li; h 1] (high limit) or [Li; L 1] (low
limit) in the upper display and [Attn] in the lower display, alternating with the actual chamber
temperature in the upper display and [FAiL] in the lower display. It will also shut down all
chamber functions. The Limit Controller cannot be reset until the temperature returns to within
the limit set points. Then, you must press the RESET or EZ Key to resume normal operation.

Silencing the Audible Alarm

Turning off the CONDITIONING switch on the chamber front panel lets you temporarily turn
off the Audible Alarm, even though the High or Low Limit condition may still exist.
TestEquity 3016C Temperature Chamber
Chapter 4 – Limit Controller
RESET Key
Returns to the Home Page.or
Resets the limit after a trip
condition has cleared.

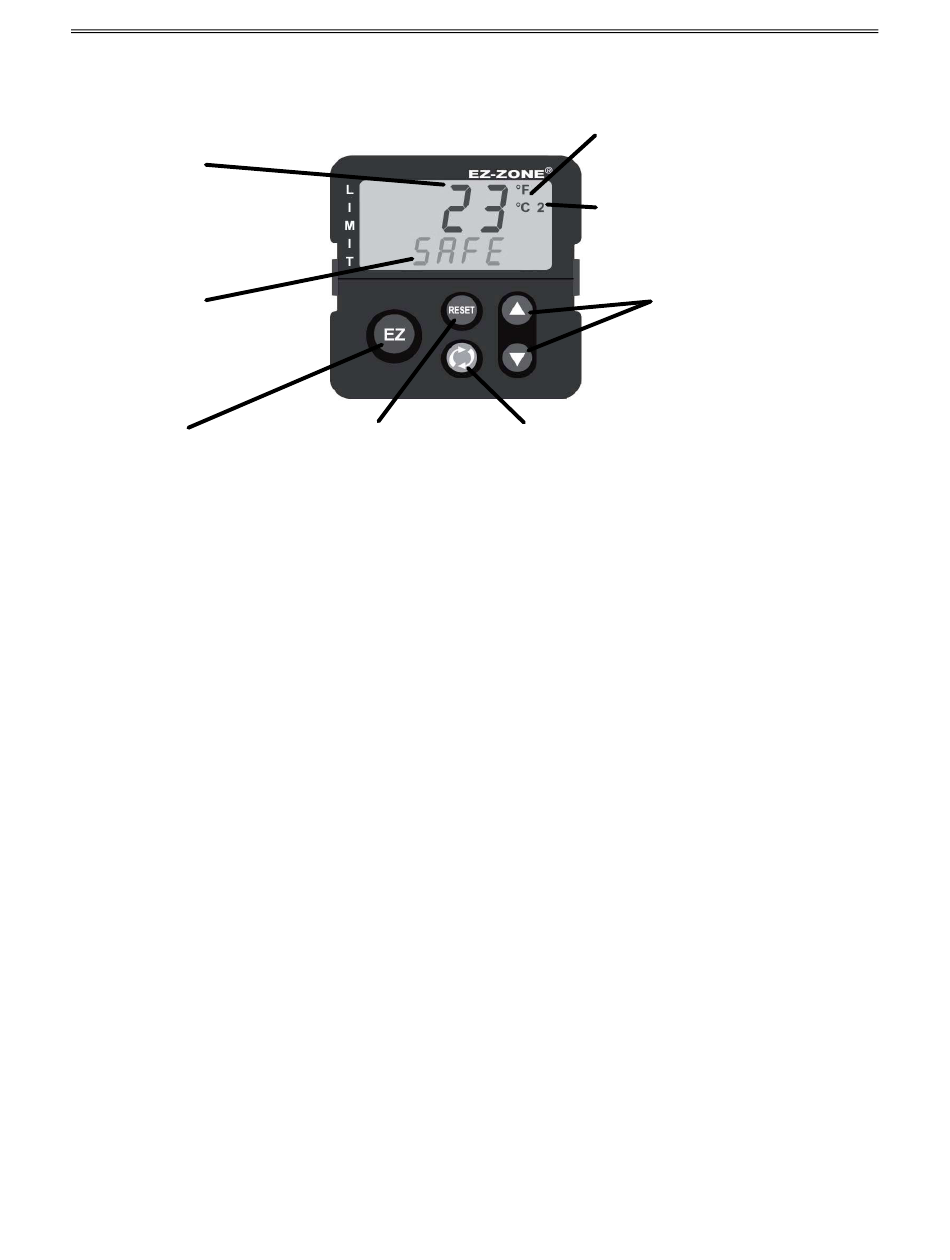

Figure 5-1 – Limit Controller Keys and Displays
Temperature Units Indicator
Indicates whether the temperature is
displayed in Fahrenheit or Celsius.
Output Indicator
Lit when the limit setting is exceeded.
Only light 2 is applicable for this
configuration.
Up/Down Keys ¿ ¯
When in a menu, scrolls
through available options for
any given prompt. In other
menus can change set points
and modify the upper display
to a higher or lower value.
Advance Key ‰
Advances through the
parameter prompts
Page 4-2
