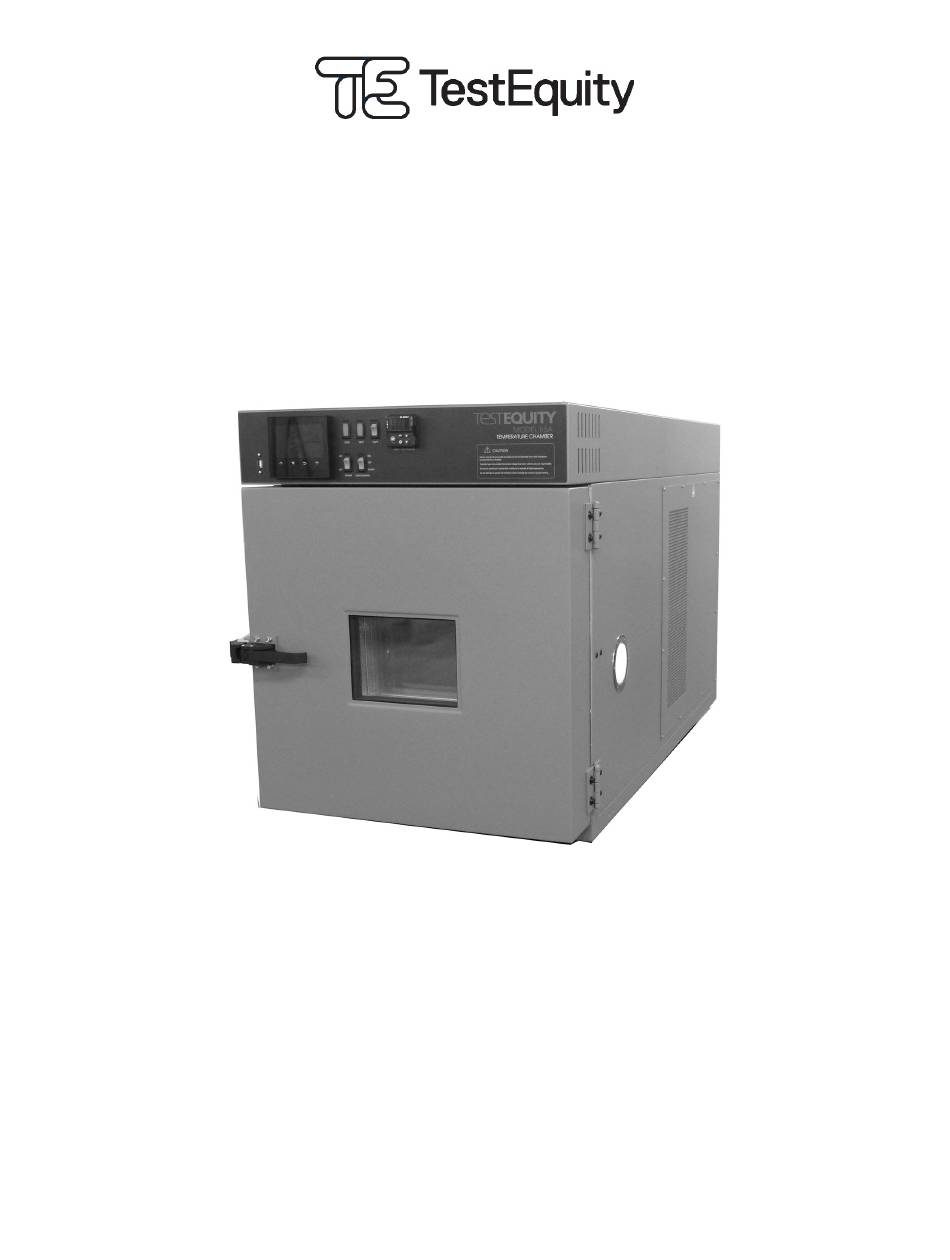

- Page 1 Model 115R Temperature Chamber Operation and Service Manual TestEquity LLC 6100 Condor Drive Moorpark, CA 93021 Support: 877-512-3457 Toll Free 805-480-0638 Corporate: 800-732-3457 805-498-9933 http://www.testequity.com Copyright © 2012-2019 TestEquity LLC Rev. 1.0 – August 21, 2019...
-
Page 3: Table Of Contents
Dry Air Installation (Option TE-0017) ______________________________________________________ 5-1 Purge Operation _______________________________________________________________________ 5-2 Adjusting the Purge Flow ________________________________________________________________ 5-2 Relief Vent ___________________________________________________________________________ 5-2 Chapter 6 – Frequently Asked Questions ________________________________________ 6-1 Chapter 7 – Specifications ____________________________________________________ 7-1 Model 115R Chamber Specifications ________________________________________________ 7-1... - Page 4 Table of Contents Chapter 8 – Maintenance _____________________________________________________ 8-1 Preventive Maintenance Intervals __________________________________________________ 8-1 Maintenance Procedures __________________________________________________________ 8-2 How to clean the chamber interior and exterior _______________________________________________ 8-2 How to listen for abnormal noise or vibration_________________________________________________ 8-2 How to inspect the door seal ______________________________________________________________ 8-2 How to clean the condenser ______________________________________________________________ 8-2 How to inspect the electrical &...
-
Page 5: Chapter 1 - Safety Instructions
! CAUTION: The Temperature Controller’s “Alarm” functions are NOT used in the chamber’s safety system and are NOT connected. TestEquity does NOT recommend using the Temperature Controller’s alarm function as the main protection device. The independent EZ-Zone Limit Controller functions as the main protection device. - Page 6 You are responsible for providing thermal protection devices to your test sample. ! CAUTION: To prevent damage to your test sample and the chamber’s compressor, do not exceed the live load rating of the chamber. Page 1-2 TestEquity 115R Temperature Chamber...
-
Page 7: Chapter 2 - Installation
Chapter 2 – Installation Chapter 2 – Installation Uncrating Inspect the shipping container for any signs of visible damage. Notify the carrier and TestEquity immediately if there are signs of shipping damage. 1. Cut the bands that hold the packaging together. -
Page 8: Installation Location
Chamber Stacking Racks Model 115R Temperature Chamber is designed to be stacked by using our specially designed racks. Model 115-2L Two Level Rack can stack two chambers high while Model 115-3L Three Level Rack can stack three chambers high. For installation instructions regarding stacking using these racks, please refer to the separate manual for each of these. -
Page 9: Chapter 3 - Operation
4. Load your test sample in the chamber. 5. Turn the CONDITIONING Switch ON. Alternatively, turn the CONDITIONING Switch to the EVENT 1 position and turn the Power button on the F4T controller or EVENT 1 on the F4 controller ON. TestEquity 115R Temperature Chamber Page 3-1... -
Page 10: Front Panel Switches And Lights
The COOL Light will illuminate when the Temperature Controller turns on the cooling valve to maintain the workspace temperature. The COOL Light will cycle on/off as the workspace temperature approaches and reaches the temperature set point. Page 3-2 TestEquity 115R Temperature Chamber... -
Page 11: Loading The Chamber
! CAUTION: To prevent damage to your test sample and the chamber’s compressor, do not exceed the live load rating of the chamber. Live Load Capacity for Model 115R Temp +23°C 0°C –40°C –55°C... -
Page 12: Performance Considerations
Make sure that all connectors, wiring, pc boards, and auxiliary components can withstand the temperature extremes that they will be subjected to. In some cases, these components may not be able to last after repeated tests and should be considered expendable. Page 3-4 TestEquity 115R Temperature Chamber... -
Page 13: Chapter 4 - Limit Controller
Not all features or functions are applicable. Only the capabilities of a model PM6L1AJ-AAAABAA are applicable. ! CAUTION: The EZ-Zone Limit Controller has been properly configured by TestEquity to match the chamber’s system requirements. Improper modifications to these setup values can result in unreliable and unsafe operation. Do not attempt to modify the setup values, unless you thoroughly understand what you are doing. -
Page 14: Limit Controller Keys And Displays
Then, you must press the RESET or EZ Key to resume normal operation. Silencing the Audible Alarm Turning off the TEMP switch on the chamber front panel lets you temporarily turn off the Audible Alarm, even though the High or Low Limit condition may still exist. Page 4-2 TestEquity 115R Temperature Chamber... -
Page 15: Chapter 5 - Purge
Compressed Air Inlet to Dry Air System. Shutoff valve on the Dry Air System is shown in the off position. Valve must be in the on position to operate. Figure 5-1 – Dry Air Purge System Installation (typical) TestEquity 115R Temperature Chamber Page 5-1... -
Page 16: Purge Operation
A suggested starting setting is 2 SCFM. Relief Vent Excess pressure in the chamber workspace is vented through a pressure-relief check-valve, which is located within the electrical compartment. There is no need to vent this externally. Page 5-2 TestEquity 115R Temperature Chamber... -
Page 17: Chapter 6 - Frequently Asked Questions
50 Hz rating of 100 V nominal (95 V min. to 110 V max.). We do make a special export version for this purpose, model 115R-EX. It has 230 V, 50 Hz compressors and an internal step-down transformer for the heater and control circuitry. - Page 18 I haven’t used the chamber for a while. Is there anything I should do to prepare it for operation? Perform ALL the steps in the Preventive Maintenance Schedule before placing the chamber back into service. This will ensure that nothing has been damaged and that a leak has not developed. Page 6-2 TestEquity 115R Temperature Chamber...
- Page 19 Can/Should I put a filter in front of the condenser air inlet? No, TestEquity does not recommend this. Just follow the maintenance procedures and clean the condenser fins periodically.
-
Page 21: Chapter 7 - Specifications
Chapter 7 – Specifications Chapter 7 – Specifications Model 115R Chamber Specifications Temperature Range –73°C to +175°C Control Tolerance ±0.2°C (Measured at the control sensor after stabilization) Uniformity ±1.0°C (Variations throughout the chamber after stabilization) Live Load Capacity @ +23°C 0°C... -
Page 23: Chapter 8 - Maintenance
• Listen for abnormal noise or vibration. Every 6 Months • Inspect the door seal. • Clean the condenser. • Inspect the electrical and refrigeration machinery compartments. • Verify the chamber performance. Every 12 Months • Verify the calibration. TestEquity 115R Temperature Chamber Page 8-1... -
Page 24: Maintenance Procedures
NOTE: You may need to clean the condenser more frequently if the chamber is in a dusty environment. You may be able to clean the condenser less frequently if the chamber is in a very clean environment. Page 8-2 TestEquity 115R Temperature Chamber... -
Page 25: How To Inspect The Electrical & Refrigeration Machinery Compartments
TestEquity recommends verifying the calibration before attempting to actually perform a calibration. The state-of-the-art instrumentation used in TestEquity chambers is of the highest quality and seldom goes out of calibration. If you try to calibrate the instrumentation before determining that calibration is necessary, you may make it worse if done incorrectly. -
Page 26: How To Verify The Chamber Performance
These tests assume that the Temperature Controller’s setup and tuning values have not been changed from the values as shipped from TestEquity. Also, the Limit Controller high limit must be set to over +85°C (+88°C would be fine), and the low limit set to –74°C. The ambient temperature must be approximately 23°C for the cool down times to be valid. -
Page 27: Theory Of Operation
The compressor takes the low pressure vapor and compresses it, increasing both the pressure and the temperature. The hot, high pressure vapor is forced out the compressor discharge valve and into the desuperheater. The finned coil TestEquity 115R Temperature Chamber Page 8-5... - Page 28 The low-stage compressor turns on 30 seconds after the high-stage turns on through Timing Module (TM1). This reduces the system’s starting current, while allowing the cascade condenser to get cool before the low-stage turns on. Page 8-6 TestEquity 115R Temperature Chamber...
-
Page 29: Troubleshooting
If compressor control parameters Solenoid valve SV2 may be in temperature controller are defective (does not completely correct. seal when cycled off). Figure 8-1 – PS2 Pressure Switch Reset Button (right side panel removed) TestEquity 115R Temperature Chamber Page 8-7... -
Page 30: Refrigeration System Charging Instructions
Do NOT substitute any component. Do NOT substitute refrigerants. Improper repairs will void the warranty. These instructions are intended as guidelines for repairing TestEquity chambers. Details such as how to attach a gauge manifold are not covered. These are NOT do-it-yourself instructions! R-404A High-Stage Charge 1. -
Page 31: Recommended Spare Parts
Chapter 8 – Maintenance Recommended Spare Parts Replacement parts are available from TestEquity. Parts are generally in-stock and ready for immediate shipment. Next-day delivery is always available. If you cannot risk being out of service for even one day, then you should purchase critical spare parts in advance. Although most parts are standard and available from a variety of local distributors, some parts are either harder to find or custom. -
Page 32: Major Electrical Parts
Door Gasket, Inner CUSTOM 300593 300593 Door Gasket, Outer CUSTOM 300594 300594 Door Latch, Chamber Workspace Southco A7-10-301-20 300216 Port Plug, Silicone Foam, 3" CUSTOM 300373 300373 Shelf CUSTOM TE-1151 TE-1151 Viewing Window CUSTOM 300691 300691 Page 8-10 TestEquity 115R Temperature Chamber... -
Page 33: Ez-Zone Limit Controller Setup Parameters
Improper modifications to these setup values can result in erratic performance and unreliable operation. Do not attempt to modify the setup values, unless you thoroughly understand what you are doing. If there is any doubt, please call TestEquity before proceeding. Setup Menu Prompt... -
Page 35: Chapter 9 - Warranty
If the repair or replacement is performed in the FIRST YEAR from the date of invoice, TestEquity will also pay for the labor associated with the repair at the Purchaser's site, subject to TestEquity’s prior approval. During the SECOND and THIRD YEAR of the warranty period, Purchaser will be responsible for the installation and cost of installation of replacement or repaired parts. -
Page 37: Chapter 10 - Drawings
Chapter 10 – Drawings...
