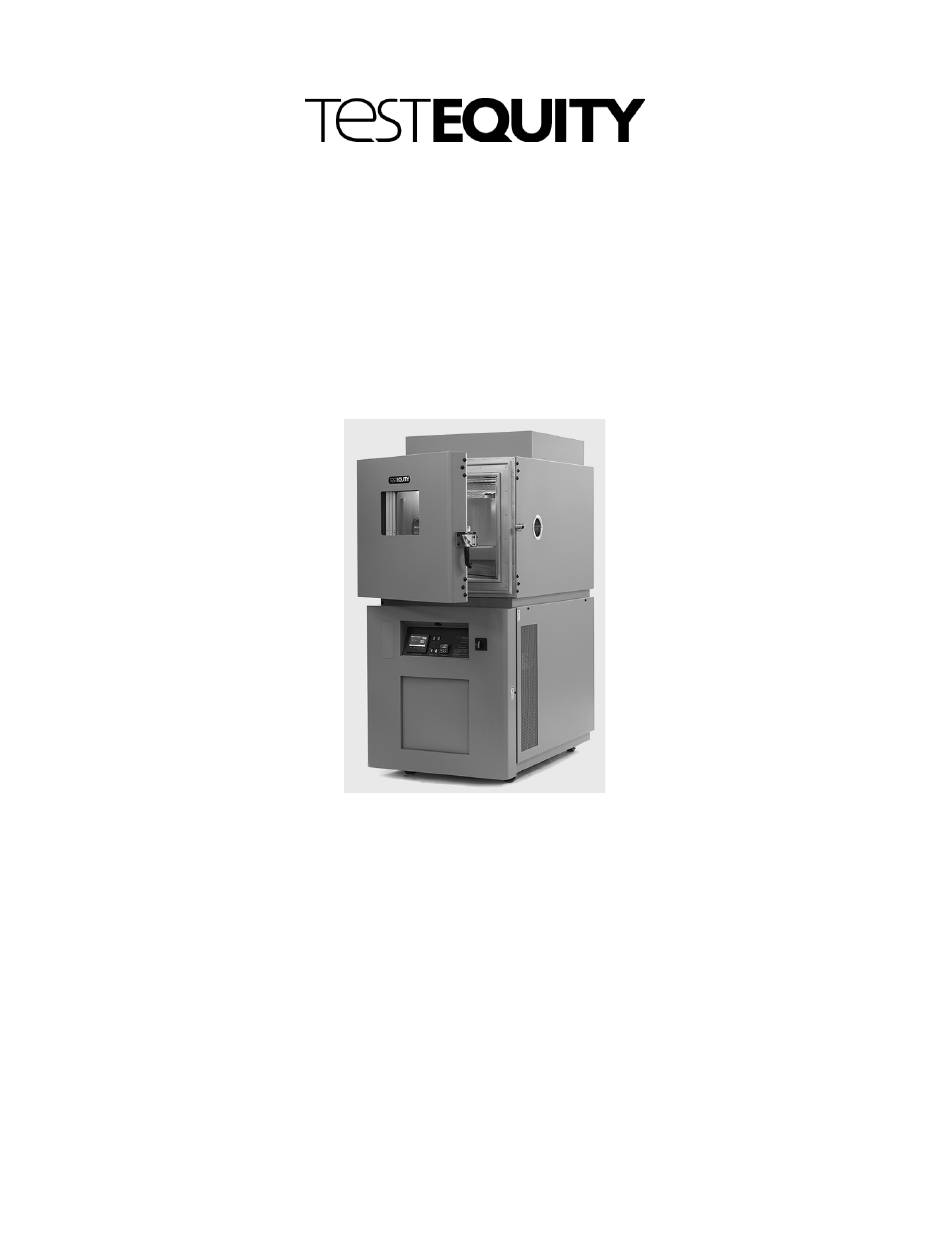

Operation and Service Manual
TestEquity LLC
6100 Condor Drive
Moorpark, CA 93021
Support:
877-512-3457 Toll Free
805-480-0638
Corporate:
800-732-3457
805-498-9933
http://www.testequity.com
Copyright © 1999-2018 TestEquity LLC
Model 1007S
Temperature Chamber
Serial Number 30511 and above
Rev. 5.1, February 1, 2018
Advertisement
Table of Contents
Related Manuals for TestEquity 1007S
Summary of Contents for TestEquity 1007S
- Page 1 Model 1007S Temperature Chamber Serial Number 30511 and above Operation and Service Manual TestEquity LLC 6100 Condor Drive Moorpark, CA 93021 Support: 877-512-3457 Toll Free 805-480-0638 Corporate: 800-732-3457 805-498-9933 http://www.testequity.com Copyright © 1999-2018 TestEquity LLC Rev. 5.1, February 1, 2018...
-
Page 3: Table Of Contents
Table of Contents Chapter 1 – Safety Instructions ________________________________________________ 1-1 Introduction ____________________________________________________________________ 1-1 Installation Safety Notices _________________________________________________________ 1-1 Operation Safety Notices __________________________________________________________ 1-2 Chapter 2 – Installation ______________________________________________________ 2-1 Uncrating _______________________________________________________________________ 2-1 Preparation For Use ______________________________________________________________ 2-1 Installation Location _____________________________________________________________ 2-2 Condensate Drain ________________________________________________________________ 2-2 Input Power Configuration ________________________________________________________ 2-3 Overview _____________________________________________________________________________ 2-3... - Page 4 Table of Contents Chapter 8 – Maintenance _____________________________________________________ 8-1 Preventive Maintenance Intervals __________________________________________________ 8-1 Maintenance Procedures __________________________________________________________ 8-2 How to clean the chamber interior and exterior. _______________________________________________ 8-2 How to listen for abnormal noise or vibration. ________________________________________________ 8-2 How to inspect the door seal. _____________________________________________________________ 8-2 How to inspect the refrigeration machinery compartment.
-
Page 5: Chapter 1 - Safety Instructions
If the input voltage configuration is changed, this label must be replaced to reflect the new configuration. Replacement labels are available from TestEquity at no charge. ! CAUTION: This chamber must be properly configured for either 208 V or 230 V nominal input. -
Page 6: Operation Safety Notices
! CAUTION: The Temperature Controller’s “Alarm” functions are NOT used in the chamber’s safety system and are NOT connected. TestEquity does NOT recommend using the Temperature Controller’s alarm function as the main protection device. The independent EZ-Zone Limit Controller functions as the main protection device. -
Page 7: Chapter 2 - Installation
Chapter 2 – Installation Uncrating Inspect the shipping container for any signs of visible damage. Notify the carrier and TestEquity immediately if there are signs of shipping damage. The pallet is designed with ramps so the chamber can be rolled off without the need for a forklift or pallet jack. -
Page 8: Installation Location
You can purchase a condensate pump from suppliers such as Grainger (www.grainger.com). Under most circumstances, you will not see any water coming out of the drain. Page 2-2 TestEquity 1007S Temperature Chamber... -
Page 9: Input Power Configuration
±10% is present. Operation below 198 V or greater than 253 V requires internal transformers, which can be supplied for a nominal charge. Ground Input Control Transformer L1 L2 Disconnect Switch Terminal Strip Figure 2-1 – Location of Input Configuration Terminals on the Electrical Sub Panel TestEquity 1007S Temperature Chamber Page 2-3... -
Page 10: Voltage Configuration
6. Connect the “Hot” input wires to terminals L1 and L2 on the Main Disconnect Switch. 7. Connect the Ground wire (NOT A NEUTRAL) to the Ground terminal. 8. Put the chamber side panel back on and close the lower door. Page 2-4 TestEquity 1007S Temperature Chamber... -
Page 11: Chapter 3 - Operation
5. Turn the CONDITIONING Switch ON. Alternatively, turn the CONDITIONING Switch to the EVENT 1 position and turn the Power button on the F4T controller ON or EVENT 1 on the F4 controller ON. TestEquity 1007S Temperature Chamber Page 3-1... -
Page 12: Front Panel Switches And Lights
The COOL Light will illuminate when the Temperature Controller turns on the cooling valve to maintain the workspace temperature. The COOL Light will cycle on/off as the workspace temperature approaches and reaches the temperature set point. Page 3-2 TestEquity 1007S Temperature Chamber... -
Page 13: Loading The Chamber
Limit Controller’s temperature limits are exceeded. ! CAUTION: To prevent damage to your test sample and the chamber’s compressors, do not exceed the live load rating of the chamber. Live Load Capacity for Model 1007S Temp +23°C 0°C –40°C... -
Page 14: Performance Considerations
Make sure that all connectors, wiring, pc boards, and auxiliary components can withstand the temperature extremes that they will be subjected to. In some cases, these components may not be able to last after repeated tests and should be considered expendable. Page 3-4 TestEquity 1007S Temperature Chamber... -
Page 15: Chamber Relief Vent
The vent body can become hot or cold depending on the workspace condition. The vent assembly has a drip pan to catch any condensate that may occur. TestEquity 1007S Temperature Chamber Page 3-5... -
Page 17: Chapter 4 - Limit Controller
Not all features or functions are applicable. Only the capabilities of a model PM6L1AJ-AAAABAA are applicable. ! CAUTION: The EZ-Zone Limit Controller has been properly configured by TestEquity to match the chamber’s system requirements. Improper modifications to these setup values can result in unreliable and unsafe operation. Do not attempt to modify the setup values, unless you thoroughly understand what you are doing. -
Page 18: Limit Controller Keys And Displays
Then, you must press the RESET or EZ Key to resume normal operation. Silencing the Audible Alarm Turning off the MASTER switch on the chamber front panel lets you temporarily turn off the Audible Alarm, even though the High or Low Limit condition may still exist. Page 4-2 TestEquity 1007S Temperature Chamber... -
Page 19: Protecting An Energized Test Sample
3. Locate the terminal strip on the electrical subpanel. Connections to the safety contacts are at terminals A1 and A2 on the terminal strip. Terminal Strip A1 A2 Figure 4-2 – Location of Safety Contact Connections on the Electrical Sub Panel TestEquity 1007S Temperature Chamber Page 4-3... -
Page 21: Chapter 5 - Purge
A suggested starting setting is 4 SCFM. Relief Vent Excess pressure in the chamber workspace is vented through a pressure-relief check-valve, which is located on the top of the chamber. There is no need to vent this externally. TestEquity 1007S Temperature Chamber Page 5-1... -
Page 23: Chapter 6 - Frequently Asked Questions
50 Hz rating of 200 V. This transformer is available from TestEquity for a reasonable cost and is easy to install in the field. Note that the cooling performance will be reduced by 17% at 50 Hz. Please call TestEquity for details on reconfiguring for 50 Hz operation. - Page 24 “How to inspect the refrigeration machinery compartment” and “How to check the refrigerant charge” before placing the chamber back into service to make sure that no damage has occurred. Page 6-2 TestEquity 1007S Temperature Chamber...
- Page 25 Can/Should I put a filter in front of the condenser air inlet? No, TestEquity does not recommend this. Just follow the maintenance procedures and clean the condenser fins periodically.
-
Page 27: Chapter 7 - Specifications
Operation at higher ambient temperatures may result in decreased cooling performance. Additional ports and shelves will also affect performance. Operation above 30°C (85°F) or below 16°C (60°F) ambient is not recommended. TestEquity 1007S Temperature Chamber Page 7-1... -
Page 29: Preventive Maintenance Intervals
• Inspect the refrigeration machinery compartment. • Check the refrigeration charge. • Verify the chamber performance. Every 6 Months • Inspect the electrical compartment. • Clean the condenser. Every 12 Months • Verify the calibration. TestEquity 1007S Temperature Chamber Page 8-1... -
Page 30: Maintenance Procedures
• If the seal is still loose on the hinge side, adjust the door hinge. The hinges have slotted holes (on the door side) to permit adjustment. Page 8-2 TestEquity 1007S Temperature Chamber... -
Page 31: How To Inspect The Refrigeration Machinery Compartment
4. If you see bubbles or it appears partially full, then this indicates that there is probably a leak. 5. When the Temperature Controller is cycling (Cool Light cycles on/off), the sightglass may appear 1/2 to 2/3 full. This is normal. TestEquity 1007S Temperature Chamber Page 8-3... -
Page 32: How To Verify The Chamber Performance
These tests assume that the Temperature Controller’s setup and tuning values have not been changed from the values as shipped from TestEquity. Also, the Limit Controller high limit must be set to over +85°C (+88°C would be fine), and the low limit set to –75°C. -
Page 33: How To Inspect The Electrical Compartment
TestEquity recommends verifying the calibration before attempting to actually perform a calibration. The state-of-the-art instrumentation used in TestEquity chambers is of the highest quality and seldom goes out of calibration. If you try to calibrate the instrumentation before determining that calibration is necessary, you may make it worse if done incorrectly. - Page 34 For the F4T Controller: If calibration of the temperature controller is necessary, refer to the “F4T Touch Screen Controller User’s Guide”. For the F4 Controller: If calibration of the temperature controller is necessary, refer to the “F4 Temperature Controller User’s Manual”. Page 8-6 TestEquity 1007S Temperature Chamber...
-
Page 35: Theory Of Operation
As the high pressure vapor passes through the condenser, it is cooled by a fan, which blows ambient air across the finned condenser surface. The vapor condenses into a liquid and the cycle is repeated. TestEquity 1007S Temperature Chamber Page 8-7... - Page 36 The compressor has a crankcase heater to prevent refrigerant from condensing in the oil when the compressor is off. The temperature controller has internal logic to turn the compressor on if cooling is required to maintain the temperature set point. Page 8-8 TestEquity 1007S Temperature Chamber...
-
Page 37: Troubleshooting
Pressure switch DPS1 trips. Trips immediately after turn on. Low charge (leak). Trips after operating for a Ambient temperature may be while. too high (over 90°F). Dirty condenser, inadequate clearance from back of chamber to the wall. TestEquity 1007S Temperature Chamber Page 8-9... - Page 38 Chamber has been off for Crankcase heater defective several hours or more, and is (open). connected to source of power and main disconnect switch is on during that time. Page 8-10 TestEquity 1007S Temperature Chamber...
-
Page 39: Refrigeration System Charging Instructions
These are NOT do-it-yourself instructions! R-404A Charge TestEquity does NOT recommend charging the system by relying on a clear sight glass only. Although a clear sight glass generally means the system is fully charged, it can be misleading. -
Page 40: Recommended Spare Parts
Chapter 8 – Maintenance Recommended Spare Parts Replacement parts are available from TestEquity. Parts are generally in-stock and ready for immediate shipment. Next-day delivery is always available. If you cannot risk being out of service for even one day, then you should purchase critical spare parts in advance. Although most parts are standard and available from a variety of local distributors, some parts are either harder to find or custom. -
Page 41: Major Electrical Parts
Sight Glass Danfoss 140-0143 100081 Gauge, 30" x 200 PSIG Compound Miljoco CUSTOM 100494 Gauge, 0 x 400 PSIG Pressure Miljoco CUSTOM 100495 Crankcase Heater, 45 W, 120 V Copeland 018-0038-00 18 (CC1) 100030 TestEquity 1007S Temperature Chamber Page 8-13... -
Page 42: General Parts
CUSTOM 300541 Door Latch, Chamber Workspace Southco A2-10-501-21 300009 Caster, Swivel RollMaster 35-15-11 300011 Caster, Rigid RollMaster 35-16-11 300012 Shelf with 4 Clips CUSTOM CUSTOM TE-0701 Shelf Retainer Clip Kason Style 66, #0066000008 300015 Page 8-14 TestEquity 1007S Temperature Chamber... -
Page 43: Ez-Zone Limit Controller Setup Parameters
Improper modifications to these setup values can result in erratic performance and unreliable operation. Do not attempt to modify the setup values, unless you thoroughly understand what you are doing. If there is any doubt, please call TestEquity before proceeding. Setup Menu Prompt... -
Page 45: Chapter 9 - Warranty
If the repair or replacement is performed in the FIRST YEAR from the date of invoice, TestEquity will also pay for the labor associated with the repair at the Purchaser’s site, subject to TestEquity’s prior approval. During the SECOND and THIRD YEAR of the warranty period, Purchaser will be responsible for the installation and cost of installation of replacement or repaired parts. -
Page 47: Chapter 10 - Drawings
Chapter 10 – Drawings Chapter 10 – Drawings TestEquity 1007S Temperature Chamber Page 10-1... - Page 49 Electrical Subpanel Component Location Ground FNM-3 FNQ-R-15 LP-CC-R-15 Input F1 F2 F3 F4 F5 F6 Control Transformer L1 L2 SSR1 Disconnect Switch FNM-3 T1 T2 SSR2 Terminal Strip A1 A2...
