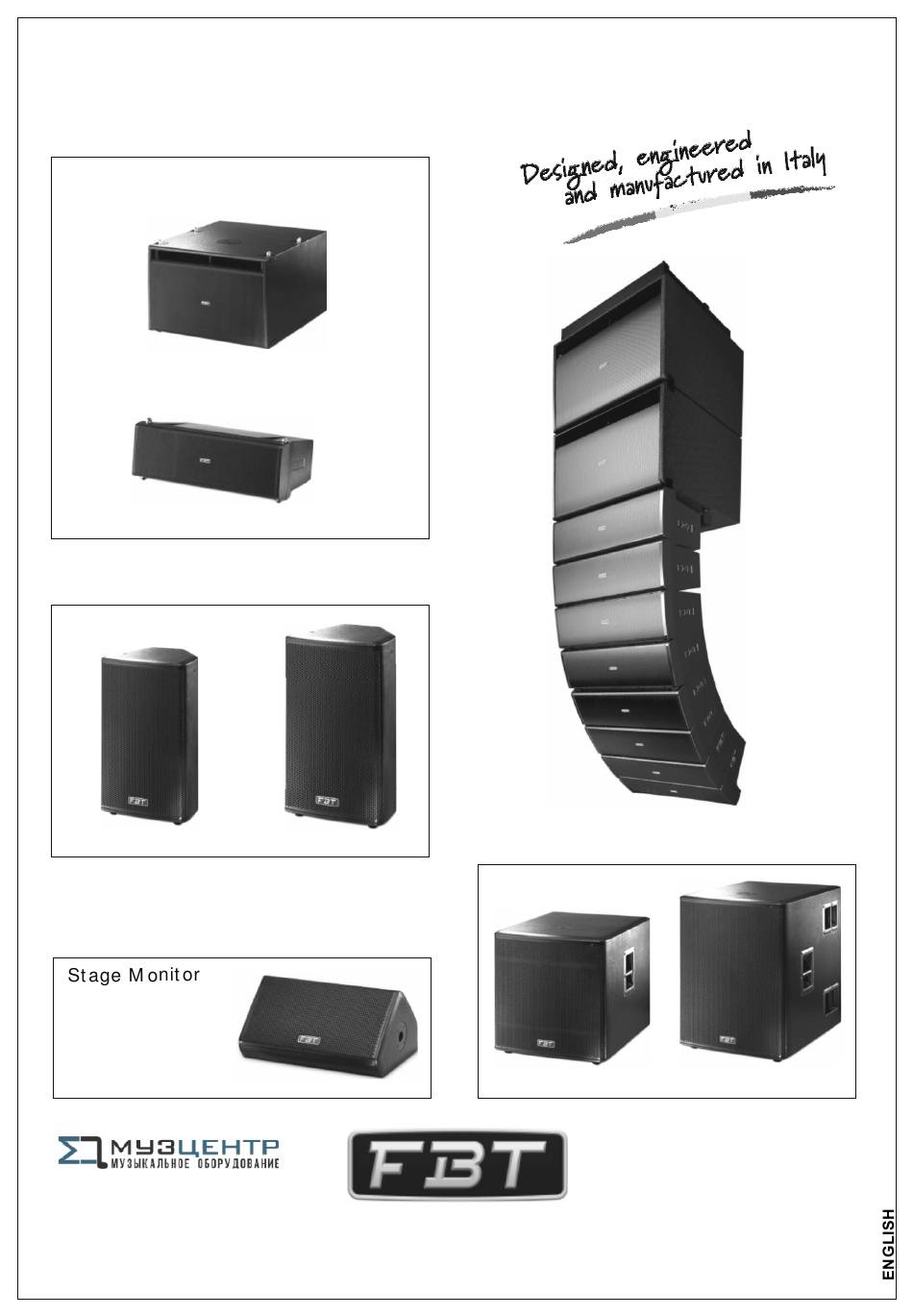

MITUS
Line Array System
212FSA / 212FS
206LA / 206L
Speakers
112A / 112
210MA / 210M
https://muzcentre.ru
FBT Elettronica s.p.a. -
Tel. 071 750591 - Fax 071 7505920 - e.mail: info@fbt.it - www.fbt.it
115A / 115
Via Paolo Soprani 1-
Zona Ind.le Squartabue - 62019 RECANATI - ITALY
Sound Reinforcement
Speaker Series
Subwoofers
118SA / 118S
121SA / 121S

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mitus 212FSA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fbt Mitus 212FSA

Summary of Contents for Fbt Mitus 212FSA

  • Page 1 115A / 115 Subwoofers 118SA / 118S 121SA / 121S 210MA / 210M https://muzcentre.ru FBT Elettronica s.p.a. - Via Paolo Soprani 1- Zona Ind.le Squartabue - 62019 RECANATI - ITALY Tel. 071 750591 - Fax 071 7505920 - e.mail: info@fbt.it - www.fbt.it...
  • Page 2 INDEX A A TTENTION-PRECAUTIONS INTRODUCTION AMPLIFIER MODULE 3-4-5 GENERAL FEATURES 206LA / 206L 212FSA / 212FS 210MA / 210M 112A / 112 115A / 115 121SA / 121S 118SA / 118S 6-7-8-9-11 CONTROLS AND FUNCTIONS 206LA / 206L 212FSA / 212FS 210MA / 210M 112A / 115A - 112A / 115 121SA / 118SA - 121S / 118S...

  • Page 3: Important Safety Instructions Important Safety Instructions

    WARNING WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE WHERE MARKED, THIS SYMBOL INDICATES A DANGEROUS NON- ISOLATED VOLTAGE INSIDE THE LOUDSPEAKER:...

  • Page 4: Amplifier Module

    MITUS 206LA is a great result of the mechanical and electronic engineering of FBT. Through use of the FBT aiming software program for PCs it is possible to simulate the SPL distribution and frequency response of the listening.

  • Page 5: General Features

    GENERAL FEATURES 206LA 206L 2 way compact line array system: > 2x6.5" B&C neodymium woofers with 1.7" coil > 1.4" exit B&C neodymium driver with 2.5" coil > Frequency response from 68Hz to 20kHz > Latest class D built in amplifiers, 600W RMS to the LF and 300W RMS to the HF with switch mode power supply >...
  • Page 6 > 5/8" birch plywood enclosure, scratch resistant black paint finish > 12 x M10 fly points, 1.38" speaker stand socket and two FBT design aluminum handles > Ideal for live sound reinforcement applications as both front of house main PA and as a stage monitor >...
  • Page 7 > Control panel with XLR input e link, volume preset, delay, phase 0°-180°, ground lift. > 3/4" birch plywood enclosure with large reflex vent free from turbulence, scratch resistant black paint > M20 stand socket and six FBT design aluminum handles > 4 swivel-mount casters 3.15" (optional) >...

  • Page 8: Controls And Functions

    CONTROLS AND FUNCTIONS 206LA PRESET: Selects 8 presets, each of whom corresponds to a specific speaker configuration according to users' personal preferences and to the acoustics of the listening area (see PRESET section.) HF LEVEL: Adjusts the volume of the driver and of one waveguide to be used in a range between -5dB and +5dB. With this level, the upper array modules can be set to obtain greater HF output power, thus reaching distant areas, and to attenuate the lower modules for a lower SPL towards the first rows of the venue;...
  • Page 9 Never other accessories when assembling cabinets than the ones provided by FBT: FBT will decline responsibility over the entire MITUS accessories range if any component is purchased from a different supplier. DELAY: Control of a digital delay line acting on the input signal; in this way it is possible to make up for the vertical misalignment of sub and satellite.
  • Page 10 IN-LINK: Balanced input/output sockets; “IN” allows to connect a pre-amplified signal such as that coming, for instance, from mixer output. “LINK” allows to connect multiple speakers to the same signal. 210M Sound Reinforcement Stage Monitor 210M TECHNICAL SPECIFICATIONS FBT elettronica spa - RECANATI (MC) MADE IN ITALY Nominal Impedance : 8 Ohm Recommended Amplifier 800 W RMS...
  • Page 11 SLEEVE PIN 1- 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 FBT elettronica spa - RECANATI (MC) MADE IN ITALY FBT elettronica spa - RECANATI (MC) MADE IN ITALY *SPEAKON is a registered trademark of NEUTRIK...

  • Page 12: Rotatable Horn

    ROTATABLE HORN 112 / 112A 115 / 115A MITUS 112 and MITUS 115 models have an asymmetrical dispersion rotatable horn. By removing the fixing screws of the horn it is possible to rotate it so as to change the dispersion angle when the speakers are used in horizontal position or when they are aligned in an array.
  • Page 13 SLEEVE PIN 1- 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 FBT elettronica spa - RECANATI (MC) MADE IN ITALY FBT elettronica spa - RECANATI (MC) MADE IN ITALY *SPEAKON is a registered trademark of NEUTRIK...
  • Page 14 80-120Hz range. -HUNG with INFRA: The system is composed of two different SUBs, MITUS 212FSA flown over MITUS 206LA and MITUS 118SA or MITUS 121SA laid on the ground. This type of system is the most complete and suitable to reproduce sound in great events and over huge areas, most of all outdoor, since it permits obtaining a more even distribution of low frequency energy over the whole listening area.
  • Page 15 - The system is composed of two different SUBs, MITUS 212/FSA and MITUS 118SA or MITUS 121SA, all laid on the ground. This type of system is recommended when you want to use all the SUBs available in order to increase the SPL but the MITUS 212FSA cannot be flown.

  • Page 16: Cardioid Configurations

    CARDIOID CONFIGURATIONS The lack of directivity at low frequencies is a problem affecting many sound reinforcement systems; this directivity can be controlled by lining up an array of direct radiation subwoofers according to patterns that concentrate diffused energy in one or more directions. As for all frequency ranges, the sum of the energy of two subwoofers can lead to both 6db sums and complete cancelling (when the sound waves are 180°...
  • Page 17 CONNECTORS The 3-pole XLR connectors are almost always used for conducting mono-balanced signals; the three poles correspond respectively to ground (1), the positive signal (2) and the negative signal (3). SPEAKON is a connector which is specially adapted for connecting power terminals to loudspeakers; when inserted in an appropriate socket it locks so as to prevent accidental disconnection;...
  • Page 18 MAX. 16A MAX. 20A...
  • Page 19 CORD TYPE SJT3 x 14 VW1 MAX. 18A CORD TYPE SJT3 x 14 VW1...

  • Page 21: Usage Examples

    USAGE EXAMPLES 4 x MITUS 206LA + 2 x MITUS 118SA 4000W continuous power 136dB @1mt 110dB @22mt 250mq. with 750 people LEFT RIGHT 2 x MITUS 206LA 2 x MITUS 206LA 400W + 200W 400W + 200W LINK LINK 400W + 200W 400W + 200W LINK...

  • Page 22: Biamp Configuration

    BIAMP CONFIGURATION 4 x MITUS 206L + 2 x MITUS 118S The Bi-amp system requires a stereo amplifier; basically it is possible to connect the tweeter cables to one of the channels of the main amplifier and the woofer cables to the other one, 2+ 2- thus guaranteeing high sound fidelity, higher dynamism and a significant SPL increase.

  • Page 23: Connection Example

    NO PASSIVE CROSSOVER INSIDE; AN EXTERNAL DIGITAL PROCESSOR IS REQUIRED FOR OPTIMUM PERFORMANCE AND WOOFER SAFETY. PLEASE REFER TO OWNER!S MANUAL FOR SETTINGS. SPLITTER (SUB) 1 2 3 4 5 6 7 8 9 FBT elettronica spa - RECANATI (MC) MADE IN ITALY MITUS 118S...
  • Page 24 USAGE EXAMPLES 8 x MITUS 206LA + 4 x MITUS 118SA 8000W continuous power 142dB @1mt 110dB @44mt 950mq. with 2800 people LEFT RIGHT 4 x MITUS 206LA 4 x MITUS 206LA 400W + 200W 400W + 200W LINK LINK 400W + 200W 400W + 200W LINK...
  • Page 25 4 x MITUS 212 FSA + 24 x MITUS 206LA + 4 x MITUS 121SA + 8 x MITUS 118SA LEFT CHANNEL 27200W continuous power 149dB @1mt 111dB @80mt MITUS 212FSA 3500mq. with 10500 people 800W PRESET HUNG or HUNG PUNCH LINK...
  • Page 26 DIMENSIONS 206L / LA 383 mm/15.1 inch 574 mm/22.6 inch 510 mm/20 inch 212FS / FSA 660 mm/26 inch 574 mm/22.6 inch...
  • Page 27 DIMENSIONS 20° 112 / 112A 50° BOTTOM 380 mm/15 inch 380 mm/15 inch 51 mm 2 inch FRONT SIDE REAR 51 mm 2 inch ANCHORING POINT FOR ONLY ONE SPEAKER SUSPENDED 260 mm/10.23 inch 20° 115 / 115A BOTTOM 425 mm/16.7 inch 421 mm/16.6 inch FRONT SIDE...
  • Page 28 DIMENSIONS 210MA / M 121SA / 121S 590 mm/23.2 inch ONLY FOR GROUND STACK CONFIGURATION 760 mm/29.9 inch BOTTOM 580 mm/22.8 inch 574 mm/22.6 inch FRONT SIDE REAR 482 mm/18.9 inch 400 mm/15.8 inch 574 mm/22.6 inch BOTTOM 730 mm/28.7 inch 565 mm/22.2 inch FRONT SIDE...

  • Page 29: Recommended Configurations

    When low frequencies have to be extended, the MITUS 212FSA subwoofer perfectly complements the MITUS 206. Compact and capable of a very high SPL, in relation to the size, it features two 320mm custom made neodymium magnet B&C woofers with band-pass configuration.
  • Page 30 ACCESSORIES MITUS models feature a suspension system embedded in the bearing structure. The only elements to be added (accessories) to realize complete arrays are: the MT F212 flybar for the configuration with subwoofer on top and the MT J206 joint bar between sub and satellite; the MT F206 flybar for configuration with satellites; the MT B206 metal base to ground satellites or to stack over the sub;...
  • Page 31 HOW TO ASSEMBLE THE SYSTEM IN A VERTICAL ARRAY ( 206LA/L - 212FSA/FS ) The configurations suggested by this manual were verified through computer modelling and operational testing; even in recommended configurations, before hanging any MITUS system check the relevant load limits. Special attention was paid to the selection of materials and the manufacturing so as to permit high safety levels.

  • Page 32: Ease Focus

    This check shall be carried out by the person responsible for the flying structure. FBT accepts no responsibility for any damage to people or objects if these instructions are not complied with or if the safety factor of all elements related to system suspension are not properly checked.
  • Page 33 CONNECTION BAR...
  • Page 37 ASSEMBLY OF THE MT-A206 SAFETY BAR MOUNT THIS ACCESSORY ON THE LAST SPEAKER HOOKED IN ORDER TO SECURE THE WHOLE SYSTEM BY MEANS OF ROPES AND PREVENT IT FROM ROTATING AND OSCILLATING. MT-A206...

  • Page 38: Technical Specifications

    All speakers are tested with a 6dB crest factor, where the ratio between the average voltage and the pulse voltage supplied to the system exceeds or equals 2; FBT recommends using an amplifier with an RMS power that doubles the long term power so as to wholly preserve the dynamics of the speakers and guarantee the integrity of the music signal.
  • Page 39 GLOSSARY SWITCH MODE POWER SUPPLY A unit that, before making the power available for internal use in the amplifier, converts the AC power supply into a much higher frequency thanks to a switch mode circuit. The advantages of a switch mode power supply are its lower weight and reduced electromagnetic emissions.
  • Page 40 CODE 32637#REV.02...
