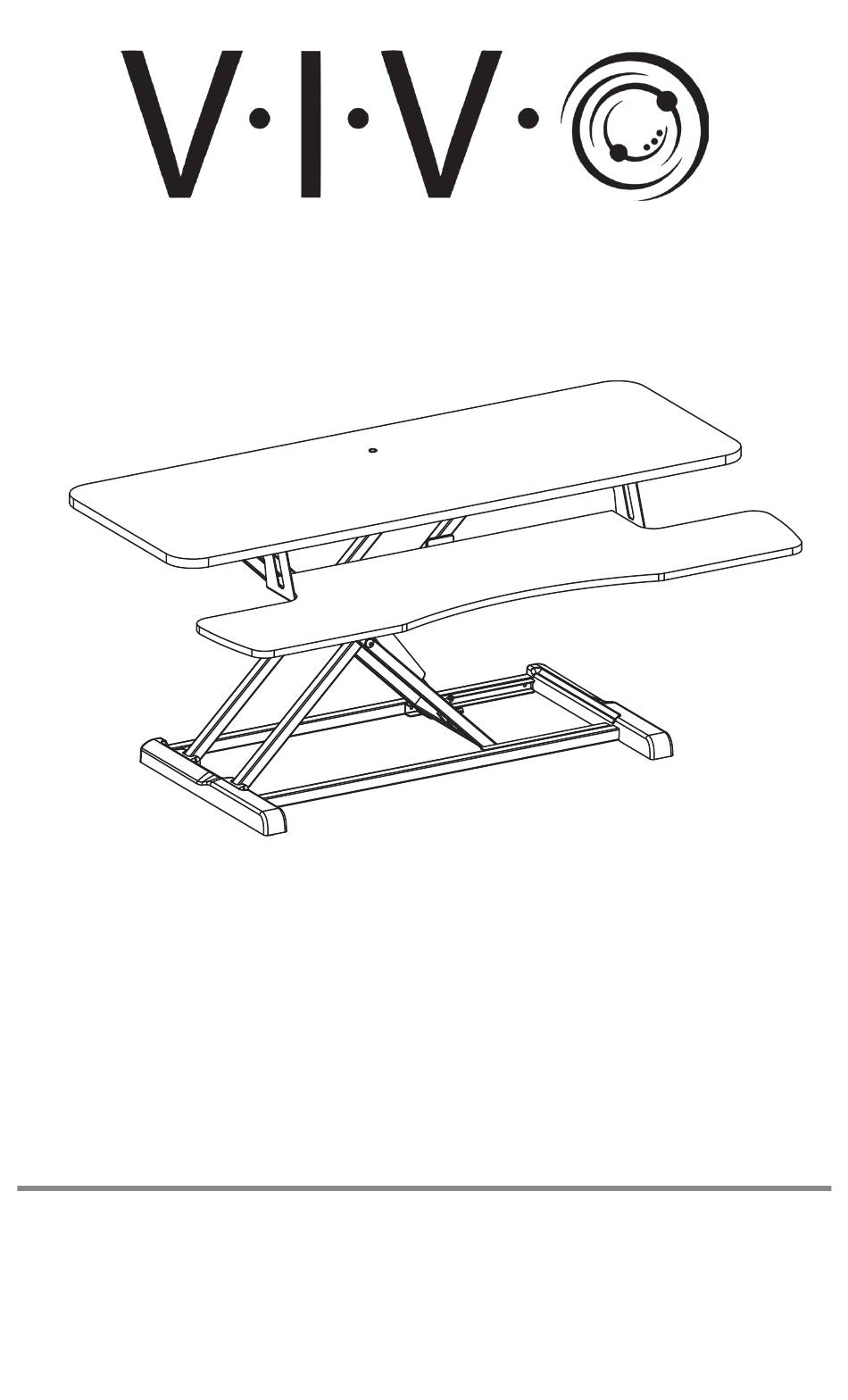

- Page 1 48” Desk Riser DESK-V048K Series Assembly Manual Individual Product SKUs DESK-V048KB DESK-V048KN DESK-V048KW...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 3 Screwdriver Tray Need Help? We’re Here For You US-Based Customer Support from Trained Professionals Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 Assembly Video & Product Info www.vivo-us.com/products/desk-v000k...
-
Page 4: Assembly Steps
Assembly Steps STEP 1 Apply Pads (D) to underside of Keyboard Tray (B). Assemble Stopper (C) to Kayboard Tray (B) using ST4.2x12mm Screws (S-A) and a Phillips screwdriver. - Page 5 STEP 2 Install Rubber Feet (E) to the bottom of Desk (A). Remove shipping tie from desk and set right side up on solid surface. NOTE: DO NOT squeeze the handle on Desk (A) while cutting the shipping tie.
- Page 6 STEP 3 Raise Desk (A) by lifting the handle on the right side of the frame. Place Keyboard Tray (B) on the metal brackets on Desk (A). Secure Keyboard Tray (B) to brackets using M5x10mm Screws (S-B) and tighten with a Phillips screwdriver.
- Page 7 STEP 4 Remove adhesive backing from Cable Clips (F) and apply to underside of Desk (A). Desk riser is now ready for use Press side lever to raise or lower your desk riser. When lowering without any weight on the desktop, lightly press down on riser as you lower it to allow for a smoother lowering process.
- Page 8 Grommet Option This desk riser features a pre-drilled grommet hole for installing a monitor mount directly to desk surface. To utilize this feature, your will need to remove the plug from the top surface of the riser. Secure your mount using a grommet mounting method, using the hardware and assembly steps from your monitor mount.
-
Page 9: Tension Adjustment
Tension Adjustment If your desk riser lifts up or down too easily, or is too difficult, the gas spring cable can be adjusted to your desired tension. The adjustment is located at the base of your riser. Start by loosening the Upper (1) and Lower (2) Nuts using an adjustable wrench. Loosen Nuts until they are both on the opposite ends of the Gas Spring Cable. - Page 10 Desk is Difficult to Lower/ Springs Up too Fast If the desk feels difficult to lower or springs up too fast, you will need to increase the Gas Spring Cable tension. Gently pull the cable away from the Lever until the Inner Nut (2) is firmly pressed against the middle divider.
- Page 11 Desk is Difficult to Raise/ Springs Up too Slow If the desk is raising or lowering without the handle being pressed, the tension will need loosened. Gently push the cable down towards the base of the riser until the Upper Nut (1) is firmly pressed against the middle divider.
-
Page 12: Last Updated
LAST UPDATED: 3/12/25 REV2.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
