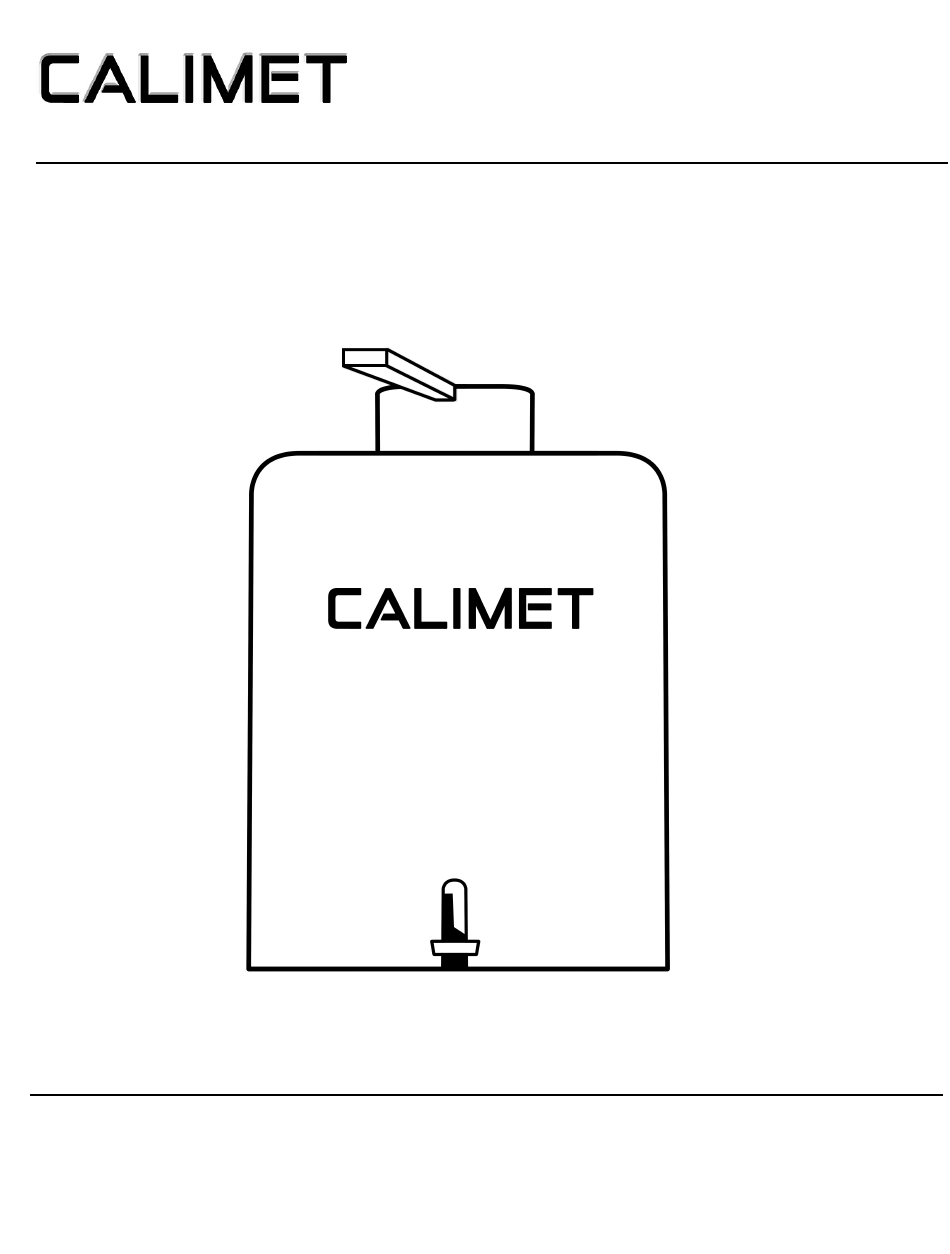

- Page 1 Access Control Systems CM6-AC Swing Gate Operator Installation and Owner's Manual Ver. 2022-03-18 www.calimetco.com 9949 Hayward Way South El Monte, CA, 91733 Tel: (626) 452-9009...
-
Page 3: Product Specs
Product Specs PRODUCT SPECS Power: 110-120V AC, 7 Amps Maximum Output Current: 15 amp, Fuse: AC 110V 15 amp Remote Control Distance: >150 Feet (50 meters) Maximum Gate Weight: 1000 lbs Maximum Gate Length: 18 Feet LANGUAGES To download this user manual in a different language, visit calimetco.com/manuals Para descargar este manual de usuario en otro idioma, visite calimetco.com/manuals WARNING To reduce the risk of INJURY or DEATH:... - Page 4 UL325 Installation (OPTIONAL) Requirements for UL Compliant Installation UL 325 standard is a safety standard for electric gate openers. If the gate operator installation requires a UL325 installation, follow these instructions. For full instructions, visit the UL325 website. REQUIRED ENTRAPMENT PROTECTION A - Inherent (built-in) Entrapment protection System B1 - Non-contact sensor such as a photo-eye or equivalent B2 - Contact sensor such as edge sensor or equivalent...
- Page 5 UL325 Installation (OPTIONAL) Requirements for UL Compliant Installation Continued Additional UL Requirements • A minimum of two (2) warning signs shall be installed, one on each side of the gate where easily visible. • The gate must have sufficient room when opening and closing. Swinging gates should open inwards and not into public access areas.
- Page 6 Installation Step 2: Installing the Concrete Pad It is recommended to install a concrete pad in order to maintain proper stability. 1. Lay out a concrete pad. Requires 22"(length) x 24"(width) x 24"(20" depth below ground, 4" above ground) 2. Install the electrical conduit. 3.
-
Page 7: Step 3: Standard Installation
Installation Step 3: Standard Installation Wall Closed Gate Position Hinge Center Open Gate Position A. . 14" minimum B. . 27" C. Length of C = E * 40%. The length of C is 40% of E. Arm should be 90° from gate when open and straight when closed. -
Page 8: Compact Installation
Installation Compact Installation Use compact installation ONLY when the space between the OPEN Figure A: Open Gate Position gate and wall is between 20-32", Figure A. Cut the swivel arm to meet the size requirements. 47" Long Arm 22" 23" 2"... -
Page 9: Step 1: Installing The Base
Installation Step 1: Installing the Base The base, also known as a pad is a raised platform. We recommend using a concrete base. Lay out position of 6 wedge anchors by measuring clearance between anchors and inside edge of gate. Figure 1 Install underground conduits in area for conduits. - Page 10 Installation Step 2: Door arm installation Figure 3 After you're satisfied with testing the arm in the full open and closed positions, weld gate bracket and arm. Figure 4 Should be at least 1/4 the gate length. NOTE: Uphill or heavy gates should be at least 1/3 gate length.
- Page 11 Installation Figure 5 A. DO NOT allow the arm to touch the gate operator's hood when the gate is in the open position. Too much stress is put on the arm in this position during gate operation. Figure 6 Preferred arm position is 90° from the open gate. NOTE: If dimension between open gate and wall is 20"...
- Page 12 Installation Figure 7 Support bar should be installed at the gate bracket height across the entire gate to keep the gate pickets from bending.
-
Page 13: Step 3: Connecting The Power
Installation Figure 8 Figure 9 Step 3: Connecting the Power Maximum Wire Length 14 AWG - 1,150 ft 12 AWG - 1,850 ft MUST use UL approved power wires, power wires MUST have 10 AWG - 2,950 ft minimum capacity for 15 amp current. 2. - Page 14 Installation Step 4: Open Direction See which direction your gate opens when viewed from the inside (exit side). Dip Switch #6 (Figure 10) on the bottom of the gate operator circuit board controls the open direction. = opens to the right, = opens to the left Figure 10 Clockwise...
- Page 15 Installation Step 5: Installing the Photocell Sensor Plug photo eye cable here 1. Plug the photo eye cable to the back of the gate opener, behind the circuit board, Figure 11 2. Press the reset button on the gate operator control board. 3.
- Page 16 Installation Output Shaft Step 6: Gate Travel Limit Limit Cam The gate travel limit controls the position of where the gate opens and closes. 1. Use a screwdriver to loosen the 3 screws on the top limit cam. Do the same for the bottom limit cam.
- Page 17 Installation Step 6: Gate Travel Limit This controls the position of where the gate stops when it opens and closes. 1. Use a screwdriver to loosen the nails on the top and bottom limit cams 2. Turn left or right on both limit cams to adjust the position of where the gate opens and closes. Figure 9 TIP: Use the OPEN, CLOSE, STOP buttons on the gate operator circuit board for faster testing 3.
-
Page 18: Emergency Release
Features EMERGENCY RELEASE The emergency release allows you to open the gate manually, such as in cases where there is a power outage and there is no electricity. Turn off power. Step on the release pedal with your foot and move it down to the right until it is locked in. -
Page 19: Warning Signs
Features Warning Signs Warning signs are to alert people that a possible hazard exists with moving gates, so that appropriate action can be taken to avoid injury. Install the 2 supplied warning signs in locations where the signs are visible by people on both sides of the gate. - Page 20 The reverse loop prevents the gate from closing in on the car. If you purchased a Calimet Brand Loop Detector Plugin, it is installed in the brackets below (figure A). The loop wires are installed in the LOOPDETECTOR Relay. See the loop detector instruction manual for more installation instructions.
- Page 21 Features Dual Gates Setup - Master/Slave This setup is for dual swing gates. A single button press of the remote control can open both gates. This requires 2 swing gate operators. One gate operator is the "Master", and the other is the "Slave". 1.
-
Page 22: Control Board Layout
Features Control Board Layout This is a picture of the control board. Use this for reference. 11. Limit Switch Inputs 1. Photocell Sensor Input 12. Loop Wire for Loop Detectors 2. External Keypad Input 13. Common Input 3. Remote Control Dip Switch Settings 14. - Page 23 Features Connecting Additional Remote Controls By default, the remote controls are already connected to the gate operator. You do not need to do any of the following steps unless you are adding more remote controls. There are two ways to connect your remote control: Learn & Dip Switch. Learn This method can fit up to 60 different remote controls.
-
Page 24: Dip Switch Features
5. SLAVE: Secondary operator activation 6. OPEN L/R: Choose gate open direction Left or Right. Installing Non-Calimet Brand Photosensors Figure 18 On your gate operator circuit board, top-left side, there are input relays for photocell sensors. - Page 25 Features Installing an External Receiver Figure 19 Relays for external receivers are installed on the top-left side of the circuit board.
- Page 26 Features Force Adjustment - ERD (Electronic Reversing Device) The Electronic Reversing Device (ERD) is a feature on the circuit board which detects when the gates comes in contact with an obstruction, causing the gate to reverse. These are the 2 blue knobs on the circuit board.
- Page 27 Features Remote Control & Timer Delay Closing Remote Control Delay Closing Activate the remote control delay when closing. 1. On your gate operator circuit board in the bottom, turn Dip Switch #1 to the ON position. Figure 22 2. On the gate operator circuit board, adjust the delay by turning the DELAY knob from 0-6 seconds.
- Page 28 Notes Date Installed: Installer Name: Installer Company: Installer Address: Installer Contact: Notes...
- Page 29 9949 Hayward Way South El Monte, CA 91733 Tel: 626-452-9009 Alternate: 626-482-3066 Fax: 626-452-9010 Email: info@calimetco.com www.calimetco.com...
