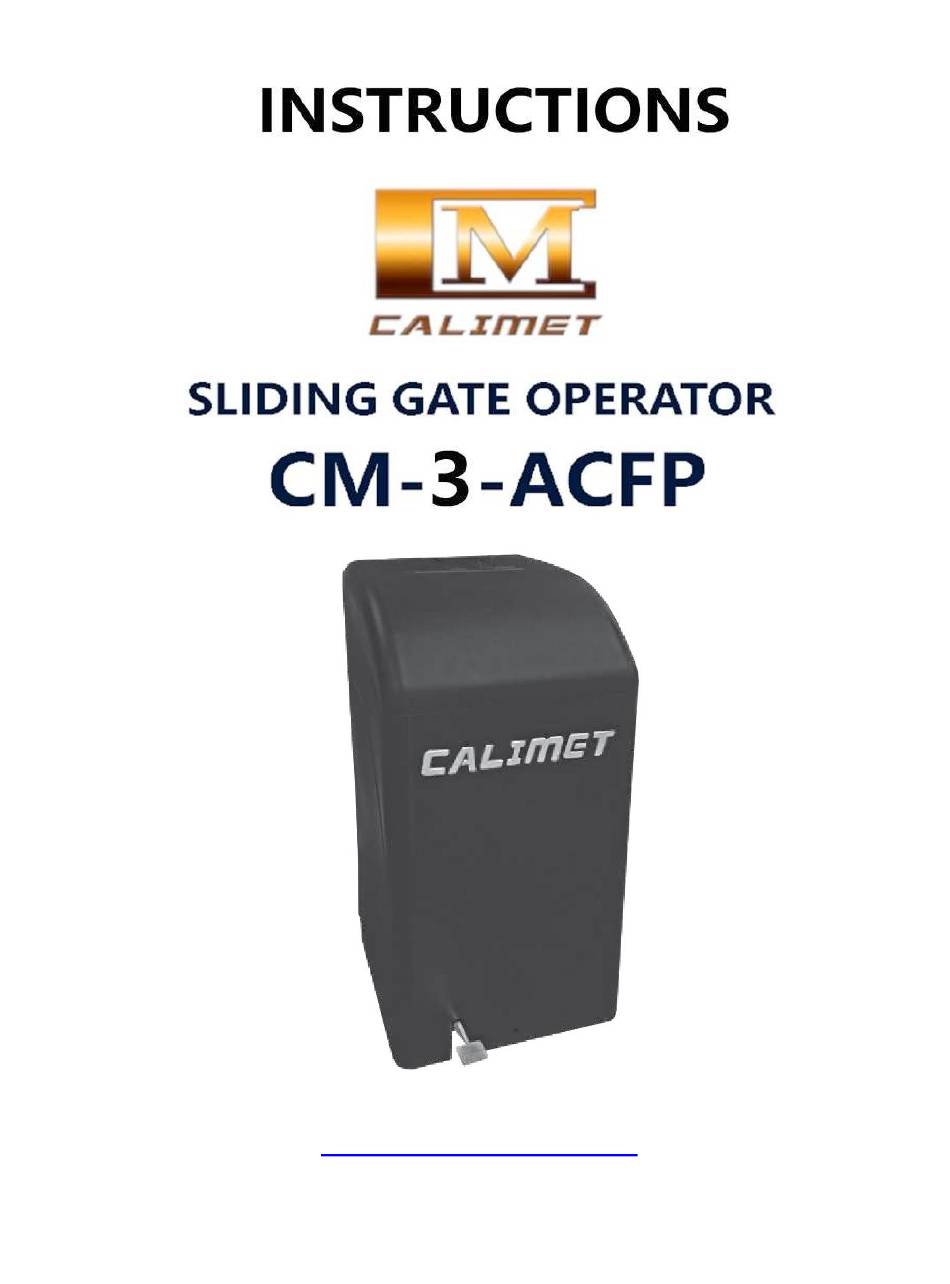

Page 1
www.calimetco.com 9949 Hayward Way South El Monte CA 91733 Tel: (626) 452- 9 009...
Page 2
PRODUCT SPECS : Voltage Input: 110V Maximum output current: 15AM, Fuse: AC110V 15AM Remote control distance: Open space >150 Feet (50 meters) Maximum Gate weight: 1000 LBS Maximum Gate length: 22 FEET WARNING To reduce the risk of INJURY or DEATH: ...
Installation of Base Lay out position of 6 Anchors by measuring clearance between anchors and inside edge of gate. Figure 1 Install underground conduits in area for conduits. Figure 2 Figure 1 Figure 2...
Page 5
Position Of Gate and Operator Two options for chain connections: Figure 5 Rear Mount Figure 6 Front Mount...
Page 6
Welding Bracket of Chain Figure 7 Correct connection of chain Figure 8 Figure 8. Follow the correct way to install chain. Incorrect installation will cause malfunction of operator and potential damages.
Power Connection Figure 9 1. MUST use UL proved power wires, power wires MUST have minimum capacity for 25 Am current. 2. All operators MUST be properly grounded in order to prevent electrical charge. Must use dedicated circuit for power supply. 3.
Page 8
EMERGENCY RELEASE Figure 10 Emergency Release of gate Disconnect power. Push Release pedal downward and move slightly to the right until it was locked Hold and push gate to desired direction. Reset pedal (Only when operator has No reaction while using remote control) 1.
Page 9
Entrapment Protection Safety and Exit Loop Figure 11...
Page 11
Gate Travel Limit Adjustment Figure 13 Turn up or down of both wheels to adjust distance in between, make gate stop at the desired position.
Page 12
Use Remote Control Device Figure 14 There are two modes to set remote control: Self-- s tudy Mode& Numeric Mode Self- - study code may be set up to 60 groups. A. Self-- s tudy mode corresponds to receiver in control board. Press and hold STUDY key for 3 seconds until flashing light turn to solid bright, press any key on remote control until STUDY light turn to flashing again, setting now is done.
Page 13
Use DIP Switches Figure 15 DIP switch 1.CL- - D ELAY: Gate Closing delay, switch to ON position, turn timer to 1- 6 seconds. 2.TIMER: 1-- 6 0 Timer: Auto activated to close gate upon set time ( 1~ 60 seconds). 3.
Page 14
Use of External Receiver Figure 17 External connectors are installed on the rear side of mainboard protector box. Slave Operator Activation Figure 18 1. Set SLAVE switch on SLAVE CONTROL BOARD to ON position. 2. Use UL proved electric wire connect DATA- and DATA- from Master control board to Slave control Board, then connect DATA+ and DATA+ accordingly.
Page 15
Use Reversing Device Figure 19 1. CLOSE ERD: when closing gate, increase/decrease amount of force by turning knob clockwise/counter clockwise. 2. OPEN ERD:When opening gate, increase/decrease amount of force by turning knob clockwise/counter clockwise. 3. Test device sensitivity every 6 months. Remote Control &...
Page 16
Calimet Co Inc 9949 Hayward Way South E1 Monte, CA 91733 Tel: 626-452-9009 Alternate: 626-482-3066 Fax: 626-452-9010 Info@ca1imetco.com www.bestirongatemotor.com...
