Calimet CM9-975 Quick Start Manual

Vehicle exit wand

Calimet CM9-975 Vehicle Exit Wand

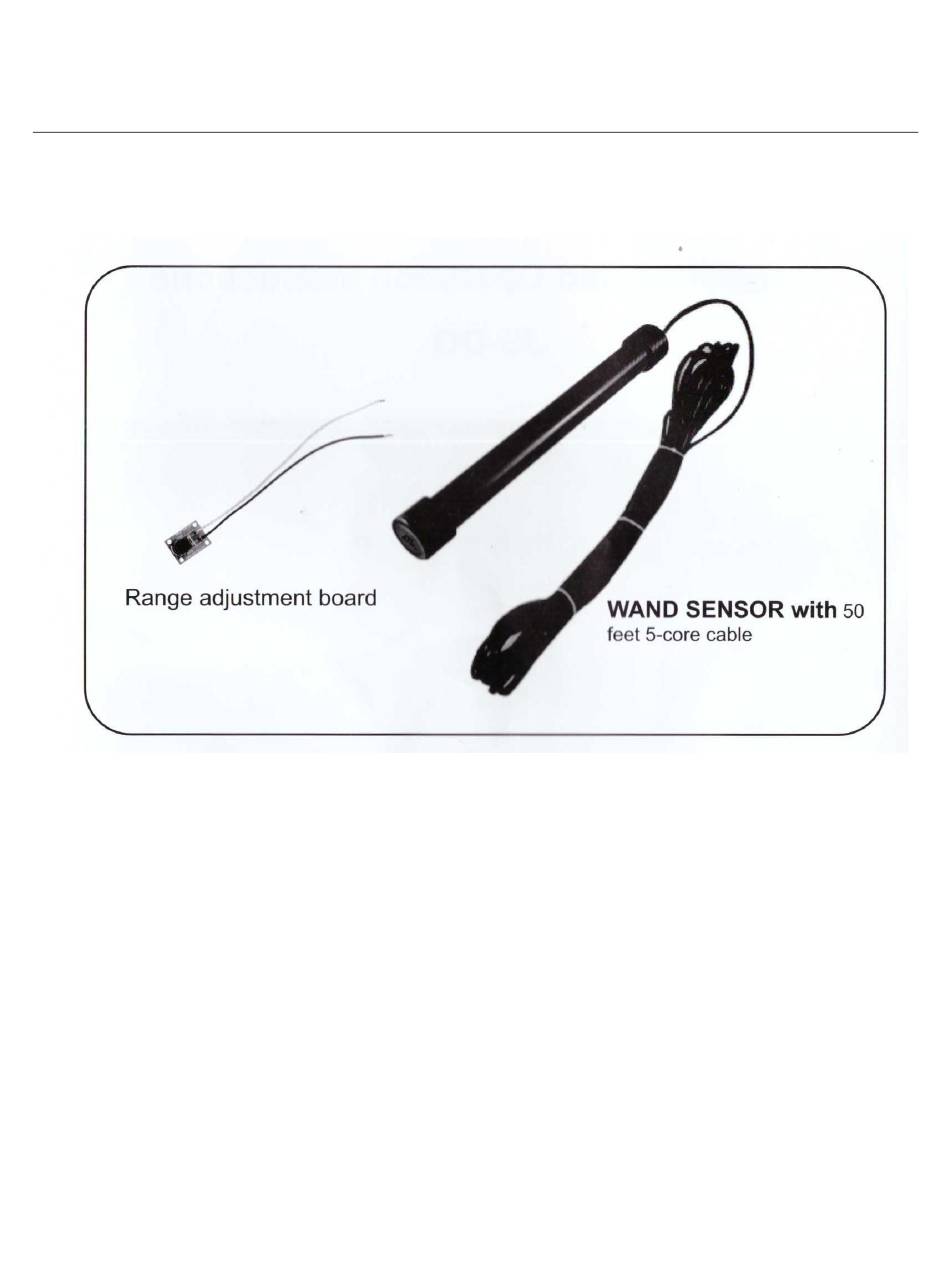

Package Includes

Note: Before you permanently install the exit wand, you should determine where to place the

wand and prepare a PVC conduit to route the cable to the gate operator circuit board. The

conduit protects the cable from water, lawn mowers, weed eaters and grazing animals.

The distance from the wand to the gate's full open position has to be more than 25 ft.

The radius of the sensing range is 4-12 ft, so install the wand near the driveway within that

range to ensure the wand can sense the vehicle moving past it.

Leave 5 ft of cable from the ground to the gate operator circuit board. Thus, the distance from

the wand to the control box should not exceed 45 ft.

Table of Contents

Do you have a question about the CM9-975 and is the answer not in the manual?

Page 1 Calimet CM9-975 Vehicle Exit Wand Package Includes Determine the Location of the Wand Note: Before you permanently install the exit wand, you should determine where to place the wand and prepare a PVC conduit to route the cable to the gate operator circuit board. The conduit protects the cable from water, lawn mowers, weed eaters and grazing animals.
Page 2 Installation Once the location of the wand has been determined, you can start installing the wand. Dig a hole approximately 12 inches deep and 24 inches long within 2 ft and parallel to the edge of the driveway. Next, dig a trench from this hole to a spot under the gate operator circuit board to run the cable from the wand to the circuit board.
Page 3 Keep the wand and the cable uncovered until testing has been completed. Gate Opener Wiring Diagram Located on the right side of your gate opener circuit board, connect the wires on the exit wand to the following terminals below.  Black wire ...
