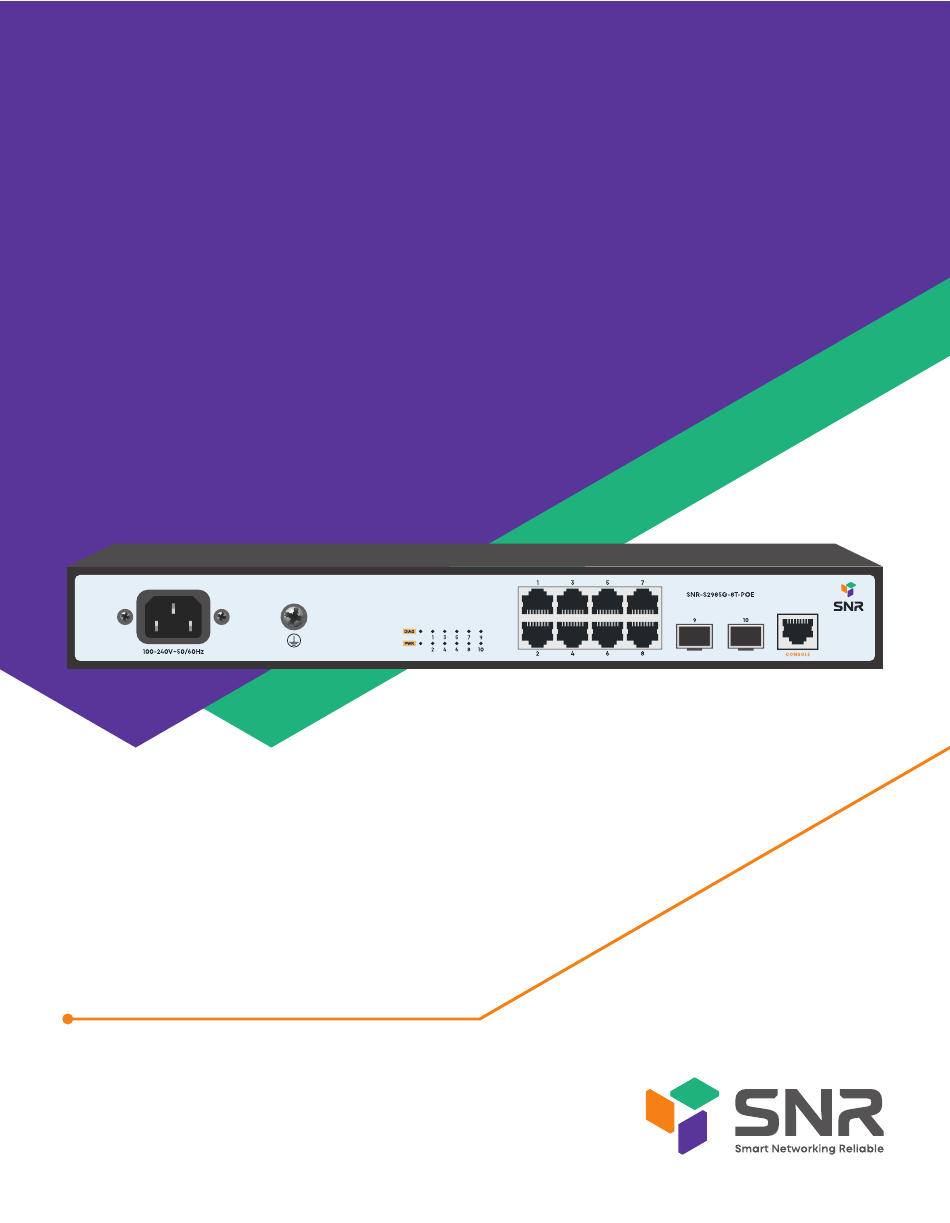

- Page 1 SNR-S2985G-8T-POE Managed L2 PoE Ethernet Switch Quick Install Guide...
- Page 2 SNR-S2985G-8T-POE Quick Install Guide SNR-S2985G-8T-POE Quick Install Guide This guide describes the steps of installing the switch, including the basic introduction to the product, the basic installation steps, etc. 1. Front panel description № Item Description 100-240V~50/60Hz The AC power socket, AC rated voltage range: 100-240V AC; 50/60Hz...
- Page 3 SNR-S2985G-8T-POE Quick Install Guide 2. Switch installation Before installation, take ECD-preventive measures, such as wearing the ESD- preventive gloves or a wrist strap. 2.1 Install the Device in a 19” Cabinet Fix the Rack Mount Brackets. Fix the captive nuts， and install the device in a cabinet. Attention: leave more than 1U space between the devices for proper heat dissipation.
- Page 4 SNR-S2985G-8T-POE Quick Install Guide 3. Access to initial switch configuration 3.1 Access to the switch via console Connect console cable to switch via RJ-45 connector and another side to RS-232 port of the PC. Settings of the COM-port are below.
