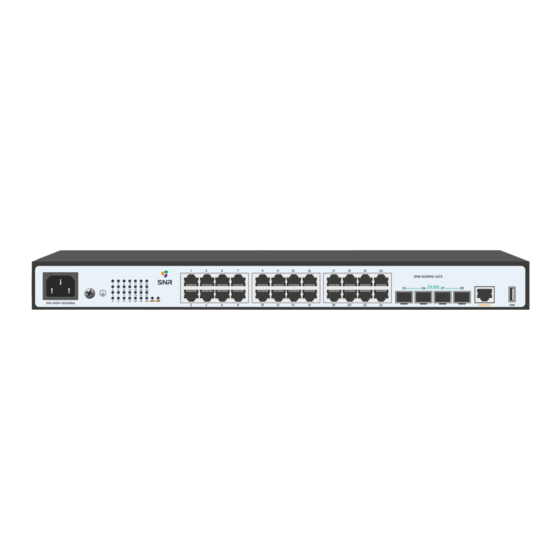

- Page 1 DIAG PWR 100-240V~50/60Hz CONSOLE SNR-S2989G-24TX Managed L2 Ethernet switch Quick Installation Guide...
- Page 2 SNR-S2989G-24TX Quick Installation Guide Quick Installation Guide This guide describes the steps of installing the switch, including the basic introduction to the product, the basic installation steps, etc. 1. Front and back panels description DIAG PWR 100-240V~50/60Hz CONSOLE № Item...
- Page 3 SNR-S2989G-24TX Quick Installation Guide 2. Switch installation Before installation, take ECD-preventive measures, such as wearing the ESD-preventive gloves or a wrist strap. 2.1 Install the device in a 19” cabinet Fix the rack mount brackets. Fix the captive nuts, and install the device in a cabinet. Attention: leave more than 1U space between the devices for proper heat dissipation.
- Page 4 SNR-S2989G-24TX Quick Installation Guide 3. Access to initial switch configuration 3.1 Access to the switch via console Connect console cable to switch via RJ-45 connector and another side to RS-232 port of the PC. Settings of the COM-port are below:...
- Page 5 SNR-S2989G-24TX Quick Installation Guide 4. Technical support NAG service and technical support center: NAG LLC Address: Office M-03, Al Garhoud Business center Building. UAE, Dubai Website: snr.global Technical support portal: snr.support Tel: +971 0 42599967...
