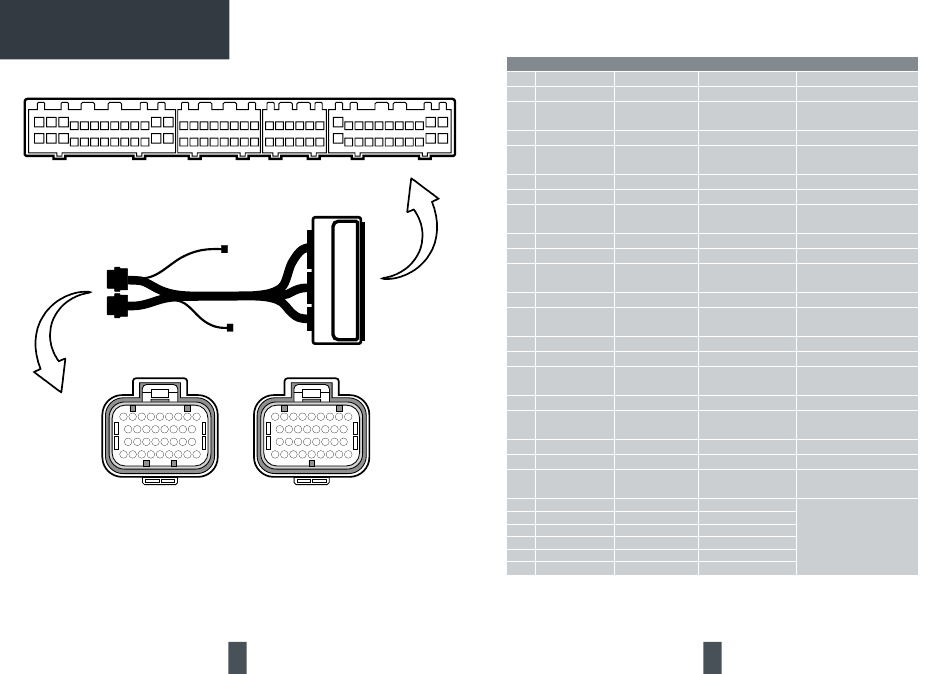

ADAPTER PINOUT REFERENCE
MITSUBISHI EVO 4-8
Vehicle connector:
1 2 3 12 13
4 5 6 7 8 9 10 11 31 32 33 34 35 36 37 38
14 15 16 25 26
17 18 19 20 21 22 23 24 39 40 41 42 43 44 45 46
9 8 7 6 5 4 3 2 1
17 16 15 14 13 12 11 10
25 24 23 22 21 20 19 18
34 33 32 31 30 29 28 27 26
Connector C
Keyway Type 2
All connectors above are shown with reference to the pin side (front of connectors).
71
51 52 53 54 55 56 72 73 74 75 76 77 78 79
82
57 58 59 60 61 62 83 84 85 86 87 88 89 90
9 8 7 6 5 4 3 2 1
17 16 15 14 13 12 11 10
25 24 23 22 21 20 19 18
34 33 32 31 30 29 28 27 26
Connector A
Keyway Type 1
12
Pin Function
C1 Trigger +
C2 Trigger -
80 81 C3 Home +
C4 Home -
91 92
C5 SPI 1
C6 SPI 2
C7 SPI 3
C8 SPI 4
C9 +8V
C10 AVI 1
C11 AVI 2
C12 AVI 3
C13 AVI 4
C14 AVI 5
C15 AVI 6
C16 AVI 7
C17 AVI 8
C18 AVI 9
C19 SPI 5
C20 SPI 6
C21 CAN 2 H
C22 CAN 2 L
C23 Knock 1
C24 Knock 2
C25 +5V
C26 Signal ground
C27 AVI 10
C28 AVI 11
C29 WBI 1 Heater +
C30 WBI 1 Input
C31 WBI 1 Pump
C32 WBI 1 Nernst
C33 WBI 1 Heater -
C34 WBI 1 Cal
NEXUS S3/S2 ECU CONNECTOR C (KEYWAY TYPE 2)
Colour Vehicle connector
White 89
Black No connection
White 88
Black No connection
Gray/Brown To auxiliary connector
Gray/Red 90
Gray/Orange 86
Gray/Yellow 45
Orange/White No connection
White To auxiliary connector
White/Yellow 43
White/Gray 91
White/Violet 37
White/Green 87
White/Orange 76
White/Black 72
White/Brown 83
White/Red 73
No connection No connection
No connection No connection
White No connection
Blue No connection
White 78
White No connection
Orange 81
Black/White 92, 40
Light Green 84
No connection No connection
Gray Wideband conn. Pin 1
Yellow Wideband conn. Pin 2
Red Wideband conn. Pin 3
Black Wideband conn. Pin 4
White Wideband conn. Pin 5
Green Wideband conn. Pin 6
13
Function
CAS (4-pulse)
No connection
CAS (2-pulse)
No connection
Auxiliary IO
MAF sensor
Vehicle speed sensor
A/C request switch
No connection
Auxiliary IO
Clutch switch (Some Evos)
Water spray switch (Evo 7-8)
Power steering switch
ACD-AYC signal (Evo 7-8)
Narrowband O2 sensor
Air temperature
Coolant temperature
MAP sensor (Some Evos)
No connection
No connection
No connection
No connection
Knock sensor
No connection
Sensor power supply
Sensor ground
Throttle position sensor
No connection
Onboard wideband control
(See page 6 for details)
