ELECTRICAL WIRING
66

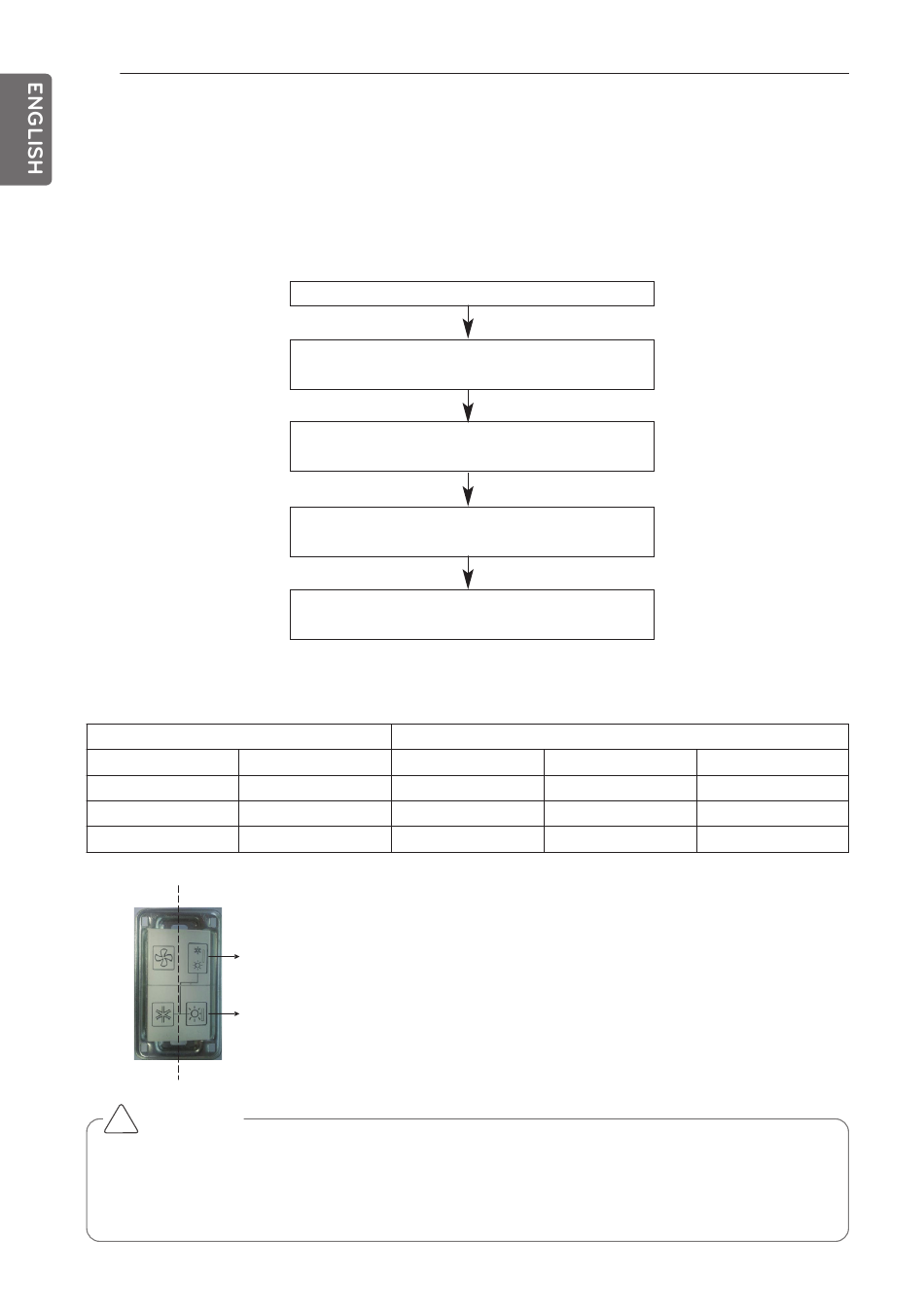

Cool & Heat selector
Mode setting method
Function setting
Switch Control
Switch(Up) Switch(Down)
Right side (On)
Right side (On) Right side (On)
Left side (Off)
Right side
Left side
Switch (Up)
Switch (Down)
CAUTION
!
• Ask an authorized technician to setting a function.
• If do not use a function, set an off-mode.
• If use a function, first install a Cool & Heat selector.
Master unit PCB DIP switch on : No.5
Select the mode using '▶', '◀' Button :
"Func" Push the '●' button
Select the Function using '▶', '◀' Button :
"Fn1" Push the '●' button
Select the Option using '▶', '◀' Button :
"oFF","op1","op2" Push the '●' button
Cool & Heat Selection mode is set
Left side (On) Not operate
Not operate
- Not operate
Function
oFF op1(mode)
Cooling
Heating
Fan mode
op2(mode)
Cooling
Heating
Off
