ELECTRICAL WIRING
58

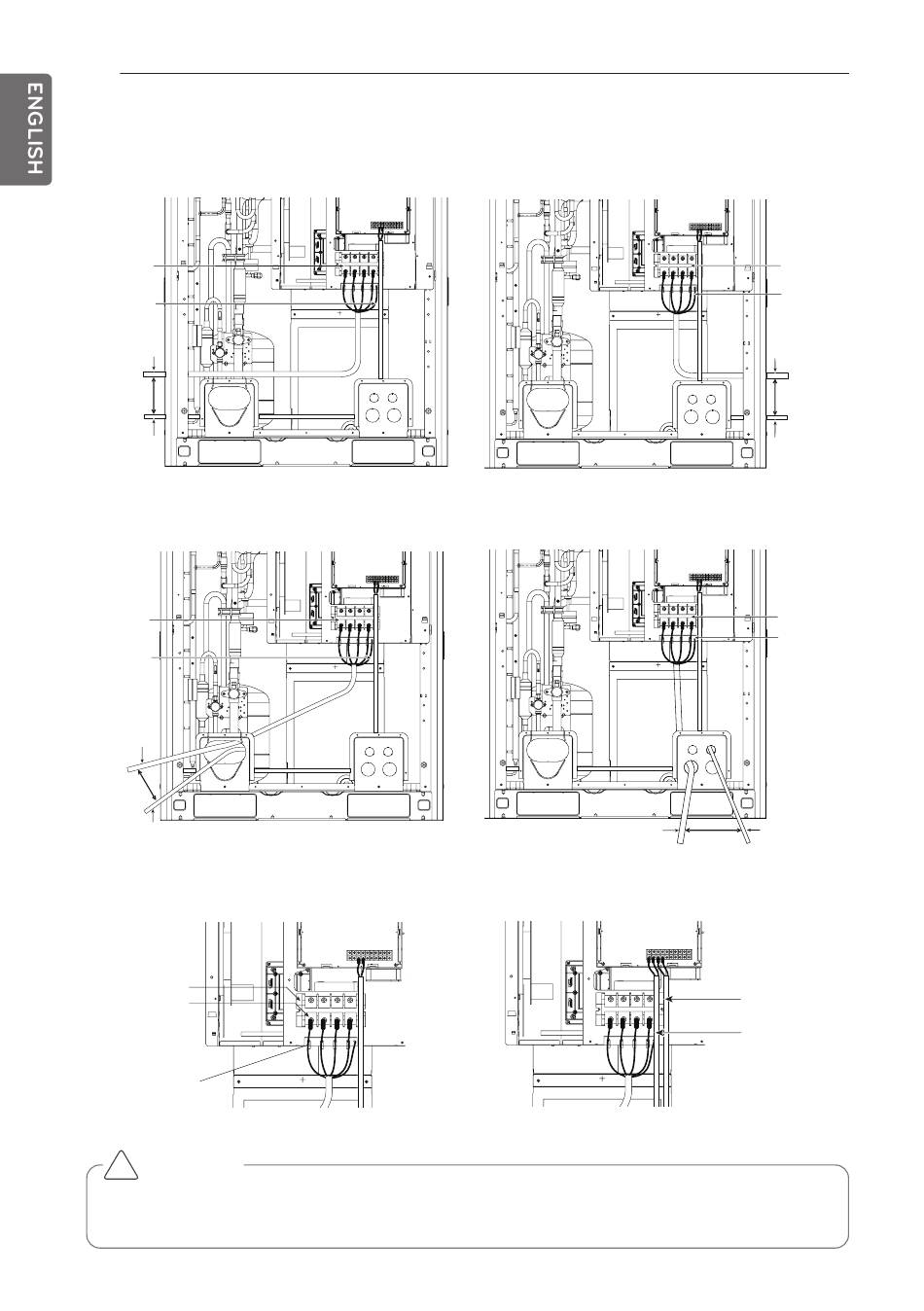

Example) Connection of power and communication cable (UX5)
Left Side
Main power
terminal block
Ground wire
Power/
Ground cable
Over
50 mm
gap
Communication
cable
Front Side 1
Main power
terminal block
Ground wire
Power/
Ground cable
Over
50 mm
gap
Communication cable
Main Power Connection
Main power
terminal block
Insulation
sleeves
attachments
Fix firmly not
to be displaced
CAUTION
!
It should be wiring power cables or communication cables to avoid interference with the oil level
sensor. Otherwise, That oil level sensor would be operated abnormally.
Right Side
Front Side 2
Power/Ground cable
Over
50 mm gap
Communication Connection
Main power
terminal block
Ground wire
Power/
Ground cable
Over
50 mm gap
Communication
cable
Main power
terminal block
Ground wire
Communication
cable
ODU-IDU
Communication cable
ODU-ODU
Communication cable
