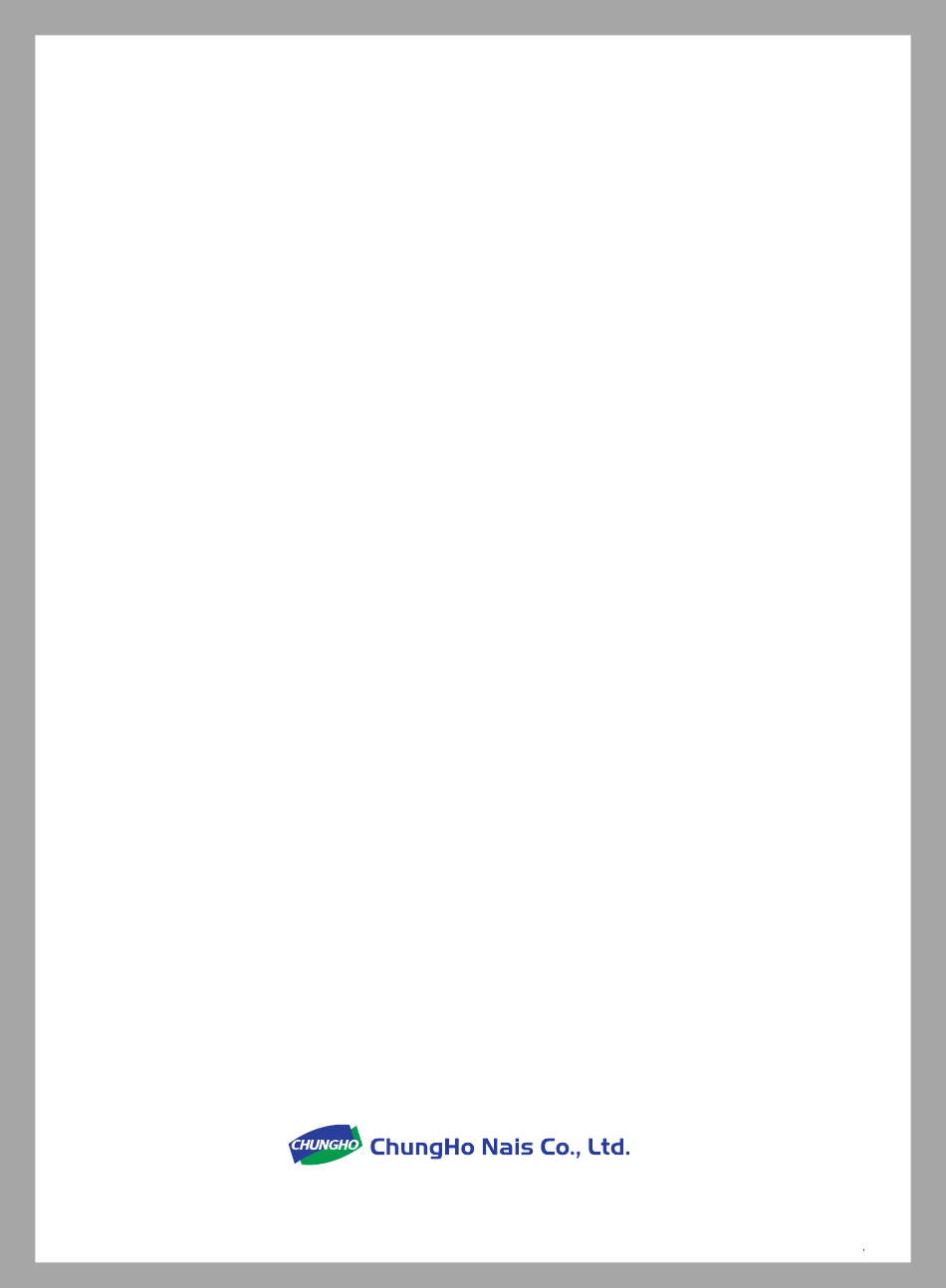

- Page 1 486, Jingwang-ro, Iwol-myeon, Jincheon-gun, Chungcheongbuk-do, Korea (P.O.BOX: 365-820) TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr Rev No.00 Rev,No.01...
- Page 2 Whi Caffe- Ⅱ User's manual HP - 5340S * Design and color may differ from the picture. * Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance. * The rated voltage of this unit is (220-240) V~, 50Hz only.
-
Page 3: Unit Features
24 hour natural water circulation system(N.W.P.W) ChungHo Nais purification system is designed to allow water to continuously flow for 24 hours within the water purifier by adopting a natural circulation method. This mode, entitled N.W.P.W. applies the natural weight of water pressure in order to always supply clean and fresh water. -
Page 4: Table Of Contents
Greetings . 제품의특징 We greatly appreciate your purchase of WHI CAFFE-Ⅱ . The unit is manufactured according to standard specifi- cation, and produced with a reliability test on all integrated components. The system is tested thoroughly on strict quality guidelines including temperature, moisture, shock, dust, vibra- tion, drop, etc. -
Page 5: Safety Precautions
Safety precautions Cautions are divided into 2 categories : ‘Danger’ ‘Caution’ Danger Associated with the possibility for serious injury or death. When the power cord has ● been damaged, change the Keep the cord out of heavy power cord in order to prevent ●... - Page 6 Safety precautions Caution Associated with the possibility of injury, property damage and reduced performance of unit. While coffee is extracting, ● Do not try to extract coffee or never try to separate capsule ● tea without cup. holder. (Beverage can overflow from (Coffee machine can have drip tray and it can cause damage and hot beverage...
- Page 7 Safety precautions Caution Associated with the possibility of injury, property damage and reduced performance of unit. When taking ice, avoid using a ● When taking ice, place a ● glass cup and avoid taking ice container close to the ice with cup filled with beverage, dispensing hole not to drop coffee etc.
- Page 8 Safety precautions Caution Associated with the possibility of injury, property damage and reduced performance of unit. To disconnect the unit, be ● After installation, arrange the ● sure to pull by the plug and power cord so that it will not not the cord.
-
Page 9: Names Of Each Part
Names of each part Ice full display Water full display ICE/LOCK setting touch button Hot water/Power saving touch button LCD display Power button for extract Espresso selection button Americano selection button Soft Americano selection button Tea selection button Capsule holder Drip tray Movable drip tray Hot water dispensing... -
Page 10: Installation Cautions 08
Installation cautions Do not install the unit at the following places. • Near fire or heater • Near flammable material • Wet place • A place exposed to rain or snow • A place exposed to direct sunlight • Near chemicals(volatile material, organic solvent, etc.) •... - Page 11 Installation cautions When connecting tube, ensure that the tube is not bent or pressed down by heavy objects, etc. * If tube is bent or pressed, water does not flow well and can cause problems. Adjust the tubes so that brine water and drain water may not splash around area. * Brine water or drain water can easily be used for other purposes, such as bathroom cleaning, house cleaning, laundering, washing, etc.
-
Page 12: Installation Method
Installation method Install horizontally. Shut off water supply valve and separate the connector part of tap water in order to connect an adapter(source water valve). Then, connect the adapter. * If a sealing rubber(packing) is missing or the thread of a screw is dam aged, it may occur water leakage. -
Page 13: How To Extract Coffee And Tea 11
How to extract coffee and tea Display and coffee extract button Turns ON/OFF the extract Power/Warm-up button function Espresso selection Used to extract Espresso button Americano selection Used to extract Americano button Soft Americano Used to extract Soft Americano selection button Tea selection button Used to extract Tea Extracting coffee and tea... -
Page 14: Lcd Display For Coffee Extract
LCD display for coffee extract LCD display for coffee extract Display status LCD display HEATING Heating completion (Standby) Heating needed Espresso extract Americano extract Soft Americano extract Tea extract No capsule Not enough water CLEANING... -
Page 15: Using Coffee And Tea Extract Method 13
Using coffee and tea extract method 1. Press “POWER”. * After heating completion, 'Heating completion' is indi- cated on the LCD display with beep sound. (Sound : Ding-Ding-Ding) 2. Pull out capsule holder. 3. Insert the coffee or tea capsule to the holder and push it. - Page 16 Using coffee and tea extract method 5. Press the "ESPRESSO", "AMERICANO" , “SOFT AMERICANO” or "TEA" on user's preference. * Be careful of coffee overflow if users press unsuitable button for coffee extract. 6. Coffee or tea is extracted by high pressure. Extracting the coffee or tea causes noise and vibration from motor and high pressure pump.
-
Page 17: Descaling Coffee Outlet
Using coffee and tea extract method Button Recommended capsule Extracting time Extract Amount Arabica 100 ESPRESSO About 40 ~ 50 ml 30 seconds Morning Lunch Arabica 100 AMERICANO 30 seconds About 120 ~ 130 ml Morning Lunch Arabica 100 SOFT 30~35 seconds About 160 ~ 170 ml Morning... -
Page 18: Coffee Recipe
Coffee recipe * 1 shot means a cup of extracted espresso. Menu Recipe Ingredients : Espresso arabica 100(1 shot) + Ice(10 cubes) + Water(100 ml) Iced Americano 1. Fill the glass with chilled filtered water and ice. 2. Pour the espresso over the ice. Ingredients : Espresso lunch(1 shot) + Ice cream(1 scoop) 1. -
Page 19: Operation
Operation Display and function settings (A) Detects a light density around the unit. Hot water system is automatically Light detection ON/OFF in accordance with light density. sensor (This function is valid only when "ECONO" is on.) Lights up when ice storage is full. ICE FULL LED (Yellow-green) Lights up when ambient water tank is full. -
Page 20: Operation Beep Sound
Operation Operation beep sound * A beep sound following operation of the Whi cafe - Ⅱ Section BEEP Remarks/Occurrence Power ON Ding~Dong~Daeng~ Once Key input Ding~ Once ICE/LOCK setting Ding~Ding~Ding~ Once Water dispensing start Ding~ Once Water dispensing ending Once Dong~ Overflow Ding~Ding~Ding~Ding~... - Page 21 Operation ■ Constant water function setting 2 SECONDS 1. Press "AMBI/CONST. SELECTION BUTTON" for 2 seconds to take ambient water. 2. Ambient water is served for 60 seconds as AMBI/CONST. LED is blinking. Constant water is set, no water is taken, the function is released after 10 seconds automatically. Only ambient water is served as constant water function.
-
Page 22: Usage 20
Usage • HOT/ECONO function is available only when LOCK is released. ■ Hot water operation setting 2 SECONDS 1. Press "HOT/ECONO" for 2 seconds. 2. Press the button until "HOT" LED(Red) is turned on. 3. Hot water operation works as turning on "HOT" LED(RED). * Hot water system is operated by a detection sensor which automatically detects the temperature inside of the hot water tank. -
Page 23: Ice And Water Dispensing Method
Usage Ice and water dispensing method ■ Ice dispensing mode If "ICE"(ice dispenser) touch button is pressed, the door of the ice storage is opened and ice is served from the dispensing hole. ■ Hot water dispensing mode If "HOT"(hot water selection) touch button is selected and the water dispensing button is pressed, hot water is served. -
Page 24: Smart Cleaning Function
Usage Smart cleaning function It is the smart cleaning function that prevents contamination by automati- cally cleaning the tank every 15 days, when frequency of use is low. • It operates same time every 15 days, as it is set the standard time which is 12 hours later after connection of power. -
Page 25: Usage Safeguards
Usage safeguards Refer to the voltage on the front page. Connect to the proper power source. Keep the cord out of heavy traffic areas. (This can lead overheating to outlet.) Never move the unit while in operation. (It can cause a malfunction.) Do not touch the wire condenser on the rear side of unit. -
Page 26: Cleaning 24~26
Cleaning Water tank 1. Shut off the source water valve. 2. Loosen screws (2ea) beneath of the lower front cover. 3. Hold the lower front panel as pressing down and pull it frontward. 4. Turn the drain switch ON inside of the unit. 5. - Page 27 Cleaning 11. Clean up the water tank and wash with soft cloth or dried sanitary wipe. And then assemble in a reverse way. 12. Turn the drain switch OFF inside of the unit. 13. Insert the lower front cover properly and then assemble in a reverse way.
-
Page 28: Ice Dispensing Spout
Cleaning Ice dispensing spout 1. Turn the spout to the left to disconnect it from the body. 2. Separate rubber cap from ice dispensing spout and clean them. 3. After cleaning, put the rubber cap back into ice dispensing spout and put it back by turning to the right. -
Page 29: Maintenance
Maintenance Details Section Location - The unit can be installed at low water pressure place within water quality range. <Do not install the unit in places below> Installation - A place exposed to direct sunlight. Environment - Nearby toilet. - In front of cooling or heating device. - Cleaning up water dispensing spout once a week is recommended. -
Page 30: Filters
Fliters Filter function T-Pre-carbon filter It is made from high temperature processed carbon. it absorbs and eliminates dissolved pollutants(such as chlorine, THMs and organic chemical contaminants), so it protects the membrane filter and helps it function work properly. T-Membrane filter It removes dissolved pollutants.(a molecular weight over 200, such as heavy metals, bacteria and organic chemical contaminants) through RO filtration using a semi-perme- able membrane(0.0001 ㎛... -
Page 31: Replacement
Replacement 1. Shut off the source water valve and loosen screws(2 ea) beneath of the lower front cover to separate the lower front cover. 2. Turn the drain switch ON inside of the unit. 3. Open drain valve to drain hot, ambient water completely and close drain valve and drain cold water from water dispensing spout. -
Page 32: Specification
Specification Unit name Whi Caffe -Ⅱ Model name CHP-5340S Rated voltage Refer to the front page External dimension 16.9W x 19.5D x 58.6H (inch) (430W x 497D x 1490H (mm)) Hot water 500 W Cold water Power 1 A(200 W) consumption Ice making 1 A(220 W) -
Page 33: Flow Diagram
Flow diagram Flow diagram Water level sensor TEE EQL 1/4" TEE EQL 1/4" TEE EQL 1/4" Coffee extract Ambi tank machine Coffee Oulet Ice making unit Cold water inflow SOL V/V Ice making Water 3 WAY pump dispense Hole SOL V/V Cold tank HOT Water Water leakage... -
Page 34: Troubleshooting 32
Troubleshooting Symptoms Check points Request follow-up service When the display when you still have Is the power plug Insert the power plug into is not turned on problem as the power plug inserted properly? wall outlet properly. and not operated. is inserted properly. - Page 35 Troubleshooting Symptoms Check points Set "HOT"(hot water operation) Is "HOT" Wait until the hot water tank by touching "HOT/ECONO" (hot water operation) is on? becomes hot enough. touch button. Have you taken hot water Wait until the water level of Americano is not more than 0.5G (2ℓ) ambient water tank reaches...
-
Page 36: Memo
Memo...
