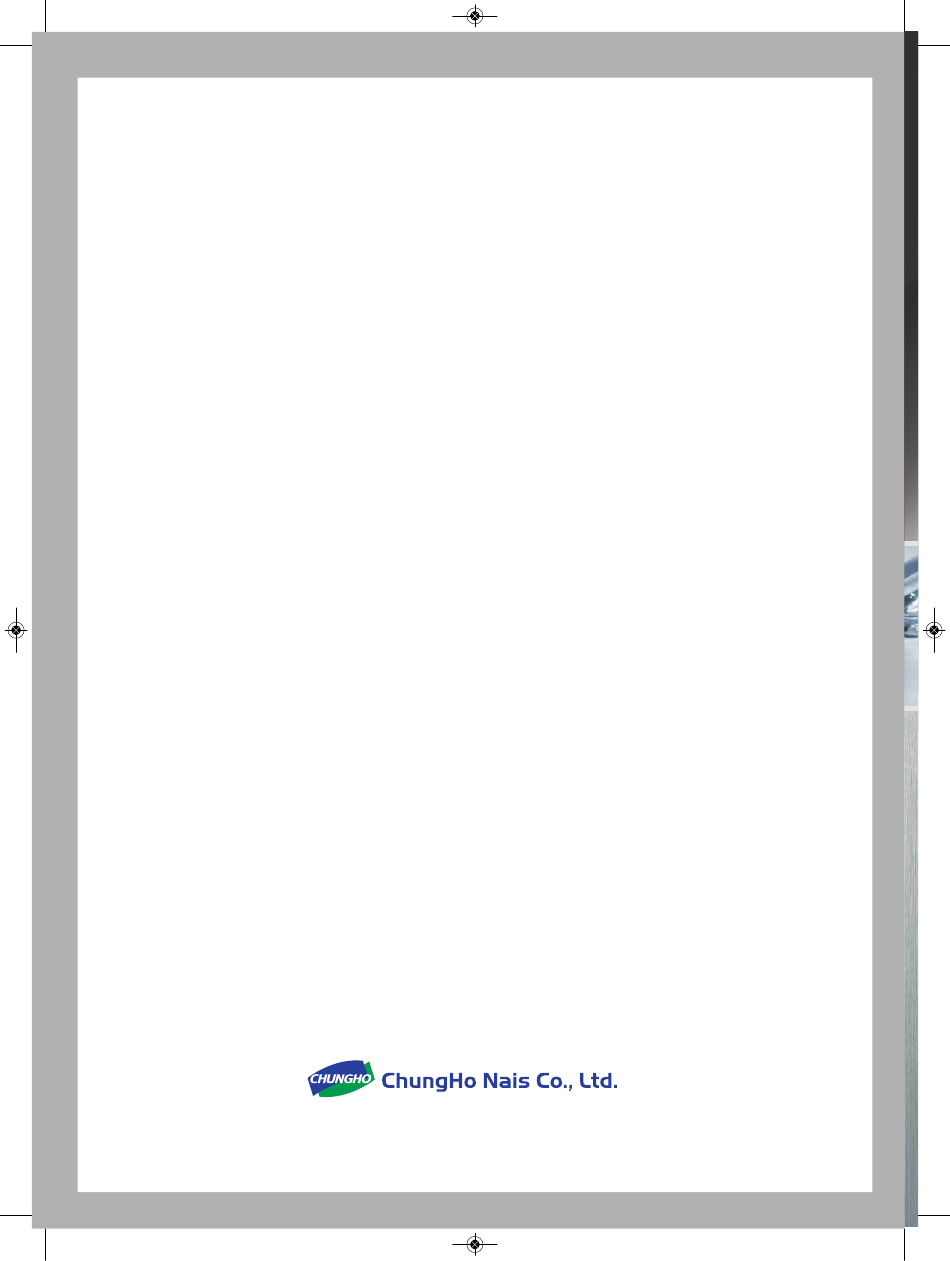

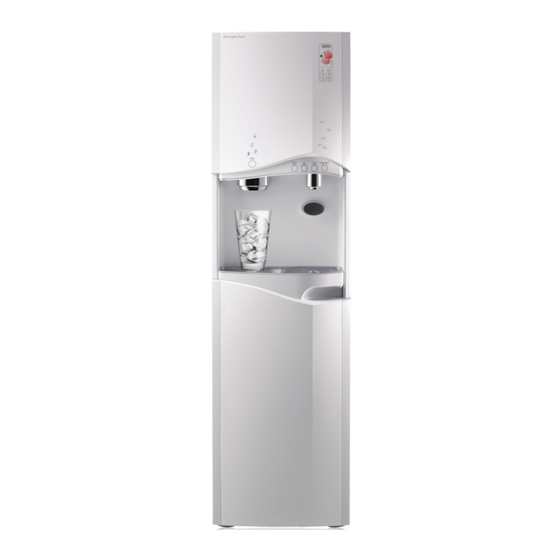

T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 1
2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI, GYEONGGI-DO, KOREA (P.O.BOX: 420-800)
TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr
Rev,No.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Iguassu T-461 and is the answer not in the manual?

Questions and answers

Related Manuals for Chungho Iguassu T-461

Summary of Contents for Chungho Iguassu T-461

  • Page 1 T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 1 2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI, GYEONGGI-DO, KOREA (P.O.BOX: 420-800) TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr Rev,No.00...
  • Page 2 T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 2 ▶ Design and color may differ from the picture. ▶ Product appearance, specification, etc. are subject to change without prior notice if necessary for improving product performance. ▶ The rated voltage of this product is AC 230V/50Hz only. User's Manual...

  • Page 3: Table Of Contents

    Table of Contents T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 3 We greatly appreciate your purchase of IGUASSU T-461. The product is manufactured according to stan- dard specification, and produced with a reliability test on all integrated components. The system is tested thoroughly on strict quality guidelines including temperature, moisture, shock, dust, vibration, drop, etc.
  • Page 4 Water Purification System Providing an Integrated Ice Making Function IGUASSU T-461 is an innovative hybrid of a reverse osmosis water purification system with an ice maker which is utilizing the freezing point method. It is designed not only for a user convenience, but also for a system efficiency which is intended to obtain cold water as a result of making ice.

  • Page 5: Product Features 3~4

    Using natural convection, wire condenser is applied to reduce noise and increase convenience. Beautiful Design IGUASSU T-461 truly displays sophistication and beauty. This harmonizing design and newly refined look can create a modern look for any location. USB Device Charge Function USB port can be used to charge electronic devices such as mobile phones, PDAs, MP3 players, digital cam- eras, and other devices that have 5V USB connections.

  • Page 6: Safety Precautions 5

    2. Safety precautions T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 6 Cautions are divided into 2 categories: 'Danger' 'Caution.' Danger Associated with the possibility for serious injury or death. Keep the cord out of heavy ● traffic areas. (This can lead to overheating the outlet.) When the power cord has been damaged, change ●...
  • Page 7 2. Safety precautions T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 7 aution Associated with the possibility of injury, property damage and reduced performance of product. When taking ice, avoid using a glass ● When taking ice, place a con- ● cup and avoid taking ice with cup tainer close to the ice dispens- filled with beverage, coffee etc.
  • Page 8 2. Safety precautions T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 8 To disconnect the unit, be sure ● After installation, arrange the ● to pull by the plug and not the power cord so that it will not cord. be stepped on or stepped over. (Damage to the power cord can cause an electric shock.) Do not install the product in...

  • Page 9: Names Of Each Part

    3. Names of each part T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 9 USB Port Light detection sensor Ice full display Water full display Drain switch Warm water dispensing touch button Hot water dispensing touch button Cold water dispensing touch button Ambient/Constant water dispensing touch button Water dispensing spout...

  • Page 10: Installation Cautions 9~11

    4. Installation cautions T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 10 Do not install the product at the following places. •Near fire or heater •Near flammable material •Wet place •A place exposed to rain or snow •A place exposed to direct sunlight •Near chemicals(volatile material, organic solvent, etc.) •A place below 32 C) or a place with the possibility of dropping below 32...
  • Page 11 4. Installation cautions T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 11 Do not place any electric heater near the rear of the product. When connecting tube, ensure that the tube is not bent or pressed down by heavy objects, etc. ※If tube is bent or pressed, water does not flow well and can cause problems.
  • Page 12 4. Installation cautions T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 12 20cm Caution Notice of Drain tube installation •Follow the instruction for proper drainage of product. ※Manufacturer is not responsible for any damage or reduced performance from wrong installation. Drain line(3/8") If you put the end of drain tube into remaining Brine line(1/4") water in the U-Trap...

  • Page 13: Installation Method

    5. Installation method T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 13 Install horizontally. Shut off water supply valve and separate the connector part of tap water in order to connect an adapter(source water valve). Then, connect the adapter(source water valve). ※If a sealing rubber(packing) is missing or the thread of a screw is damaged, it may occur water leakage.

  • Page 14: Usage 13~17

    6. Usage T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 14 6-1. Display and function settings (A) Detects a light density of around the product. Hot water system is automatically ON/OFF Light detection sensor in accordance with light density. (This func- tion is valid only when "ECONO"...

  • Page 15: Operation Beep Sound

    6. Usage T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 15 6-3. Operation beep sound ※A beep sound following operation of the IGUASSU T-461. Division BEEP Remarks/occurrence Power ON Ding~Dong~Daeng~ once Key input Ding~ once ICE/LOCK setting Ding~Ding~Ding~ once ICE releasing...
  • Page 16 6. Usage T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 16 •HOT/ECONO function is available only when LOCK is released. (5) Hot water operation setting ① ② Press "HOT/ECONO" for 2 seconds. Press down until "HOT" LED(Red) is turned on. ③ Hot water operation works as turning on “HOT” LED. ※...

  • Page 17: Ice And Water Dispensing Method

    6. Usage T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 17 6-5. Ice and water dispensing method (1) Ice dispensing mode If "ICE"(ice dispense) touch button is pressed, the door of the ice storage is opened and ice is served from the dispensing hole. ※...

  • Page 18: Understanding The Ice Making Process And Operation

    6. Usage T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 18 6-7. Understanding the ice making process and operation Ice making system of the product starts and operates to make ice automatically according to ● program set after power is ON. ①...

  • Page 19: Cautions During Use

    7. Cautions during use T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 19 Refer to the voltage on the front page. Connect to the proper power source. Keep the cord out of heavy traffic areas. (This can lead to overheating the outlet.) Never move the product while in operation.

  • Page 20: Filters

    8. Filters T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 20 8-1. Filter Function Sediment filter ㎛ from the water. It helps It removes particles and pollutants that are over 5 membrane filter function properly. Pre-carbon filter It is made from high temperature processed carbon. it absorbs and eliminates dis- solved pollutants(such as chlorine, THMs and organic chemical contaminants), so it protects the membrane filter and it helps extend the life of the membrane filter.

  • Page 21: Product Specification

    9. Product specification T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 21 Product name IGUASSU T-461 CHP-5170S Refer to the front page 360W X 422D X 1320H(mm) Hot water 500 W Power Cold water 140 W consumption Ice making 125 W 1.2 G (4.7 ℓ...

  • Page 22: Flow Diagram

    10. Flow diagram 11. Recommended replacement part T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 22 Flow restrictor (Stem elbow type) Leakage stop valve Cold water Hot/Ambient water drain drain Part name Replacement cycle Tube 3 years Silicon tube 3 years Solenoid valve 5 years Water level sensor...

  • Page 23: Troubleshooting

    12. Troubleshooting T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 23 Symptom Check point Request follow-up service When the display is when you still have problem Is the power plug Insert the power plug into not turned on and inserted properly? as the power plug is wall outlet properly.

  • Page 24: Memo

    13. MEMO T-461_영문매뉴얼_T_461_메뉴얼_5170S 12. 4. 10. 오후 4:32 페이지 24...
