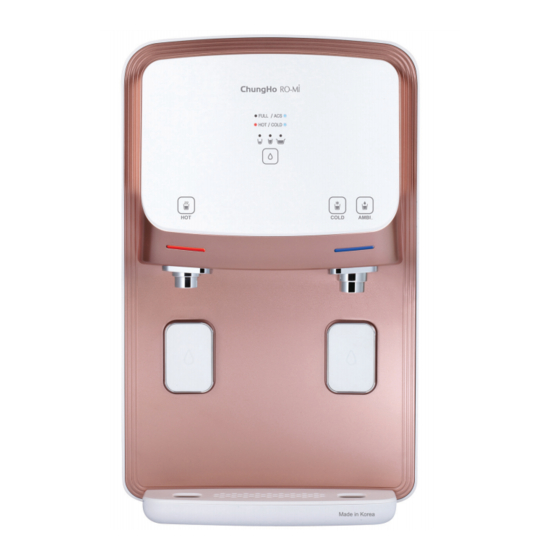

ChungHo Water Purifier EDGE
User's Manual
CHP-3990DL
Read the user's manual thoroughly before using the unit.
•
The rated voltage of this unit is 220-240 V~ / 50 Hz only
•
Unit appearance, specification, etc. are subject to change without
•
prior notice if necessary for improving unit performance.
Design and color may differ from the picture.
•
Advertisement
Table of Contents
Related Manuals for Chungho EDGE CHP-3990DL
Summary of Contents for Chungho EDGE CHP-3990DL
- Page 1 ChungHo Water Purifier EDGE User's Manual CHP-3990DL Read the user's manual thoroughly before using the unit. • The rated voltage of this unit is 220-240 V~ / 50 Hz only • Unit appearance, specification, etc. are subject to change without •...
-
Page 2: Table Of Contents
Greetings We greatly appreciate your purchase of "ChungHo Water Purifier EDGE". This unit is manufactured accord- ing to standard specification, and produced with a reliability test on all integrated components. The sys- tem is tested thoroughly on strict quality guidelines including temperature, moisture, shock, dust, vibration, drop, etc. -
Page 3: Product Features
25 cm. 24 hour natural water circulation system(N.W.P.W) ChungHo Nais purification system is designed to allow water to continuously flow for 24 hours within the water purifier by adopting a natural circulation method. This mode, entitled N.W.P.W. applies the natural weight of water pressure in order to always supply clean and fresh water. - Page 4 1. Product features Display of abnormal occurrence and reinforced safety function The safety features of the unit have been enhanced in order to prevent various problems. The system will inform the user(s) of abnormal occurrences through a flashing display LED and by automatically stopping the water purification function when an abnormality in the system is detected.
-
Page 5: Safety Precautions
2. Safety precautions Cautions are divided into 2 categories: ' ' D D a a n n g g e e r r ' ' ' ' C C a a u u t t i i o o n n . . ' ' Danger Associated with the possibility for serious injury or death. - Page 6 2. Safety precautions Danger Associated with the possibility for serious injury or death. To disconnect the unit, be ● sure to pull by the plug and Close supervision is required ● not the cord. when any appliance is used (Damage to the power cord by or near children.
- Page 7 Caution Associated with the possibility of injury, property damage and reduced performance of product. Do not put any covering on ● the rear and side of the After transporting the product, 30 Minutes ● product. do not supply the power for (Blocking ventilation holes at least 30 minutes to stabilize may raise inside tempera-...
-
Page 8: Installation Cautions
3. Installation cautions Do not install the product at the following places. • Near fire or heater • Near flammable material • Wet place • A place exposed to rain or snow • In front of the cooling and heating device •... -
Page 9: Installation Method
4. Installation method Install horizontally. * The unit is recommended to install on the sink or table above 80 cm from the floor. Shut off water supply valve and separate the connector part of tap water in order to connect an adapter(source water valve). Then, connect the adapter. * If a sealing rubber(packing) is missing or the thread of a screw is damaged, it may occur water leakage. -
Page 10: Usage 10~14
5. Usage Display and Water amount setting(A) WATER FULL Lights up when ambient water tank is full. (Blue) ACS LED Lights up when ACS is set. (Blue) Lights up when "HOT" is set. HOT LED (Hot tank heating : Red, Instant heating : Green) COLD LED Displays cold water selection (Blue) Water amount... -
Page 11: Function Setting And Releasing 11~12
Function setting and releasing • Hot tank heating function setting Press heating selection switch attached on the rear. "HOT" LED is on(Red). • Instant heating function setting Press heating selection switch attached on the rear. "HOT" LED is on(Green). • Hot tank heating / Instant heating function releasing Press heating selection switch attached on the rear. -
Page 12: Water Dispensing Method 12~13
5. Usage 10 SECONDS • Beep function releasing 1. Touch ambient water selection button for 10 seconds to release the beep sound. 2. LED of the front blinks with beep sound. (Releasing sound: Ddiring~ Ddiring) 10 SECONDS Beep function setting ●... - Page 13 ※ If it is not pre-heated, the hot water cannot be dispensed. Instant heating water dispensing mode ● 1. Put the switch on Instant heating on the rear. 2. Please touch the "HOT"(Hot water selection) touch button. ※ Hot water LED blinks. ※...
-
Page 14: Acs Smart Cleaning Function
5. Usage ACS smart cleaning function It is the function to automatically clean the inside of the water tank in order to prevent the contamination during the time when people seldom use the unit once every 4 days. ACS cleaning function makes users to always drink clean and safe water as any chemical and electrolysis equipment is not used. -
Page 15: Cautions During Use
6. Cautions during use Refer to the voltage on the front page. Connect to the proper power source. Keep the cord out of heavy traffic areas. (This can lead to overheating the outlet.) Never move the product while in operation. (This can cause a malfunction.) Do not install the unit in a place where the temperature may drop below 32 °F(0 °C). -
Page 16: Cleaning 16~17
7. Cleaning Water dispensing spout 1. Turn faucet deco to the left to disconnect it from the body. 2. Clean the inside of faucet with cotton swab. ※ Do not use chemicals(Detergent, benzene, thinner etc.) to clean the unit. 3. After cleaning, put it back by turning to the right. - Page 17 4. Loosen the fixed screw at the back side of the unit and separate the ambient tank cover. After wiping the ambient water tank cover with a soft cloth or dry cleaner, assemble the unit again. 5. Open source water valve 6.
-
Page 18: Maintenance
8. Maintenance Section Details - The unit can be installed within recommended water quality range. Location ㎠ (Water pressure : 1.4~7 kgf/ (137~686 kPa)) <Do not install the unit in places below.> Installation - A place exposed to direct sunlight. Environment - Nearby toilet. -
Page 19: Filters
9. Filters Filter function 1/2 step : TCR-Pre-rs-carbon filter The carbon composite filter effectively removes the rust particle and suspended solid. It uses the 3-stage filtration method maintaining the effectiveness of standard sediment while extending the filter replacement cycle. At the same time, it eliminates effectively the dissolved particle in water such as the chorine component, trihalomethanes (THMs), and organic chemicals. -
Page 20: Replacement
10. Replacement 1. Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. 2. Turn the drain switch on the rear of the unit ON. ※ Cold / ambient water is automatically drained for 14 minutes as automatic drain function is applied. -
Page 21: Specification
11. Specification Product name ChungHo Water Purifier EDGE 11.4 Wx20.5 Dx18.7 H(inch) External dimension (290 Wx520 Dx475 H(mm)) Model name CHP-3990DL Compressor Power cord Reciprocating type 1.6 m Net weight Heat radiation type 39.2 Lbs. (17.8 kg) Wire Condenser(Forced convection) -
Page 22: Troubleshooting
12. Troubleshooting ※ It takes approx. 70 minutes to fill empty water tank. (25 °C water temperature) ※ It takes approx. 80 minutes to produce cold water from ambient water. (25 °C water temperature) Symptom Check point Request follow-up service When the display is Is the power plug Insert the power plug into... -
Page 23: Memo
MEMO... - Page 24 ChungHo Malaysia, 10TH FL, FABER IMPERIAL COURT, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA TEL:+60-32-603-1800 / 1800-886677 / E-MAIL: info@chunghomy.com.my / HOMPAGE: www.chunghomy.com.my MANUAL DOWNLOAD: http://www.chunghomy.com.my/base/download Rev,No.00...
