Chungho OMNi User Manual

Ice water purifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

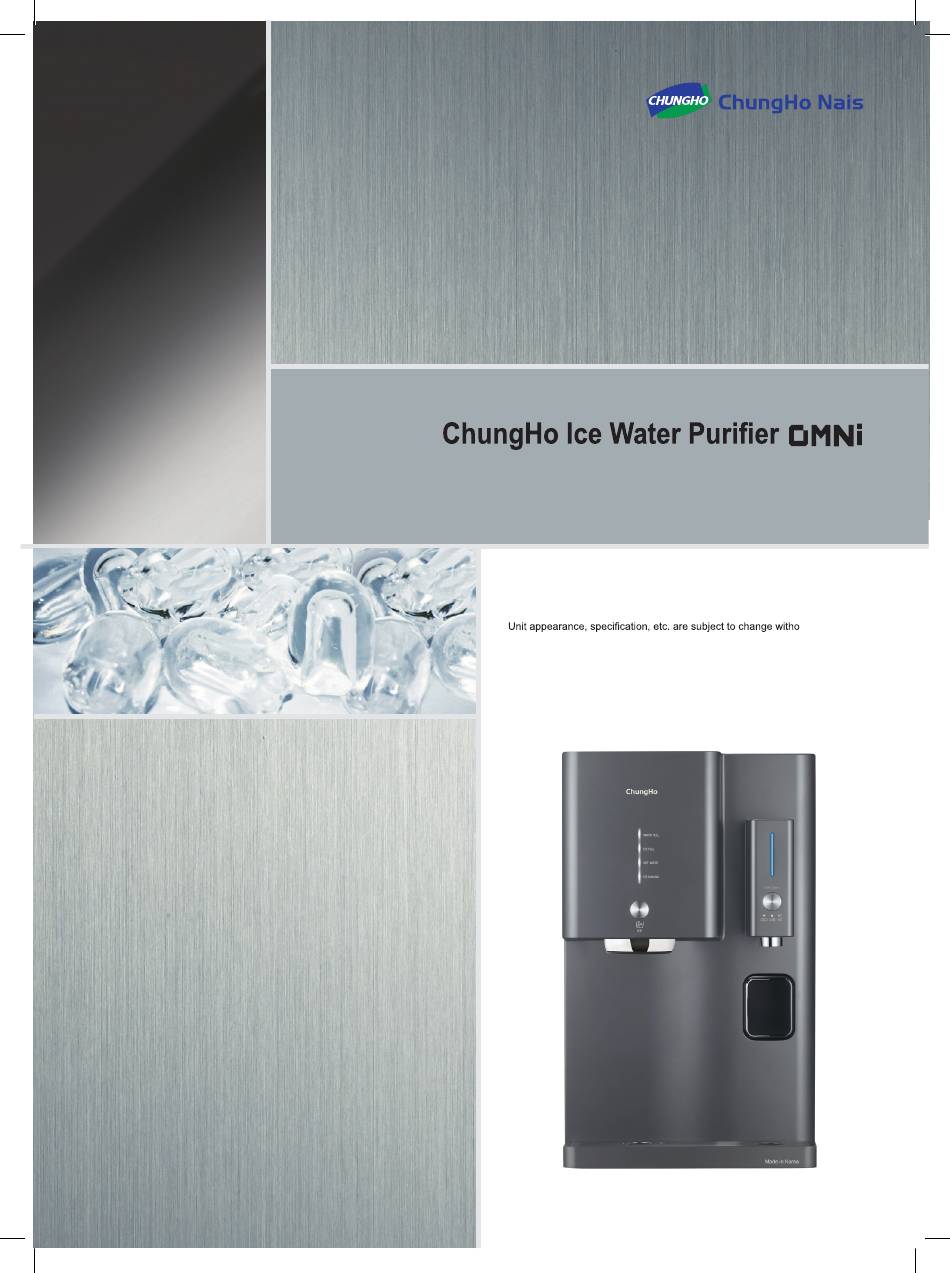

User's Manual
CHP-5460D
* Read the user's manual thoroughly before using the unit.
* Design and color may differ from the picture.
*
ut prior notice
if necessary for improving unit performance.
* The rated voltage of this unit is 220-240 V~ / 50 Hz only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNi and is the answer not in the manual?

Questions and answers

Related Manuals for Chungho OMNi

Summary of Contents for Chungho OMNi

  • Page 1 User's Manual CHP-5460D * Read the user's manual thoroughly before using the unit. * Design and color may differ from the picture. ut prior notice if necessary for improving unit performance. * The rated voltage of this unit is 220-240 V~ / 50 Hz only.

  • Page 2: Table Of Contents

    90% reliability and 95% confidence level through rigorous quality tests that include impact tests, high temperature and humidity, and component reliability test. We are sure that the ChungHo Nais water purifier, which is produced through this production process, will be able to satisfy you with its excellent quality.

  • Page 3: Product Features

    1. Product features Compact size (width: 29 cm) Compact-sized water purifier can be installed freely where you want as effectively utilizing the space. 4 types of water (ICE / COLD / AMBI. / HOT) Improve user convenience by supplying ice, cold, ambient, hot water within one product. Tulip-shaped crystal-clear ice This unit is a new water purifier that makes the tulip-shaped crystal-clear ice by advanced ice making technology.
  • Page 4 1. Product features Constant water dispensing function It enables users to take ambient or cold water constantly by setting constant water function and pressing water dispensing button up to 0.5L. Operation by sensors Hot water temp. sensor/room temp. sensor/ cold water temp. sensor / ice making sensor/ ice full sensor are built in the machine.

  • Page 5: Safety Precautions

    2. Safety precautions ※ Precaution is classified into “Warning” “Caution” and it has the following meaning. In case of possible accident with serious injury or death due to Warning breach of the indication ● Do not use multiple electrical ● If the power cord is damaged, please contact the appliances on one power authorized dealer.
  • Page 6 2. Safety precautions In case of possible Injury or property damage and product degradation due to breach Warning of the indication ● Do not pull on the power cord. Be sure to hold the ● This product is only for power plug to pull it out.
  • Page 7 In case of possible Injury or property damage and product degradation due to breach Caution of the indication ● When taking ice, place a ● When taking ice, avoid using a container close to the ice glass cup and avoid taking ice with dispensing hole not to drop ice cup filled with beverage, coffee etc.

  • Page 8: Installation Precautions

    3. Installation precautions When installing the product, do not install it in the following places. • Nearby fire • Nearby flammable materials • Humid place • In front of the cooling and heating device • Exposed to snow or rain •...

  • Page 9: Installation Guide

    4. Installation guide Service engineer will install the unit. You should check if the unit is properly installed. ※ Install the product vertically. (Vertical degree of product should be adjusted vertically using crutch and verified by leveler) ※ It is recommended to install the product on a sink band or table higher than 80cm above the floor. Shut off water supply valve and separate the connector part of tap water in order to connect an adapter(Source water valve).

  • Page 10: How To Use

    5. How to use Display and function setting WATER FULL Lights up when the deposit tank is full of water. WATER FULL (White) Lights up when the ice reservoir is full of ice. ICE FULL LED ICE FULL (White) Lights up when hot water is set. HOT WATER (Hot tank heating : Orange HOT WATER...

  • Page 11: Activate And Deactivate Functions

    Activate and deactivate functions ● Ice making function setting 1 Turn the ice making switch on the back of the product to the ON position. 2 Ice making LED lights up on the front panel. ● Ice making function off 1 Turn the ice making switch on the back of the product to the OFF position.

  • Page 12: Ice Discharge And Water Dispensing Method

    5. How to use ● Disable the sound effect 1 Press “COLD/AMBI./HOT SELECTION BUTTON” for 10 seconds to release sound functions. 2 "WATER FULL / ICE FULL/HOT/ ICE" LED blinks 5 times with the event. (Releasing sound : Ding- Ding-) ●...
  • Page 13 If there is no heated water, the hot water dispense will not be available. ※ ● Instant heating water dispensing mode 1 Set up the hot water type selection switch on the back of the product to enter instant heating water dispensing mode 2 Select hot water by pressing twice the ‘COLD / AMBI.

  • Page 14: Acs Smart Cleaning Function

    5. How to use ACS Smart Cleaning Function It is the function to automatically clean the inside of the water tank in order to prevent the contamination during the time when people seldom use the unit once everyday 4 days. ACS cleaning function makes users to always drink clean and safe water as any chemical and electrolysis equipment is not used.

  • Page 15: Precautions For Use

    6. Precautions for Use Refer to the voltage on the front page. Connect to the proper power source. Do not use multiple electrical appliances on one power outlet at the same time. (Possible cause of fire due to abnormal electricity outlet heating.) Never move the product during its operation.

  • Page 16: Cleaning

    7. Cleaning How to clean the ice dispensing faucet Push the ice dispensing faucet backward and pull it out to the bottom. Separate the cap from ice dispensing faucet and clean them. Put the cap back into ice dispensing faucet. Align the hook 1 with the hole, then push the hook 2 to backward and push it upwards to insert it.

  • Page 17: How To Clean The Ambient Water/ Cold Water Tank, Ice Storage

    How to clean the ambient water/ cold water tank, ice storage Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. Lift up the filter and turn the drain switch to the ON position.
  • Page 18 7. Cleaning To remove the ice reservoir, first unscrew one set of screw on the front of the ice dispenser using a screwdriver, and then remove the cover. Unplug the two jacks that are connected and hold the circle shaped motor and pull it forward to remove the ice storage tank. Clean the ice storage tank and cold water tank with a soft cloth or dry cleaner, then assemble the cover in reverse order.

  • Page 19: Sanitary Maintenance

    8. Sanitary Maintenance Assification Description Location - The unit can be installed at low water pressure place within water quality range. <Do not install the unit in places below> Installation - A place exposed to direct sunlight. Environment - Nearby toilet. - In front of cooling-heating device.

  • Page 20: Filters

    9. Filters Function of the filter 1/2 step : T-Pre-rs-carbon filter The carbon composite filter effectively removes the rust particle and suspended solid. It uses the 3-stage filtration method maintaining the effectiveness of standard sediment while extending the filter replacement cycle. At the same time, it eliminates effectively the dissolved particle in water such as the chorine component, trihalomethanes (THMs), and organic chemicals.

  • Page 21: How To Replace The Filter

    10. How to replace the filter Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. Turn the drain switch ON after lifting the filter. ※ Cold water and ambient water are automatically drained for 11 minutes.

  • Page 22: Product Specifications

    Product name CHP-5460D Model name 1,750 W Cold water 0.68 A Power consumption Hot water 1,640 W 0.6 A Weather class Product weight 20.6 kg Cold water Ambient water Reservoir capacity 0.57 Hot water 0.5 kg Ambient temperature 20ºC 30ºC Ice making 16 minutes ±...

  • Page 23: Troubleshooting

    12. Troubleshooting ※ I t takes about 40 minutes for each storage tank to become full of water (based on water temperature 25ºC). ※ I t takes about 40 minutes to make cold water from purified water. ※ I t takes about 100 minutes after the cold water generation to make the ice storage pool is in full status. Symptom Check item Request follow-up service...
  • Page 24 The difference in technology is the difference in health. Chungho NISE! Call center: 1588-2290 ChungHo Malaysia, 10TH FL, FABER IMPERIAL COURT, JALAN SULTAN ISMAIL, 50250 KUALA LUMPUR, MALAYSIA TEL:+60-32-603-1800 / 1800-886677 / E-MAIL: info@chunghomy.com.my / HOMPAGE: www.chunghomy.com.my MANUAL DOWNLOAD : http://www.chunghomy.com.my/base/download...
