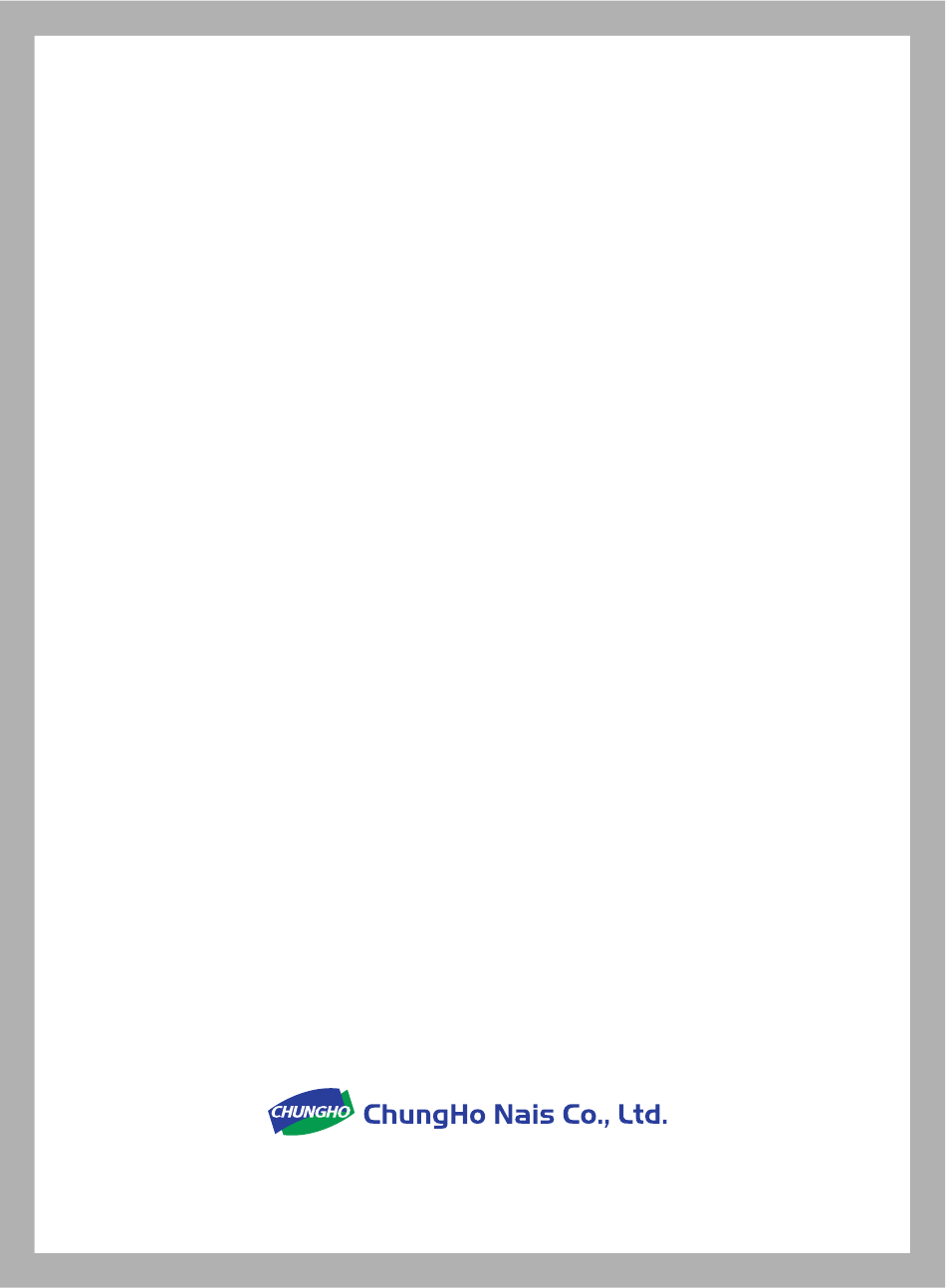

- Page 1 2F. KOMOS B/D, 10, DODANG-DONG, WONMI-GU, BUCHEON-SI,GYEONGGI-DO, KOREA (P.O.BOX: 420-800) TEL: +82-32-672-7431 / FAX: +82-32-671-6531 / E-MAIL: goodeal@chungho.co.kr / http://eng.chungho.co.kr Rev,No.00...
- Page 2 User's Manual CHP - 5321D ▶ Design and color may differ from the picture. ▶ Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance. ▶ The rated voltage of this unit is AC 230V/50Hz only.
-
Page 3: Table Of Contents

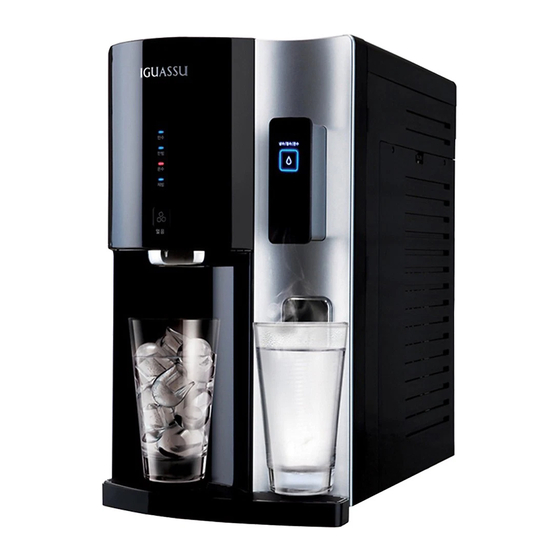

Greetings We greatly appreciate your purchase of the ice-making water purifier, "IGUASSU TINY 900” . IGUASSU TINY 900 is combined by water purifier and ice making machine. The unit is manufactured according to standard specification, and produced with a reliability test on all integrated components. -
Page 4: Unit Features
Water purification system providing an integrated ice making function IGUASSU TINY 900 is an innovative hybrid of a reverse osmosis water purification system with an ice maker which is utilizing the freezing point depression method. It is designed not only for a user convenience, but also for a system efficiency which is intended to obtain cold water as a result of making ice. - Page 5 1. Unit features Water Level Detection Sensor Differed from ordinary float level sensor, the capacitive sensor is used for improving water level detection accuracy without a float. Capacitive sensor stably detects water level in more reliable and safer way. The signal from the sensor is sent to a controller in order to automatically adjust purified water level.
-
Page 6: Safety Precautions
2. Safety precautions Cautions are divided into 2 categories: 'Danger' 'Caution.' Danger Associated with the possibility for serious injury or death. Keep the cord out of ● When the power cord has been damaged, ● heavy traffic areas. exchange the power cord in order to prevent (This can lead overheating danger such as an electric shock, etc. - Page 7 2. Safety precautions Danger Associated with the possibility for serious injury or death. To disconnect the unit, be ● sure to pull by the plug and not the cord. Refer to the voltage on the front page. ● (Damage to the power cord can cause an electric shock.) If there is dust, water or etc Leave the unit unplugged,...
- Page 8 Caution Associated with the possibility of injury, property damage and performance degradation. When taking ice, avoid using a ● When taking ice, place a container ● glass cup and avoid taking ice close to the ice dispensing hole with cup filled with beverage, not to drop ice on the floor.
-
Page 9: Installation Cautions
3. Installation cautions Do not install the unit at the following places. •Near fire or heater •Near flammable material •In front of cooling-heating device •A place exposed to rain and snow •A place exposed to direct sunlight •Wet place •Near chemicals (volatile material, organic solvent, etc.) •A place below 32 °F (0 ) or a place with the possibility of dropping below 32 °F (0 •... -
Page 10: Installation Method
4. Installation method Service engineer install the unit. You should check if the unit is properly installed. ● Install horizontally. The unit is recommended to install on the sink or table above 80 cm from ※ the floor. Shut off water supply valve and separate the connector part of tap water in order to connect an adapter(Source water valve). -
Page 11: Usage 10
5. Usage 5-1. Display and function setting Lights up when water tank is full. (Blue) ICE FULL LED Lights up when ice storage is full. (Blue) Lights up when "HOT" is set. HOT LED (Hot tank heating : Red, Instant heating : Green) ICE MAKING Lights up when ice making operation is set. -
Page 12: Function Setting And Releasing 11
5-2. Function setting and releasing • Ice-making function setting HOT TANK HEATING/OFF/INSTANT ① Put ice making switch ON attached on the rear. ICE MAKING HEATING SELECTION SWITCH ON/OFF SWITCH ② "ICE" LED on the front is lighting. •Ice-making function releasing ①... - Page 13 5. Usage • Constant water function releasing During constant water dispensing, one of the buttons between "COLD/AMBI./HOT" and "WATER DISPENSING BUTTON" is pressed, the function is released. (Releasing sound : Dingdong-Dingdong) "COLD/AMBI./HOT" LED is off. •Beep function releasing ① Press “COLD/AMBI./HOT SELECTION BUTTON” for 10 seconds to release beep seconds function.
-
Page 14: Ice And Water Dispensing Method 13
5-3. Ice and water dispensing method •Ice dispensing mode If "ICE" (Ice selection) touch button is selected and "ICE DISPENS- ING BUTTON" is pressed, ice is served. •Cold water dispensing mode If "COLD"(Cold water selection) touch button is selected and "WATER DISPENSING BUTTON"... - Page 15 5. Usage ※ Hot water is served when instant heating process is completed. • Instant heating water dispensing mode ① Press heating selection switch attached on the rear. Twice ② Touch "COLD/AMBI./HOT SELECTION BUTTON" twice. ※ "COLD/AMBI./HOT" LED(Yellow) blinks. ※ 2.5 minutes are taken until completion of instant heating.
-
Page 16: Acs Smart Cleaning Function
5-4. ACS smart cleaning function It is the smart cleaning function that prevents contamination by automatically cleaning the tank every 4 days, when frequency of use is low. ACS cleaning function which has UV sterilizer as option provides users with always clean and safe water as any chemical and electrolysis equipment is not used. -
Page 17: How To Install Water Tray
5. Usage 5-6. How to install water tray Push the center of water tray until "clattering" sound. 5-7. Understanding the ice making process and operation Ice making system of the unit starts and operates to make ice automatically according to ●... -
Page 18: Cautions During Use
6. Cautions during use Refer to the voltage on the front page. Connect to the proper power source. Keep the cord out of heavy traffic areas. (This can lead overheating to outlet.) Never move the unit while in operation. (It can cause a malfunction.) Do not touch the wire condenser on the rear side of unit. -
Page 19: Cleaning 18
7. Cleaning 7-1. How to clean up ice dispensing hole and water dispensing spout •Ice dispensing spout ① Push the ice dispensing spout backward and pull it out to the bottom. ② Separate cap from ice dispensing deco and clean them. ③... -
Page 20: How To Clean Up The Water Tank 19
7-2. How to clean up the water tank ① Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. ② Turn the drain switch ON after lifting the filter. Cold water and ambient water are automatically ※... - Page 21 7. Cleaning ⑤ How to clean up ice storage and water tank : • • • Loosen the fixed screw on the front Detach the cover Disconnect two connectors. side of ice dispensing hole. • Pull forward motor to take the ice •...
-
Page 22: Sanitary Maintenance
8. Sanitary Maintenance Section Details - The unit can be installed at low water pressure place within water quality Location range. <Do not install the unit in places below> Installation - A place exposed to direct sunlight. Environment - Nearby toilet. - In front of cooling-heating device. -
Page 23: Filters
9. Filters 9-1. Filter functions T-Pre-carbon filter It is made from high temperature processed carbon. it absorbs and eliminates dissolved pollutants(such as chlorine, THMs and organic chemical contaminants), so it protects the membrane filter and helps it function work properly. T-Membrane filter It removes dissolved pollutants.(a molecular weight over 200, such as heavy metals, bacteria and organic chemical contaminants) through RO filtration using a semi-permeable... -
Page 24: How To Replace Filters
10. How to replace filters ① Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. ② Turn the drain switch ON after lifting the filter. Cold water and ambient water are automati- ※... -
Page 25: Specification
11. Specification Model name CHP-5321D Unit name IGUASSU TINY 900 Rated voltage Refer to the front page Cold water 103 W Power consumption Hot water 1500 W Ice making(Heater) 103 W (400 W) N class(90 ° F ± 1 ° F)(32 ℃± 1 ℃) -
Page 26: Flow Diagram
12. Flow diagram Hot water tank Drain Hot/Ambient valve water drain 13. Recommended spare parts Part name Replacement cycle Tube 3 years Silicon tube 3 years Solenoid valve 5 years 3 years Fitting 5 years Booster pump 3 years ~ 5 years ※... -
Page 27: Troubleshooting
14. Troubleshooting Symptoms Checking points Request follow-up service When the display is Is the power plug Insert the power plug into when you still have not turned on and inserted properly? problem as the power wall outlet properly. not operated. plug is inserted properly. -
Page 28: Memo
15. MEMO...
