▶ Read the user's manual thoroughly before using the unit.
▶ Design and color may differ from the picture.
▶ Unit appearance, specification, etc. are subject to change without
prior notice if necessary for improving unit performance.
▶ The rated voltage of this unit is 220-240 V~ / 50 Hz only

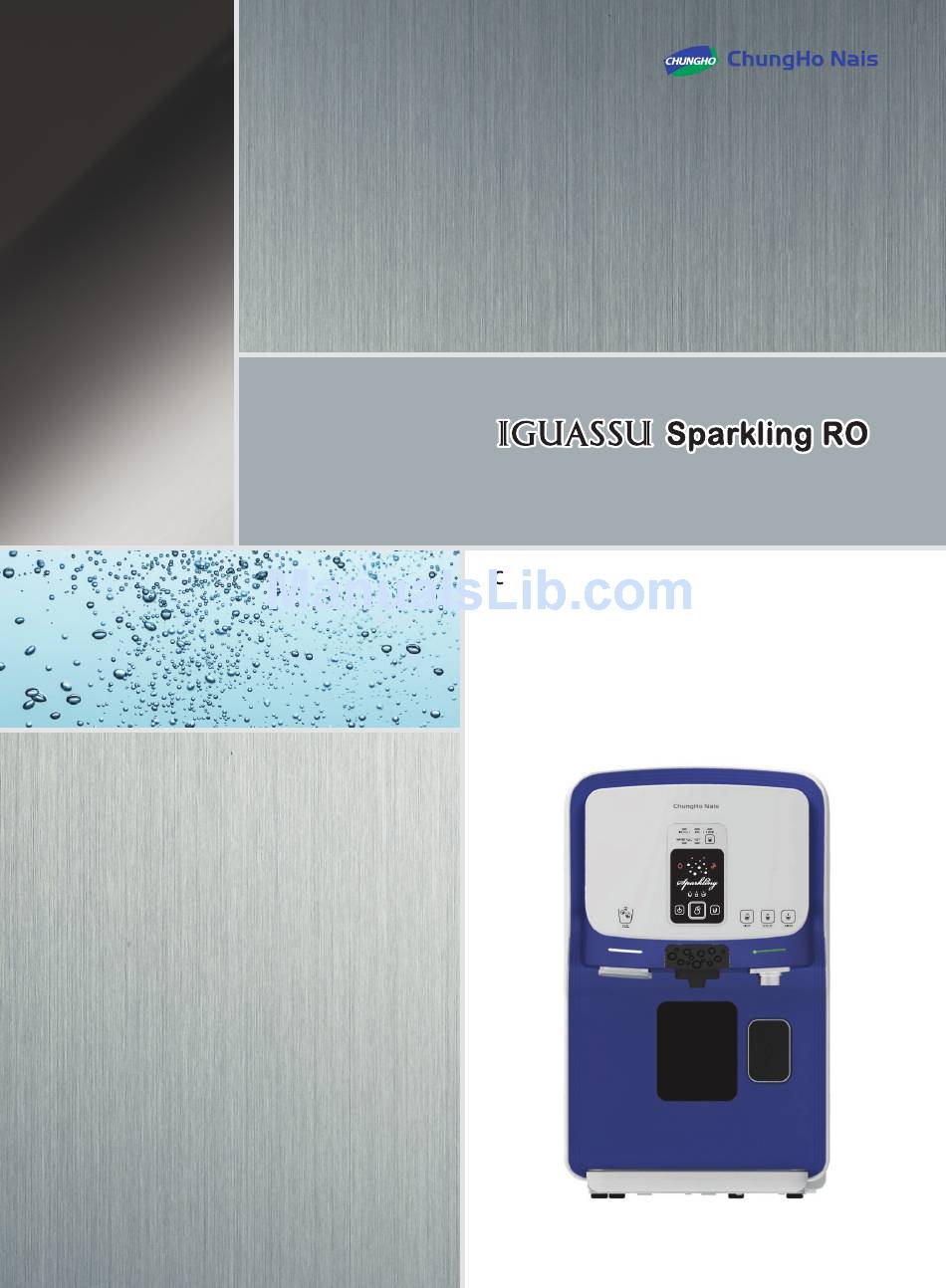

User's manual
HP-5361DL
Advertisement
Table of Contents
Related Manuals for Chungho IGUASSU SPARKLING RO
Summary of Contents for Chungho IGUASSU SPARKLING RO
- Page 1 ▶ Read the user's manual thoroughly before using the unit. ▶ Design and color may differ from the picture. ▶ Unit appearance, specification, etc. are subject to change without prior notice if necessary for improving unit performance. ▶ The rated voltage of this unit is 220-240 V~ / 50 Hz only User's manual HP-5361DL...
- Page 2 24 hour natural water circulation system(N.W.P.W) ChungHo Nais purification system is designed to allow water to continuously flow for 24 hours within the water purifier by adopting a natural circulation method. This mode, entitled N.W.P.W. applies the natural weight of water pressure in order to supply always clean and fresh water.
-
Page 3: Table Of Contents
Greetings . 제품의특징 We greatly appreciate your purchase of "IGUASSU SPARKLING RO". This unit is manufactured according to standard specification, and produced with a reliability test on all integrated components. The system is tested thoroughly on strict quality guidelines including temperature, moisture, shock, dust, vibration, drop, etc. -
Page 4: Safety Precautions 03 ~06
Safety precautions ‘Danger’ ‘Caution’ Cautions are divided into 2 categories : Danger Associated with the possibility for serious injury or death. When the power cord has ● been damaged, change the Keep the cord out of heavy power cord in order to ●... - Page 5 Danger Associated with the possibility for serious injury or death. Do not install the unit in or ● around largely damp areas, If the unit is damaged or ● at a place near flammable malfunctioning, do not disa- materials, or at a place ssemble, repair, or remodel it exposed to rain or snow.
- Page 6 Safety precautions aution Associated with the possibility of injury, property damage and reduced performance of unit. When taking ice, avoid using a glass ● When taking ice, place a contain- ● cup and avoid taking ice with cup er close to the ice dispensing filled with beverage, coffee etc.
- Page 7 aution Associated with the possibility of injury, property damage and reduced performance of unit. Do not insert the fingers into ● While carbonated water is extract- ● carbonated water outlet with ing, never try to separate the car- holder separated. bonated water holder.
-
Page 8: Names Of Each Part
Names of each part Ice full display Ice making display Lock display ICE/LOCK setting touch button Water full display Hot water display Carbonated water extract display and control panel Hot water selection touch button Ambient water selection touch button Ice dispensing touch button Cold water selection touch button Ice dispensing display... -
Page 9: Installation Cautions
Installation cautions Do not install the unit at the following places. • Near fire or heater • Near flammable material • Wet place • Near the toilet • A place exposed to rain or snow • A place exposed to direct sunlight •... -
Page 10: Installation Method
Installation method Install horizontally. ※ The unit is recommended to install on the sink or table above 80 cm from the floor. Shut off water supply valve and separate the connector part of tap water in order to connect an adapter (source water valve) . -
Page 11: How To Use Carbonated Water 10
How to use carbonated water Extract button for carbonated water Turns ON/OFF the carbonated Power button water function. Used to extract the carbonated carbonated water extracting button water Carbonated water Used to set the amount of carbon- amount selection ated water button LED display for carbonated water Animation for... - Page 12 How to use carbonated water ① Touch "POWER". ※"No water" LED blinks when water is empty in the tank. ※"No gas" LED blinks when gas is empty. ※Extracting carbonated water causes noise and vibration of pump. ② Put the cup on the carbonated water tray. ※When users use small size of cup, press the button in the bottom of tray to take it out.
-
Page 13: How To Use Carbonated Water Tray
How to use carbonated water tray Adjust the height of carbonated water tray so as not to splash the carbonated water in surrounding area. ● <Low> <Middle> <High> For tumbler or big sized mug For mug or big sized paper For general sized paper cup cup(Less than 400 ㎖) (Around 180 ㎖) -
Page 14: How To Replace The Cylinder
How to use carbonated water How to replace the cylinder ① Gas cylinder is placed under back of the unit. ② Lift the cylinder and turn to the left to pull it off. ※Remaining gas can be discharged with gas leaking sound. ※When replacing the cylinder, turn it slightly to discharge the remaining gas and separate it by turning 2~3 times more. -
Page 15: Replacement Cycle Of Cylinder
Replacement cycle of cylinder - No gas LED blinks when touching the "POWER" button. - Water flow is weak when extracting carbonated water. - When gas concentration is weak. ※ Replacement cycle of cylinder is varied depending on actual working condition. ※... -
Page 16: Operation
Operation Display and function settings (A) Lights up when ice storage is full. ICE FULL LED (Red) ICE LED Lights up when "ICE" is set. (Red) LOCK LED Lights up when "LOCK" is set. (Red) Lights up when ambient water tank is full. WATER FULL LED (Red) Lights up when "HOT"... -
Page 17: Usage 16
Usage Function setting and releasing • Hot tank heating function setting Press heating selection switch attached on the rear. "HOT" LED is on(Red). • Standby heating function setting Press heating selection switch attached on the rear. "HOT" LED is on(Yellow). •... - Page 18 Usage Constant water dispensing function ● 2 SECONDS 1. It is the function to use constant water dispensing. Please push the button for 2 seconds. It beeps and this function is set. (LED blinks when using this function.) 2. If you touch the dispensing button when constant dispensing function is set, it beeps and the water is continuously dispensed.
-
Page 19: Ice And Water Dispensing Method 18 ~19
Ice and water dispensing method Ice dispensing mode ● If "ICE"(ice dispenser) touch button is pressed, the door of the ice storage is opened and ice is served from the dispensing hole. Cold water dispensing mode ● If "COLD"(cold water selection) touch button is selected and water dispensing button is pressed, cold water is served. -
Page 20: Smart Cleaning Function
Usage If it is not pre-heated, the hot water cannot be dispensed. ※ Standby heating water dispensing mode ● 1. Set heating mode as standby heating. 2. Please touch the "HOT"(Hot water selection) touch button. Hot water LED blinks(Yellow). ※ ※... -
Page 21: Cautions During Use
Cautions during use WARNING : connect to potable water supply only. ※ Refer to the voltage on the front page. Connect to the proper power source. Keep the cord out of heavy traffic areas. (This can lead overheating to outlet.) Never move the unit while in operation. -
Page 22: Cleaning 21
Cleaning Water tank 1. Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. 2. Turn the drain switch ON on the rear of the unit. ※ The cold / ambient water can be drained for 10 minutes by an auto drainage function. -
Page 23: Ice Dispensing Spout
10. Check if cold/ambient water is served after 40 minutes. 11. Drain the newly purified water completely once and use it. Check point ※ Wash your hands first and put on sanitary gloves. Clean up the tank with soft cloth or dry cleaner. -
Page 24: Water Dispensing Spout
Cleaning Water dispensing spout 1. Turn faucet deco to the left to disconnect it from the body. 2. After cleaning, put it back by turning to the right. Carbonated water spout 1. Pull out the carbonated water tray by pressing both sides of buttons. 2. -
Page 25: Maintenance
Maintenance Section Details - The unit can be installed within recommended water quality range. Location (Water pressure : 1.4~7 kgf/㎠ (137~686 kPa)) <Do not install the unit in places below.> Installation - A place exposed to direct sunlight. Environment - Nearby toilet. - In front of cooling or heating device. -
Page 26: Filters
Filters Filter function TCR-Pre-carbon filter This carbon block filter was compressed in a high temperature. It efficiently removes a suspended solid, rust debris in a first stage and it minimizes a decrease in a flow caused by a turbidity material. And it eliminates chlorine, trihalomethane, organic chemicals in a second stage and protect the membrane filter. -
Page 27: Replacement
Replacement 1. Shut off the source water valve and detach the cover after loosening the fixed screw on the right side of the unit. 2. Turn the drain switch on the rear of the unit ON. ※ Cold / ambient water is automatically drained for 8 minutes as automatic drain function is applied. -
Page 28: Specification
Specification Unit name IGUASSU SPARKLING RO Model name CHP-5361DL Net weight 22 kg 1,640 W Hot water 96 W Cold water Power consumption Ice making 90 W 1,800 W 0.7 ℓ Sparkling water 2.4 ℓ Ambient water Reservoir capacity 0.57 ℓ/ 1.6 ℓ... -
Page 29: Flow Diagram
Flow diagram Recommended replacement partgram Water level sensor Flow restrictor (Stem Elbow) Air vent Sparkling Ice making unit water Ambi. tank tank Ice storage Solenoid valve Hot water dispenser Hot tank Hot selection v/v Cold Tank Ice making pump Ambient water steri- dispenser lizer... -
Page 30: Troubleshooting
Troubleshooting Symptoms Check points Request follow up service When the display Is the power plug Insert the power plug into when you still have problem is not turned on even the power plug is inserted properly? wall outlet properly. and not operated. inserted properly. -
Page 31: Memo
Memo... - Page 32 2F, NAIS B/D, 28, SAIMDANG-RO, SEOCHO-GU, SEOUL, KOREA. (Postcode: 06651) TEL: +82-2-3019-5141 / FAX: +82-2-3019-5270 / E-MAIL: goodeal@chungho.co.kr / HOMEPAGE: http://eng.chungho.co.kr Rev No.00 Rev No.01...
