Summary of Contents for Guilin Woodpecker Medical Instrument MT3

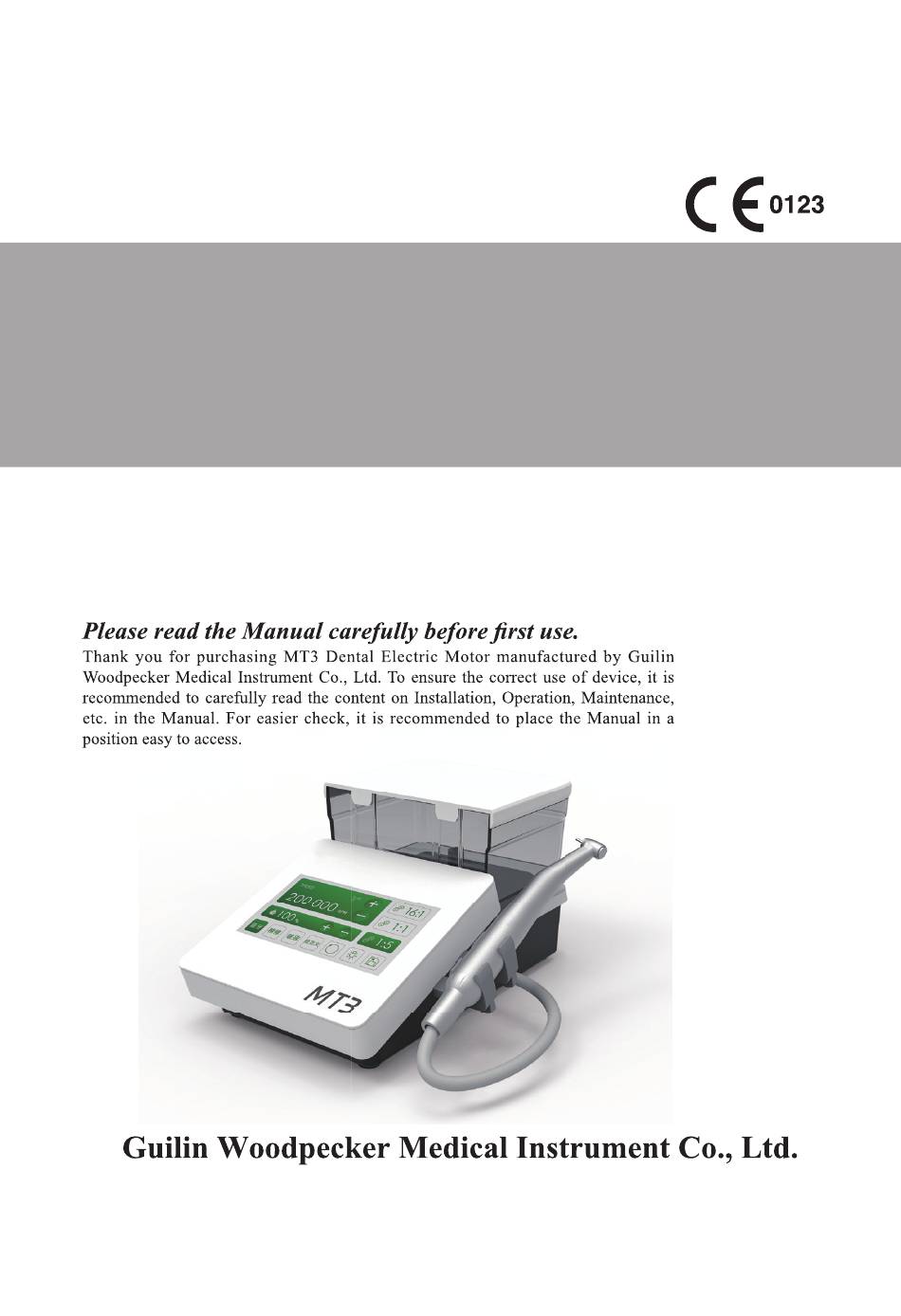

- Page 1 Dental Electric Motor Instruction...
-
Page 2: Table Of Contents
Content Forward ---------------------------------------------------------------------------1 1 Introduction --------------------------------------------------------------------1 2 Basic technical parameters --------------------------------------------------3 3 Product performance structure and composition --------------------------4 4 Main unit interface ------------------------------------------------------------7 5 Function and operation -------------------------------------------------------7 6 Safety precautions -------------------------------------------------------------9 7 Clean, disinfection, and sterilization -------------------------------------- 1 0 8 Troubleshooting -------------------------------------------------------------- 1 5 9 Storage and transport -------------------------------------------------------- 1 5 10 After-sales service ---------------------------------------------------------- 1 6... -
Page 3: Forward
EMC environment. (3) Device with electromagnetic transmitting will affect the normal operation of MT3. Please do not run both devices at the same time. (4) Do not use it in operating rooms that contain a mixture of potentially flammable gases. - Page 4 1.4 Model 1.5 Contraindications None known 1.6 Safety requirements Guilin Woodpecker Medical Instrument Co., Ltd. will not be liable for any direct or indirect damages and losses under the following conditions:...
-
Page 5: Basic Technical Parameters
• During the process of use, the operator is in direct contact with the contra-angle. The contra-angle is made of copper. 2 Basic technical parameters 2.1 Specification of main unit Model: MT3 Software version: MT3-V1.0.0 Size: 278.5mm×157.5mm×137mm 2.2 Specification of power Power supply input: 100-240V~ 50/60Hz 100VA 2.3 Motor specification Model: E-MT Rotation speed: 2000-40 000 rpm;... -
Page 6: Product Performance Structure And Composition
comply with the Type 2 or Type 3 of ISO 3964-2016. 2.5 Use environment 2.5.1 Ambient temperature: +5℃ ~ +35℃ 2.5.2 Relative humidity: 30% ~ 75% 2.5.3 Atmospheric pressure: 70kPa ~ 106kPa 2.6 Device safety classification 2.6.1 Type of protection against electric shock: Class II equipment 2.6.2 Degree of protection against electric shock: Type B applied part 2.6.3 Degree of protection against harmful ingress of water: Ordinary equipment (IPX0). - Page 7 WARNING:When using manual mode, the contra-angle handpiece is less than 3 minutes per contact. 3.2 Front View of the Main Unit Figure 1 3.3 Rear view of the main unit Figure 2 3.4 Connecting / disconnecting the motor and the motor cord 3.4.1 Align and insert firmly the Motor Pin into the pin holes of the Motor Cord Connector, and fasten the Motor Cord Nut securely.
- Page 8 motor cord nut, and gently pull out the motor cord connector. Figure 3 3.5 Schematic disgram of motor installation Figure 4 A. Connect, align and insert the motor and motor tail connections, twist the nut of the motor tail cord. B.
-
Page 9: Main Unit Interface
insert it to the end. 3.6.4 Water tank installation: the side with two grooves on the water tank faces the screen of the host computer, and then align the water hole plug to assemble the water tank to the bottom. At this time, the bottom of the water tank is close to the upper surface of the main unit shell. - Page 10 Store Store the set parameters Forward/Reverse Control the forward and rotation reverse rotation of motor Turn on/off the motor Light Light. Custom User-defined mode Prep Tooth preparation mode Finish Refinement mode Crown Crown-splitting mode Display the set Water volume percentage of water Display the set operating Speed speed...
-
Page 11: Safety Precautions
5.5.4 Store the set speed ratio, speed, mode, forward rotation/reverse rotation, and the ON/OFF of LED by touching key “4” 5.5.5 Press user-defined button “5” and enter User-define mode. 5.5.6 Press crown-splitting button “6” and enter Crown-splitting mode. 5.5.7 Press refinement button “7” and enter Refinement mode. 5.5.8 Press tooth preparation button “8”... -
Page 12: Clean, Disinfection, And Sterilization
6.5 Test the dental electric motor before use to ensure accurate operation. 6.6 If the dental electric motor is permanently malfunctioning (excessive vibration, noise and heat generation, etc.), please immediately close it and return it to the authorized dealer. 6.7 Clean the control panel with a damp cloth and turn off the power before cleaning. - Page 13 Remove gross contaminants from the components with cold flow water immediately after use. And then removing the contra-angle from the motor handpiece, and then remove the motor from the Motor Cord. Store the instruments in a humid surrounding and Waiting for transfer . Warning:Don’t use a fixating detergent or hot water (>45 °C) as this Preparation can cause the fixation of residuals which may influence the result of the...
- Page 14 Tools: tray, syringe, hose, clean and dry soft cloth ① Install the bearing protection sleeve. ② Use a syringe to draw 500ml of purified water to flush the waterway and atomization airway to remove contaminants in the inner cavity. Do not clean the cooling air circuit, otherwise it will damage the motor.
- Page 15 Notice: 1) Never reprocess this medical device in an ultrasonic device. Otherwise cause malfunction and material damage. 2) Do not allow any liquid enter internally into the motor either by the nose or hose connector. 3) Please do not use an automatic Washer-disinfector to clean the motor, otherwise the water and cleaning agents will cause damage to the motor.
- Page 16 Drying should be conducted after cleaning.Wipe off the residual water stains Drying on the surface of the test sample with dry absorbent soft cloth. Visual inspection: Before packaging and auto sterilization, make sure that the motor has been maintained according. to manufacturer's instruction. Visually check the integrity of the dental handpiece and the cleanliness of the device: Check the motor: Maintenance...
-
Page 17: Troubleshooting
Reprocessing It is the duty of the user to ensure that the e reprocessing processes validation including resources,materials and personnel are capable to reach the required study results. State of the art and often national law requiring these processes and information included resources to be validated and maintained properly. -
Page 18: After-Sales Service
9.3 This machine should be stored in a room where the relative humidity is10% ~ 93%, atmospheric pressure is 70kPa ~ 106kPa, and the temperature is - 20℃ ~ +55℃. 9.4 Excessive impact and shake should be prevented during transport. Lay it carefully and lightly. -
Page 19: Symbol Instruction
Mechanical elements, ○ ○ ○ ○ ○ ○ including bolts, nuts, washers, etc. ○: Indicates that the content of the toxic substance in all homogeneous materials of the part is below the limit requirement stipulated in SJ/T-11363- 2006 Limit Requirements for Toxic and Hazardous Substances in Electronic Information Products. -
Page 20: Emc-Declaration Of Comformity
Guidance and manufacturer’s declaration - electromagnetic emissions The model MT3 is intended for use in the electromagnetic environment specified below. The customer or the user of the model MT3 should assure that it is used in such an environment. Electromagnetic environment... - Page 21 Guidance & Declaration — electromagnetic immunity The model MT3 is intended for use in the electromagnetic environment specified below. The customer or the user of the model MT3 should assure that It is used in such an environment. IEC 60601...
- Page 22 Conducted RF & Radiated RF Guidance & Declaration - Electromagnetic immunity The model MT3 is intended for use in.the electromagnetic environment specified below. The customer or the user of the models MT3 should assure that it is used in such an environment. IEC 60601...
- Page 23 Conducted RF 3 Vrms Portable and mobile RF lEC 61000-4-6 150 kHz to 80 communications equipment Conducted RF 3V/m should be used no closer to any lEC 61000-4-6 6 Vrms part of the models MT2, including Radiated RF cables, than the recommended lEC 61000-4-3 frequency separation distance calculated...
- Page 24 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model MT3 is used exceeds the applicable RF compliance level above, the model MT3 should be observed to verify normal operation.
- Page 25 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) accordable to the transmitter manufacturer.
- Page 26 ZMN-SM-141 V1.2- 20220519...
