Page 2: Table Of Contents
Contant Preface --------------------------------------------------------------------- 2 1. Introduction ------------------------------------------------------------- 2 2. Product Performance Structure and Components ---------------- 2 3. Basic Technical Specifications --------------------------------------- 3 4. Installation -------------------------------------------------------------- 4 5. Operation -------------------------------------------------------------- 5 6. Precaution -------------------------------------------------------------- 9 7. Cleaning, Disinfection and Sterilization ----------------------------- 10 8. -
Page 3: Preface

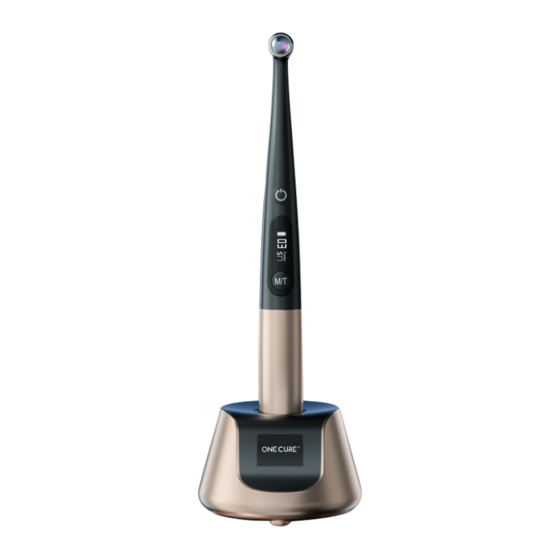

Preface Guilin Woodpecker Medical Instrument Co., Ltd. is a high-tech enterprise in researching, developing, and producing dental equipment, and has a perfect quality assurance system, main products including ultrasonic scaler, curing light, apex locator and ultrasurgery etc. 1. Introduction 1.1 Features: 1.1.1 Seven working modes: Normal, High, Turbo, Ortho, Soft, Pulse and... -
Page 4: Basic Technical Specifications
3. Basic Technical Specifications 3.1 Size of main uint: 23mm×23mm×204mm 3.2 Net weight of main unit: 108g Top of main unit, Point cure lens 3.3 Applied parts of the equipment: 3.4 Duty cycle of the equipment: 20 Sec on/20 Sec off 3.5 The components of machine(Packing list): 1.Maint unit *1 2.Top of main unit *1... -
Page 5: Installation
Output: 5.0V The adapter must be complies with IEC 60601-1 and IEC 60601-1-2. 3.7 Light source: 3.7.1 10W high power 3.7.2 Wave length: 385nm~515nm 3.7.3 Class: class 2 3.7.4 AEL: 3.9×10 3.7.5 Check method: When operate machine properly, LED luminous means LED is in good condition. -
Page 6: Operation
otherwise it will not be charged because it cannot plug in the charging interface. It is forbidden to insert the main unit into the charging base in an improper direction, otherwise the main unit and charging base will be damaged. 5. - Page 7 5.2 Charging base screen display 5.3 Working mode setting Short press “M/T” button: Schematic diagram of working mode setting interface Short press the “M/T” button to select the working mode. Seven working modes can be selected: Normal, High, Turbo, Ortho, Soft, Pulse and Check. Because the curing time of different modes is different, when switching modes, the curing time will automatically follow the switching.
- Page 8 Ortho 3*5, 3*10 2700-3000 Soft 5, 10, 15, 20 1000-1200 Pulse 5, 10, 15, 20 1000-1200 Check 30, 60 Working mode setting Press and release “M/T” button quickly to cycle to next working mode. Curing time setting Press and hold “M/T” button 1 second and re- lease.
- Page 9 disposable sleeve, flush into the marked recess on the upper side of the charging base. Then activate the light and read the value displayed on the screen. Measurement accuracy is in the range of +/–10%. CAUTION: If the tip of the top of main unit is placed obliquely to measure the light intensity, there will be obvious deviation in the measured light intensity value.
-
Page 10: Precaution
icon on the charging base screen will scroll to show that it is charging. When the battery icon on the charging base screen stops scrolling and displays full charge, it means that the battery is fully charged. 5.15 When operating finish, please clean the top of the main unit with calico to avoid infecting the light intensity. -
Page 11: Cleaning, Disinfection And Sterilization
Prohibit aiming light at eyes directly. 6.10 Only the original adapter could be used, because other brand adapters are likely to damage the circuit. 6.11 It is forbidden to use metal or other conductors to touch the charging point of main unit, because it may burn the internal circuit or make the lithium short circuit. - Page 12 ageing of the products. The maximum number of sterilizations for optical fiber is 500 times. 7.1 Initial processing 7.1.1 Processing principles It is only possible to carry out effective sterilization after the completion of effective cleaning and disinfection. Please ensure that, as part of your responsibility for the sterility of products during use, only sufficiently validated equipment and product-specific procedures are used for cleaning/disinfection and sterilization, and that the validated parameters are adhered to during every...
- Page 13 ISO15883. For the specific procedure, please refer to the automated disinfection section in the next section “Disinfection”. Notes a) The cleaning agent does not have to be pure water. It can be distilled water, deionized water or multi-enzyme. But please ensure that the selected cleaning agent is compatible with the product.
- Page 14 lasting for 1 minute. (c2) In the washing stage, the water temperature should not exceed 45 °C, otherwise the protein will solidify and it is difficult to remove. (c3) The solution used can be pure water, distilled water, deionized water or multi- enzyme solution, etc., and only freshly prepared solutions can be used.
- Page 15 corroded or bent, it must be scrapped and not allowed to continue to be used. 7.6.3 Check the product. If the accessories are found to be damaged, please replace it before use. And the new accessories for replacement must be cleaned, disinfected and dried.
-
Page 16: Contraindication
* Fractional pre-vacuum procedure = steam sterilization with repetitive pre- vacuum. The procedure used here is to perform steam sterilization through three pre-vacuums. 7.9 Storage 7.9.1 Store in a clean, dry, ventilated, non-corrosive atmosphere with a relative humidity of 10% to 93%, an atmospheric pressure of 70KPa to 106KPa, and a temperature of -20 °C to +55 °C;... -
Page 17: Troubleshooting
instruments, which may damage or scratch the housing surfaces. 9.3 Routinely check the lens for cured dental resins. If necessary, use a non- diamond dental instrument to carefully remove any adhered resin. 9.4 This equipment does not include the self-maintainable spare parts.The maintenance of this equipment should be taken by the appointed professional or special repair shop. -
Page 18: Storage And Transportation
1. Clean the resin. 1. There is resin on the lens Light intensity is 2. Replace the lens assembly with a new of top of main unit. weak. one, please contact our special repair 2. Lens damage. shop or us. Effective Replace the battery with a new one, duration of the... -
Page 19: Emc - Declaration Of Conformity
Class II equipment Used indoor only Appliance compliance Follow Instructions for Use WEEE directive Atmospheric pressure for Temperature limitation for storage storage Humidity limitation for storage CE marked product Optical radiation Mode / Time setting button, short press adjustment working mode, long press adjustment curing time Authorised Representative in the EUROPEAN COMMUNITY 15. - Page 20 Guidance & Declaration — electromagnetic immunity The device are intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that It is used in such an environment. IEC 60601 test Compliance level Electromagnetic Immunity test level environment - guidance...
- Page 21 Immunity IEC 60601 test Compliance Electromagnetic environment - test level level guidance Portable and mobile RF communications equipment should be used no closer to 3 Vrms any part of the device, including 3 Vrms 150 kHz to 80 cables, than the recommended 150 kHz to 80 separation distance calculated from the equation applicable to...
-
Page 22: Statement
All rights of modifying the product are reserved to the manufacturer without further notice. The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several parents by... - Page 23 ZMN-SM-426 V1.0-20210609...
