Summary of Contents for Guilin Woodpecker Medical Instrument Endo 1
-
Page 2: Table Of Contents
Contents Preface -------------------------------------------------------------------- 1 1 Product introduction --------------------------------------------------- 1 2 Product components ------------------------------------------------- 1 3 Basic technical parameters ------------------------------------------- 2 4 Installation and removal method ------------------------------------- 3 5 Operation -------------------------------------------------------------- 5 6 Charging instructions -------------------------------------------------- 5 7 Safety precautions ----------------------------------------------------- 5 8 Product contraindications --------------------------------------------- 6 9 Cleaning, disinfection and sterilization ------------------------------- 6 10 Daily maintenance -------------------------------------------------- 1 3... -
Page 3: Preface

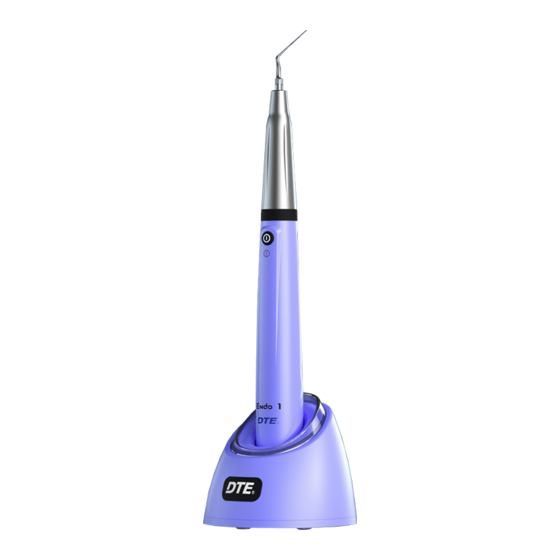

1.3.2 Scope of application Endo 1 Ultrasonic Endo Activate Device applies to root canal irrigation. 2 Product components Product model: Endo 1. This product is composed of host, handpiece,... -
Page 4: Basic Technical Parameters
3 Basic technical parameters 3.1 Dimensions: 246mm×25mm×25mm 3.2 Net weight: 99g 3.3 Machine configuration list: See details in packing list 3.4 Classified by power supply: Powered by rechargeable batteries 3.5 Rechargeable lithium battery: Battery model: DLG14500 Nominal voltage: 3.6V Capacity: 750mAh 3.6 Power adapter: Input: ~100V-240V 50Hz/60Hz 0.5-0.2A Output: DC 5V/1A... -
Page 5: Installation And Removal Method
3.7 Working tip parameters: Output tip vibration frequency: 45kHz±4kHz 3.8 Environment parameters: Environment temperature: +5°C ~ +40°C Relative humidity at 30% -75% Atmospheric pressure:70kPa ~ 106kPa 3.9 Device safety classification: Classified by operation mode: Short time operating device Type of protection against electric shock: Class II equipment with internal power supply Degree of protection against electric shock: BF type applied part Degree of protection against harmful ingress of water: Ordinary... - Page 6 4.2 Screw the tip in clockwise direction and press the button to use the machine. The methods of removing tips are as follow:...
-
Page 7: Operation
4.3 When replacing the battery, please open the battery cover, first remove the lithium battery, and then gently pull out the plug-in, put the new battery connector plug correctly into the host, and then put new battery in. Put the battery cover on the host mounting port, push up, and cover the battery. -
Page 8: Product Contraindications
(Irrigation Mode) as the tip is vibrating. 7.6 The tip must be tightly screwed. 7.7 During operation, it is necessary to drip water for cooling. At the same time, the water dripping instrument needs to be isolated from the earth. 7.8 The damage or wear of working tip will result in vibration intensity decrease. - Page 9 The materials used in manufacture were selected accordingly. However with every renewed preparation for use, thermal and chemical stresses will result in ageing of the products. The maximum number of sterilizations for handpiece is 600 times. For tips, it is 300 times. And for wrench, it is 1000 times. 9.1 Initial processing 9.1.1 Processing principles It is only possible to carry out effective sterilization after the completion...
- Page 10 Disassembling steps 9.3 Cleaning The cleaning should be performed no later than 24 hours after the operation. The cleaning can be divided into automated cleaning and manual cleaning. Automated cleaning is preferred if conditions permit. 9.3.1 Automated cleaning • The cleaner is proved to be valid by CE certification in accordance with EN ISO 15883.
- Page 11 9.4 Disinfection Disinfection must be performed no later than 2 hours after the cleaning phase. Automated disinfection is preferred if conditions permit. 9.4.1 Automated disinfection-Washer-disinfector ·The washer-disinfector is proved to be valid by CE certification in accordance with EN ISO 15883. ·Use high temperature disinfection function.
- Page 12 (d2) For the disinfection here, the temperature is 93 ° C, the time is 2.5 min, and A0>3000 e) Only distilled or deionized water with a small amount of microorganisms (<10 cfu/ml) can be used for all rinsing steps. (For example, pure water that is in accordance with the European Pharmacopoeia or the United States Pharmacopoeia).
- Page 13 sterilization bag (or special holder, sterile box). Notes: a) The package used conforms to ISO 11607; b) It can withstand high temperature of 138 °C and has sufficient steam permeability; c) The packaging environment and related tools must be cleaned regularly to ensure cleanliness and prevent the introduction of contaminants;...
- Page 14 cabinet. The storage time should not exceed 7 days. If it is exceeded, it should be reprocessed before use. Notes: a) The storage environment should be clean and must be disinfected regularly; b) Product storage must be batched and marked and recorded. 9.10 Transportation 1.
-
Page 15: Daily Maintenance
Tools: Nap-free soft cloth, tray 1. Soak the nap-free soft cloth with distilled water or deionized water, and then wipe all the surfaces of the components such as the handpiece, host, tip, etc. until the surface of the component is not stained. 2. -
Page 16: Troubleshooting
11 Troubleshooting Fault Possible cause Solution The battery capacity of Connect the power supply to Endo 1 Ultrasonic Endo charge / replace the battery Activate Device is low. The battery is damaged. Replace the battery Continuously using for Stop using for few minutes,... -
Page 17: After-Sales Service
is10%～93%， atmospheric pressure is 70kPa～106kPa, and the temperature is -20°C～+55°C. 12.4 Excessive impact and shake should be prevented during transportation. Lay it carefully and lightly. 12.5 Do not put it together with dangerous goods during transportation. 12.6 Avoid being exposed to sun, rain, and snow during transportation. 13 After-sales service Since the date of sale, for the ill function of this machine caused by quality problem, our company is responsible for the maintenance during warranty. -
Page 18: Electromagnetic Compatibility
Guidance and manufacturer’s declaration - electromagnetic emissions The model Endo 1 is intended for use in the electromagnetic environment specified below. The customer or the user of the model Endo 1 should assure that it is used in such an environment. - Page 19 Guidance & Declaration — electromagnetic immunity The model Endo 1 is intended for use in the electromagnetic environment specified below. The customer or the user of the model Endo 1 should assure that It is used in such an environment.
- Page 20 Guidance & Declaration - Electromagnetic immunity The model Endo 1 is intended for use in the electromagnetic environment specified below. The customer or the user of the model Endo 1 should assure that it is used in such an environment.
- Page 21 P o r t a b l e a n d m o b i l e R F communications equipment should be used no closer to 3 Vrms any part of the models Endo 3 Vrms 150 kHz to 80 1, including cables, than the 150 kHz to 80 recommended separation...
- Page 22 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the model Endo 1 is used exceeds the applicable RF compliance level above, the model Endo 1 should be observed to verify normal operation.
-
Page 23: Statement
Endo 1 Ultrasonic Endo Activate Device has been tested in accordance with YY 0505-2012/IEC 60601-1-2-2014. This does not guarantee in any way that this device will not be affected by electromagnetic interference. Avoid using the device in high electromagnetic environment. - Page 24 ZMN-SM-190 V1.8-20201103...
