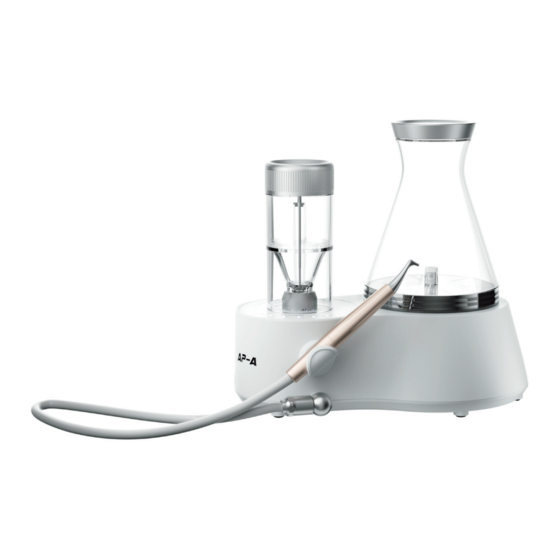

It mainly consists of main unit, handpiece, nozzle, foot switch, powder tank, water bottle, power adapter, prophylaxis powder, etc. 1.4 Intended use AP-A Dental Air Polisher is used to remove plaque and pigment, and maintain the implant. 1.5 Contraindication 1.5.1 The hemophilia patient is forbidden to use this device.
1.6.2 Type of protection against electric shock: Class Ⅰ 1.6.3 Degree of protection against electric shock: B type applied part 1.6.4 Degree of protection against harmful ingress of water: Ordinary device (IPX0). Foot switch is anti-drip device (IPX1). 1.6.5 The contact duration time of applied part: Nozzle: Less than 10 minutes 1.6.6 The temperature of the surface of nozzle may reach 45°C if it is used at maximum power.
Page 5
Fig. 2 Back view of main unit 2.1.3 Touch panel Fig. 3 Touch panel After power on, the button will be blue. If there is no air connection or the air pressure is insufficient, the blue light flashes. 2.1.4 Schematic diagram of handpiece...
Page 6
Fig. 4 Airpolishing handpiece 2.2 Main unit installation 1) Open the package, check whether all the accessories of this device are complete according to the packing list, and put the main unit on the stable desktop to the operator. 2) Take out the foot switch and insert the connector into the corresponding foot switch socket on the back of the main unit.
Page 7
equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally. [Warning 8] Use of accessories, transducers and cables other thanthose specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper...
Page 8
2.3.4.2 Before the treatment, please spray in the external container for 1-3 seconds in advance to ensure that the gas and water are evenly sprayed. 2.3.4.3 Before air polishing, please wear goggles and veil. Users should wear goggles or protective masks. 2.3.4.4 Hold the handpiece like holding a pen.
Page 9
the 4-9mm depth periodontal pocket, pull up and down when using. 2.3.5.6 It is not allowed to polishing the periodontal pocket at each point for more than 5 seconds. [Tip 3] It is forbidden to pull out the handpiece in the working state. [Tip 4] When subgingival airpolishing, it’s just allowed use subgingical powder, and misusing powder may cause harm to patients.
Fig. 7 handpiece cleaning diagram 2.4.2 Powder tank 2.4.2.1 It is recommended to estimate the amount of prophylaxis powder before use. It is easy to cause blocked that leaving extra powder in the powder tank for a long time because the powder will clump in a humid environment.
Check the air connection Unconnected air source and ensure that the or low air pressure (≤ pressure meets the 3bar). requirements of the device (5bar-7bar). Use nozzle to dredge Handpiece blocked. handpiece. There is air flow but no water spray. Contact local distributors Tail line blocked.
Page 12
4.1 Initial processing 4.1.1 Processing principles It is only possible to carry out effective sterilization after the completion of effective cleaning and disinfection. Please ensure that, as part of your responsibility for the sterility of products during use, only sufficiently validated device and product-specific procedures are used for cleaning/disinfection and sterilization, and that the validated parameters are adhered to during every cycle.
Page 13
ISO 15883. For the specific procedure, please refer to the automated disinfection section in the section “Disinfection”. Precautions: 1) The cleaning agent does not have to be pure water. It can be distilled water, deionized water or multi-enzyme. But please ensure that the selected cleaning agent is compatible with the handpiece.
Page 14
• Use high temperature disinfection function. The temperature does not exceed 134 °C. The temperature cannot exceed 20 minutes. • The sterilizer has a flush connecting piece that is connected to the interior of the handpiece. • The cleaning procedure is suitable for the handle and the flushing cycle is sufficient (5-10 minutes).
Page 15
The solution used can be pure water, distilled water, deionized water or multi-enzyme solution, etc., and only freshly prepared solutions can be used. (c) The cleaning agent must be compatible with the handpiece. Please follow the concentration and contact time provided by manufacturer.
Page 16
onto the white paper (white cloth), the drying is completed. 2) It can be dried directly in a medical drying cabinet (or oven). The recommended drying temperature is 80°C~120°C and the time should be 15~40 minutes. Precautions: 1) The drying of product must be performed in a clean place. 2) The drying temperature should not exceed 138°C;...
The sterilization time is at least 4 minutes at a temperature of 132°C / 134°C and a pressure of 2.0 bar ~ 2.3 bars. Allow a maximum sterilization time of 20 minutes at 134°C. Verification of the fundamental suitability of the products for effective steam sterilization was provided by a verified testing laboratory.
Page 18
the filter in time, and check the cleanliness of the air compressor and the environment where it is located. If there is no impurity, it is recommended to replace the filter every 24 months. Spare filters are included in accessories. The way to replace filter are shown in Figure 8. Fig.
6 Environment protection Please discard waste, debris and expired machines or components in accordance with local regulations. Toxic or harmful substances or elements Part (Pb) (Hg) (Cd) (Cr6+) (PBB) (PBDE) ○ ○ ○ ○ ○ ○ Main unit Motor ○ ○...
8 European authorized representative 9 Symbol instruction Follow Instructions CE marked product for Use Date of manufacture Manufacturer Type B applied part Recovery Handle with care Keep dry Ordinary device Anti-drip device Used indoor only Purging mode Alternating current Foot switch Sterilization under high Protective earthing temperature...
Guidance and manufacturer’s declaration - electromagnetic emissions The model AP-A is intended for use in the electromagnetic environment specified below. The customer or the user of the model AP-A should assure that it is used in such an environment. Electromagnetic environment -...
Page 22
The model AP-A 1s intended for use 1n the electromagnetic environment specified below. The customer or the user of the model AP-A should assure that It is used in such an environment. IEC 60601 Electromagnetic Immunity test Compliance level test level...
Page 23
The model AP-A is intended for use in the electromagnetic environment specified below. The customer or the user of the model AP-A should assure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic Immunity test level...
Page 24
NOTE 1 At 80 MHz - 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/ cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
The device has been tested and homologated in accordance with EN 60601-1-2 for EMC. This does not guarantee in any way that this device will not be affected by electromagnetic interference Avoid using the device in high electromagnetic environment. 11 Statement Woodpecker reserves the right to change the design of the device, the technique, fittings, instruction manual and the content of the original packing list at any time without further notice.
