User Manual
CONTROLLER
PC-16
The device can only be used to work with a pump.
CAUTION: Before operating, read the operating instructions. For safety reasons, only
those who are thoroughly familiar with the operating instructions are allowed to
operate the device.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IBO PC-16

Summary of Contents for IBO PC-16

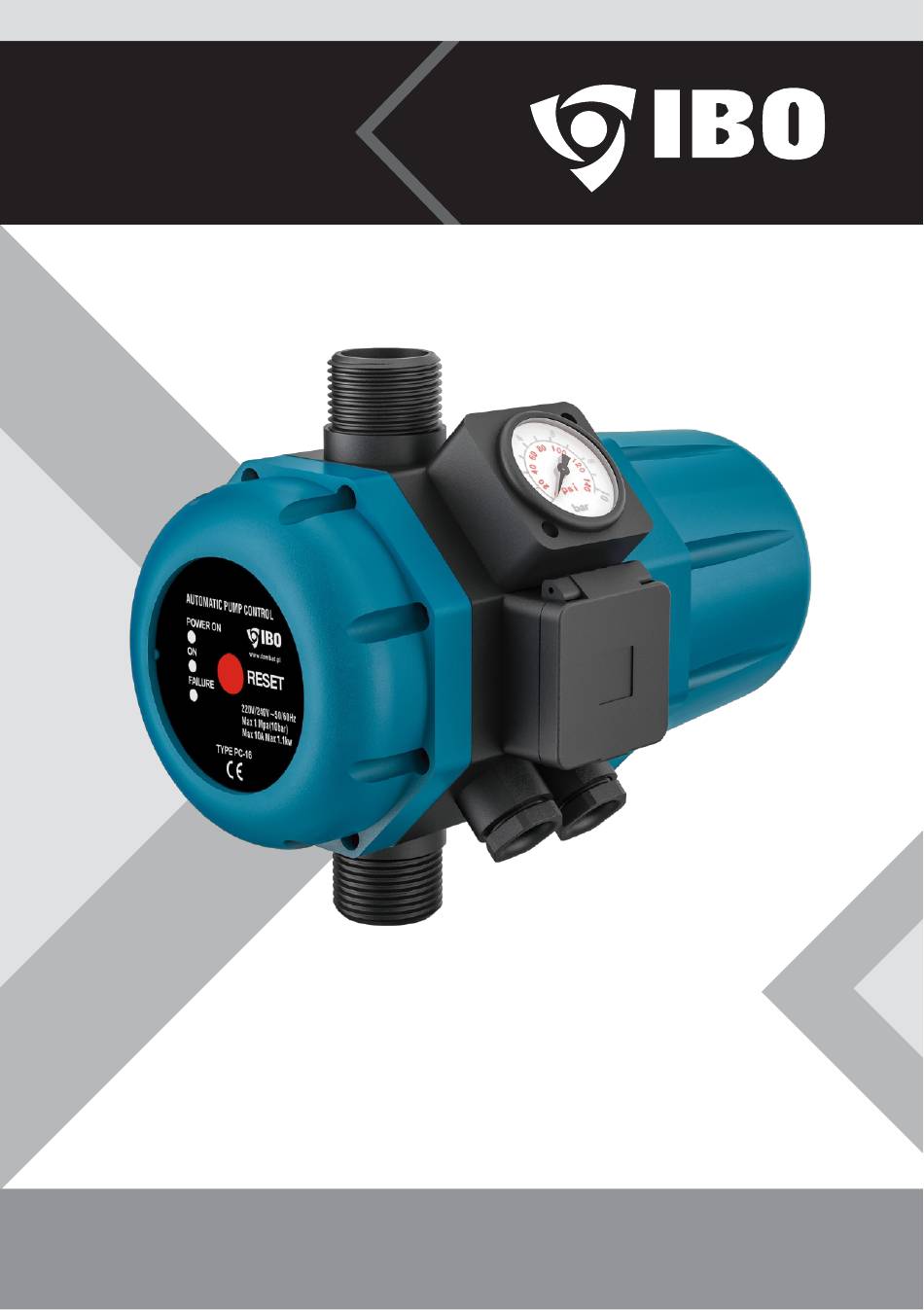

  • Page 1 User Manual CONTROLLER PC-16 The device can only be used to work with a pump. CAUTION: Before operating, read the operating instructions. For safety reasons, only those who are thoroughly familiar with the operating instructions are allowed to operate the device.

  • Page 2: Table Of Contents

    Table of contents List of abbreviations and symbols General comments Protective measures Application Installation Auto restart function Electrical installation First launch Technical data Possible problems and their solutions Storage and maintenance Let's take care of our environment! Disposal of used product EU/EC Declaration of Conformity | Module A WARRANTY CARD Any use of the device other than the intended use is a foreseeable misuse of the device.

  • Page 3: List Of Abbreviations And Symbols

    List of abbreviations and symbols Warning! The symbol "danger" used for cautions that, if not observed, may cause danger to life or health from the electrical system. The power cord of the pump must be disconnected from the electrical supply before proceeding with operations marked with this symbol. Warning! The "danger"...

  • Page 4: General Comments

    General comments The need to read the Danger of electric Danger of damage to the instruction manual shock device NOTE! The device must not be affected by external strong magnetic field. Any magnets should be at least 25 cm away from the device. Function/construction specifications: - suction spigot 1"...

  • Page 5: Protective Measures

    PC-16. The information contained in this manual is subject to change without prior notice. In order to ensure the correct and safe use of the automat Type: PC-16 and to avoid possible damage or pump and dangerous situations for users, read the following instructions carefully before installing and operating the device.

  • Page 6: Application

    PC-16 automat is installed. Switching off depends on stopping the flow of water in the pipe on which the PC-16 automat is installed.

  • Page 7: Installation

    It is best to seal the connections between the PC EXIT PC-16 automatic machine and the pipes with Teflon tape. INCORRECT INSTALLATION OF The switching pressure of the device is set...

  • Page 8: Electrical Installation

    The PC-16 automatic machine can work with a single-phase electrical network with a voltage of 230 V / 50 Hz. If the pump that will be connected to the PC-16 does not have an electrical plug, the electrical connection should be made by a person with the appropriate and qualifications of an electrician.

  • Page 9: First Launch

    First launch Fill the suction system and the pump with water. Turn off the tap. Connect the device to the elec- trical network. If the device does not turn on, or if it shuts down while sucking water, press the RESET (RESTART) button visible on the pump housing. The device will restart the pump motor.

  • Page 10: Possible Problems And Their Solutions

    When turned off, the pump 3. check the pump does not turn on 2. Pump failure 4. contact the guarantor 3. Failure of the PC-16 automatic machine 1. High leakage of the 1. Check the tightness of the hydraulic system...

  • Page 11: Let's Take Care Of Our Environment

    Let's take care of our environment! Every user can contribute to environmental protection. It is neither difficult nor costly. To do this, donate cardboard packaging for waste paper, put plastic bags in the container for plastic. Return the used device to a suitable disposal point. Disposal instructions The packaging of this product can be recycled.

  • Page 12: Eu/Ec Declaration Of Conformity| Module A

    EU/EC Declaration of Conformity| module A EU/EC DECLARATION OF CONFORMITY| module A 1. Pressure switches: PC-16 2. DAMBAT Jastrzębski S.K.A, Adamów 50, 05-025 Grodzisk Mazowiecki, POLAND, e-mail: biuro@dambat.pl 3. This declaration of conformity is issued under the sole responsibility of the manufacturer.

  • Page 13: Warranty Card

    WARRANTY CARD The following warranty card is valid only with the original purchase document, i.e. invoice or receipt. In addition, it must be certified by the seller with a signature and stamp. The warranty card without the original purchase document attached is invalid. 1.
  • Page 14 Notes...
  • Page 15 Notes...
  • Page 16 dambat.co.uk BIURO@DAMBAT.PL OFFICE / OFFICE +48 22 721 11 19...
