Intuis DS170D Pilot Installation Manual

Pilot for hti70 heat pumps
Hide thumbs Also See for DS170D Pilot:
Table of Contents

Advertisement

Quick Links

DS170D Pilot
Pilot for HTi
heat pumps
70

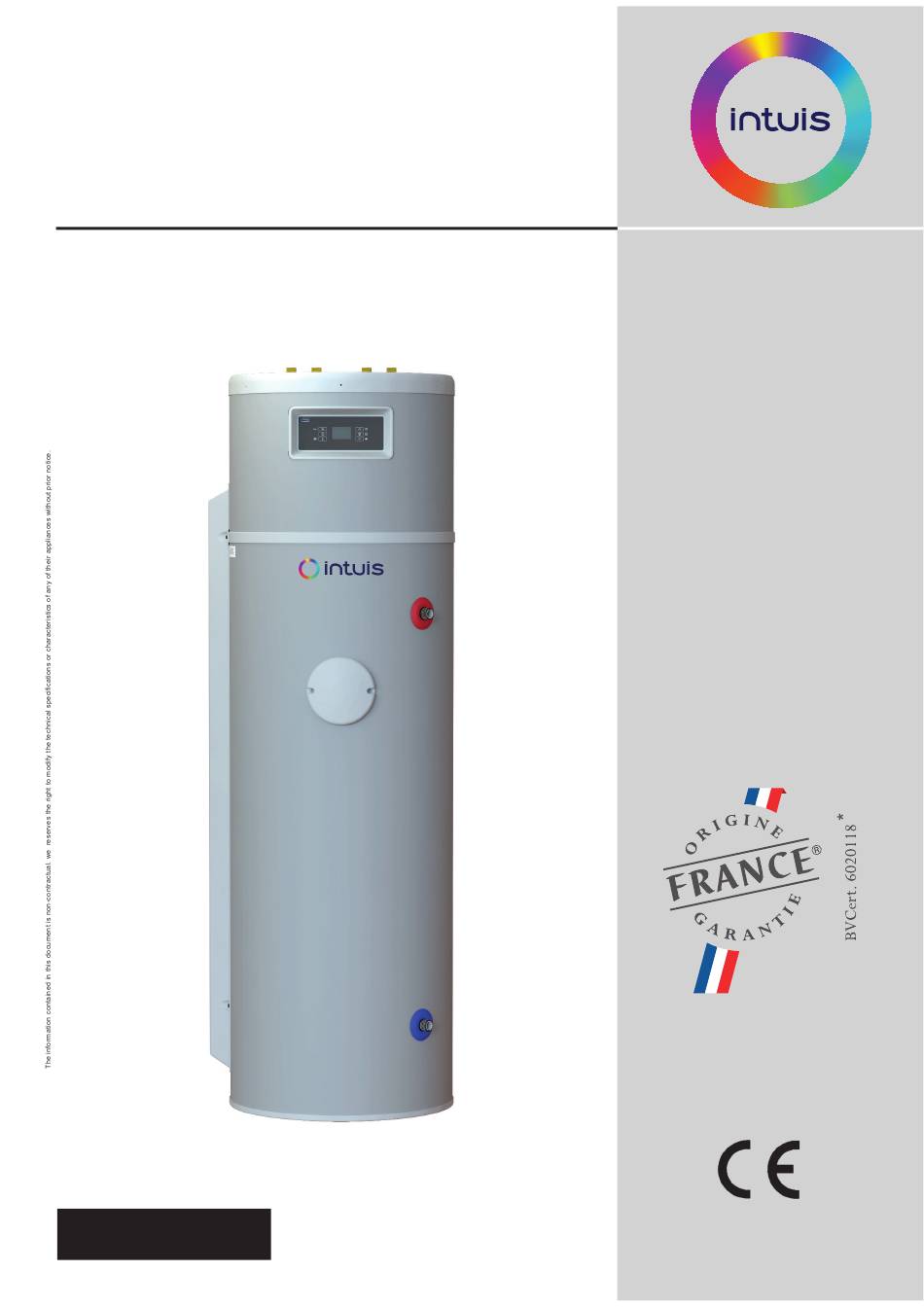

DS170D Pilot
Installation manual
pilot for heat pump
Ref. 753030
Made in
France
Manual ref: 1898395
Edition n°: 24.42
* Only applies to the DS170D pilot with the HTi
6 kW and 8 kW mono and HTi
8 kW tri models.
70
70
