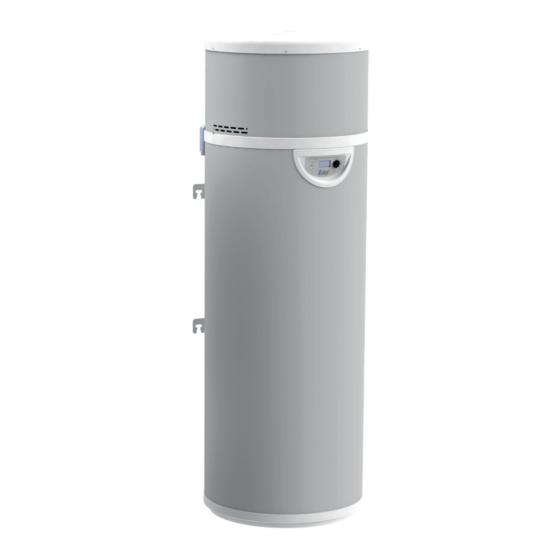

- Page 1 Edel WATER Domestic hot water heat pump Using calories drawn from the return fl ow of underfl oor heating Installation manual Edel 150 WATER /3 Ref. 352231 Made in France Manual ref: 1898829 Edition n : 23.14...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 6.6 - BOOST mode 1 - SAFETY ............3 (for occasional use and guaranteed comfort) ........17 2 - RECOMMENDATIONS ........5 6.7 - Electric mode 2.1 - Storage ..........................5 (for operation using only the electrical back-up) .........17 2.2 - Transport ......................... -
Page 3: Safety
Preserving these documents • Follow all relevant national and international health and safety rules and regulations. • This manual and all other relevant documents should be given to the system user. The system user should keep these manuals for future reference. Danger resulting from improper use Any work carried out by an unqualifi ed person 1 - SAFETY... - Page 4 If the electrical supply cable is damaged, it • If the electrical supply cable is damaged, it must be replaced by the manufacturer, their must be replaced by the manufacturer, their customer service technicians, or by a qualifi ed customer service technicians, or by a qualifi ed professional to prevent any risk of injury or professional to avoid risk of injury.
-
Page 5: Recommendations
2 - RECOMMENDATIONS • The appliance can only function when filled with water. Never turn on the appliance if the tank has not been properly filled with water and completely purged of air. • The corrosion-proof magnesium anode Do not pose abruptly ensures the protection of the tank. -
Page 6: Manutention
2.3 - Manutention 2.5 - Unpacking To transport the appliance to the installation location, use the wall • Cut the straps. bracket and lower handles. • Remove the hydraulic derivation module and the transport bag. • Remove the cardboard packaging. ADMISSIBLE transportation positions : •... -
Page 7: Operating Principle
3 - OPERATING PRINCIPLE The domestic hot water heat pump is a small-capacity heat pump dedicated to the production of domestic hot water. The appliance uses the fl oor’s returns for the capture of calories and then the bonuses to the water of the tank. That is made possible by the use of refrigerant fl uid allowing the transfer from one midium to another. -
Page 8: Introduction
4 - INTRODUCTION 4.3 - Technical specifi cations and characteristics 4.1 - Dimensions 150 L Heat pump performance Nominal volume Max. input power 1400 Water temperature range +18 to +50 DHW* temperature with heat pump Max. heat pump power consumption Water fl ow rate Sound power level** dB(A) -
Page 9: Installation
5 - INSTALLATION 5.1.3 - On-ground installation A tripod (see § Options)allows to install the domestic hot water heat pump on the 5.1- Placement and positioning ground, in the case where the wall will not support the weight of the water heater. The height of the tripod is adjustable from 5.1.1- Placement choice 300mm to 500mm. -
Page 10: Options
5.1.5 - Options 5.2- Hydraulic connections to underfl oor heating 5.1.5.1 - Tripod for on-ground installation The appliance is connected using the return fl ow of the underfl oor heating network via a derivation module provided with the tank. 5.2 .1- Underfl oor heating derivation module Tripod with an adjustable height from 300 to 500mm 5.2.1.1- Description... -
Page 11: 3-Way Mixing Valve For Underfl Oor Heating Circuit
5.2.5 - 3-way mixing valve for underfl oor heating circuit imperative With the presence of a 3-way mixing valve (rep.16), it is to place the derivation kit between the underfl oor heating collector and the 3-way valve bypass as indicated on the diagram below: 5.2.7 - Underfl oor heating circuit circulator 5.2.6 - Thermostatic mixing valves equipping the water loops of the underfl oor heating circuit... -
Page 12: Treatment Of The Water In The Heating Circuit
- Protect the installation against corrosion with a corrosion 5.2.8 - Treatment of the water in the heating inhibitor, example: SENTINEL X100. Or against corrosion circuit and freezing with an inhibitor with an anti-freeze additive. Example: SENTINEL X500 or SENTINEL R600. It is MANDATORY to read the additional Corrosion inhibitor: document concerning the quality of... - Page 13 • The following materials should be used for the Resistivity <2200 Ωcm or <4500Ωcm domestic hot water circuit: Complete alkalimetric title <1.6 mg/l <8 - copper - stainless steel <15 mg/l - brass - plastic Calcium (Ca <1.6 mg/l <8 If the materials used in the domestic hot water circuit are incompatible, corrosion damage may occur.
-
Page 14: Electrical Connections
5.4.1.1 - Peak / Off -peak hours contact and 5.4 - Electrical connections control It is also possible to connect the electricity provider dry contact to Do not connect the domestic hot the domestic hot water heat pump without using programming. water heat pump to the eletrical line - Contact open Load shedding... -
Page 15: Connection To The Photovoltaic (Pv) Function
5.4.1.3 - Connection to the photovoltaic (PV) function Energy manager dry contact Ground This func tion enables the appliance to operate in auto -produc tion mode, which means that it will use the energy produced by the PV function to supply the heat pump as well as the electrical back-up, and to heat the water in the tank. The connec tion is made bet ween the energy manager elec trical box (not supplied) and connec tors 1 and 2 on the electronics board. -
Page 16: Set-Up And Use
6.2 - Setting the language 6 - SET-UP AND USE The language must be selected when the appliance is turned on for the fi rst time. Turn the dial to the left and select «English». Confi rm your choice by pressing on the dial. Access to the «LANGUage» menu is always possible. -
Page 17: Setting The Desired Water Temperature
6.4 - Setting the desired water 6.5 - Holiday/temporary standby mode temperature ho lid ay « » mode puts the appliance on standby while the frost 6.4.1 - PV Mode deactivated protection mode remains active. This function can be programmed The water temperature can be adjusted from 30°C to 65°C. -
Page 18: Programming
6.8 - Programming Daily programming allows to defi ne the periods of operation in «comfort», «eco», or m o n d ay Choose the day «frost protection» modes. da y In «eco» mode, the electrical back-up is not authorised. “Clock settings” •... -
Page 19: Setting The Operating Parameters
7. Turn the dial to defi ne the priority: ANTI-BACT 6.9.2.1 - Anti-legionellosis cycle - Menu → INST. MENU → PV MODE → PRIORITY • Yes: the signals from terminals 1 and 2 have priority over frost anti bact Factory setting - protection and eco mode. -
Page 20: Load Shedding Level Of Operation Authorised During
load shedding 6.9.3 - Locking the keyboard 6.9.2.3 - Level of operation authorised during peak time Automatic and permanent locking When load shedding is activated you can choose to prevent certain The «locking» menu enables you to create three possible levels of elements from running (Electrical back-up and compressor). -
Page 21: Resetting The Parameters
6.9.6 - Counters 6.9.4 - Resetting the parameters The «Counters» menu shows the number of start-ups from the heat Resetting the parameters allows you to return to the default pump and the electrical back-up. settings. In the «Installer», menu turn the dial to «counters». Go to the «Installer menu», and turn the dial to «Reset PARa.». -
Page 22: Maintenance And Troubleshooting
7 - MAINTENANCE AND .../... → In case of intervention on the TROUBLESHOOTING refrigerant circuit: 1) Secure the area you will be working in. In order to maintain effi ciency and improve durability it 2) Inform people of the potential danger is advised that an annual maintenance check be carried out by a qualifi ed professional. -
Page 23: Electrical Maintenance
• Remove the lower fl ange (rep.60) which supports the heating 7.3 - Electrical maintenance element and the anode. • Inspect the primary anode (rep.20) at its narrowest point. This It is mandatory to periodically inspect for cleanliness and the diameter should be more than 15mm. -
Page 24: Modifi Cation
7.7.3 - Charging process 7.6 - Modifi cation • Ensure that contamination of diff erent refrigerants does not occur Any modifi cation of the appliance is prohibited. Any replacement when using charging equipment. Hoses or lines should be as short of components must be done by a professional with original parts as possible to minimize the amount of refrigerant they contain. -
Page 25: Recovery
7.7.5 - Recovery When transferring refrigerant into the recovery bottles, ensure that only the appropriate bottles are used. Make sure you have enough bottles to recover the entire system load. All cylinders used are dedicated to the refrigerant recovered and labeled for it (i.e., special cylinders for refrigerant recovery). -
Page 26: Troubleshooting
7.8 - Troubleshooting Reset button (87°C) • The Heat pump is not working on safety aquastat Check that: • The set temperature is higher than the temperature of the water in the tank. • There is a power supply to the appliance. •... -
Page 27: List Of Spare Parts
7.10 - List of spare parts Rep. 150L Description Regulation / display B4995303 C3S electronic circuit board B4995470 Circuit board + display + pgm.JP3 B4992653 Display cable JST 480mm lg + foam B1244833 Temperature sensor 900mm lg B1244575 Temperature sensor 700mm lg B4993072 Temperature sensor kit 900mm lg Electricity... -
Page 28: Error Message Codes, Errors, Solutions, And Operating In
7.11 - Error message codes, errors, solutions, and operating in case of error Note: Errors can be dismissed by briefl y pressing the dial (manual reset) Temporary operating measures Display Error Probable causes while waiting for the problem to Solutions be resolved •Voltage too high on electrical network •Electronic board defect... -
Page 29: Warranty
8 - WARRANTY 8.1.2.3 - Placement Cases (not limited to) where the warranty is void: The tank is guaranteed against breakage for a period of fi ve (5) years, • Placing the appliance where it can be subject to frost or other starting from the date the appliance was activated, if the warranty adverse weather conditions. - Page 30 DOMESTIC HOT WATER HEAT PUMP 150L INSTALLER MANUAL...
-
Page 31: Appendix
9 - APPENDIX 9.1 - Electrical schematic diagram DOMESTIC HOT WATER HEAT PUMP 150L INSTALLER MANUAL... - Page 32 NOTES : Industrial and Development site Rue de la République CS 40029 80210 Feuquières-en-Vimeu Spare Parts Department Tel. : 03 22 61 21 21 Fax : 03 22 61 33 35 E-mail : pieces@auer.fr Technical Assistance Department* E-mail : enr@auer.fr *Technical assistance is reserved for professionals...
