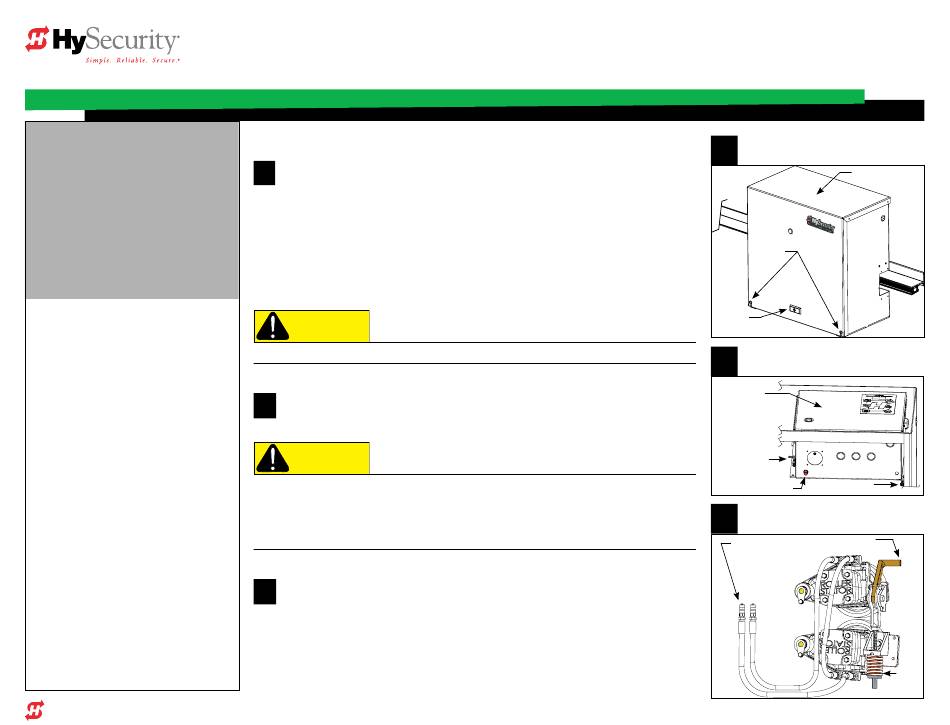

Nice HySecurity AdvanceDrive MX002064 Installation Instructions

Tools required
• Phillips-head screwdriver
• Standard hex key set
• Standard box end wrench set
• Standard socket wrench set
(with ½-inch extension)
• Torque wrench
• Hammer & punch
Installation Tips & Torques Specs
• Torque specifications must be
adhered to or you will void the
Limited Warranty.
Tighten to 25 ft-lbs:
• 5/16 - 24 Nylock nuts (drive wheel)
Tighten to 40 ft-lbs:
• Hex head bolt that secures the
drive wheel to the motor shaft.
www.hysecurity.com © 2012
AdvanceDrive™ Wheels (6 and 8-inch)
12
1
Open the SlideDriver™ and Position Gate.
NOTE: Unlock the cover, if necessary.
1. Loosen the two Phillips-head screws at the base of the cover.
2. Lift the cover off the gate operator and set it aside.
3. Determine if the gate needs to be open for vehicular traffic while you're chang-
ing out the drive wheels. If it does, press the Open button to open the gate.
CAUTION
Turn OFF power to the SlideDriver and take the necessary precautions to avoid electrical shock.
12
2
Turn OFF power at the Control Box.
CAUTION
Do NOT grip the toggle handle when releasing the drive wheels inside the chassis! Take the neces-
sary precautions and be careful as the mechanism is spring-loaded and drops rapidly. Keep your fin-
gers above the handle. The spring produces a force of about 1800 psi onto the drive wheels. Slight
downward pressure on the toggle handle causes the handle to drop rapidly. Keep your fingers,
hands and tools clear of the area when the toggle handle deploys.
12
3
Release the Drive Wheels and disconnect the Hydraulic Hoses.
1. Remove the hydraulic hoses from the pump pack.
NOTE: Have rags handy. Hydraulic fluid may drip from the hoses.
2. Release the drive wheels by carefully lowering the Toggle Handle. Read the
CAUTION note.
Installation Instructions
Page 1
MX002064 MX001827
12
Open SlideDriver™
1
and Position Gate
Remove cover
Loosen Phillips-head
screws
Lock
(optional)
12
Turn off Power
2
Control Box
Power Switch
Ground Lug
Reset/Stop Switch
12
Release Drive Wheels and
3
Disconnect Hoses
Toggle Handle
Hydraulic Hoses
Manual release
P/N MX002064 MX001827 D0526 Rev A
Spring
