Parts Identification:
Double Spade
Connectors (2)
Battery Connection Wires (2)
When an EXIT WAND is in use, the automatic gate opener could be activated by a child on a bicycle or
other metal play equipment. This product is not recommended for applications exposed to children.
EXIT WAND
Installation Manual

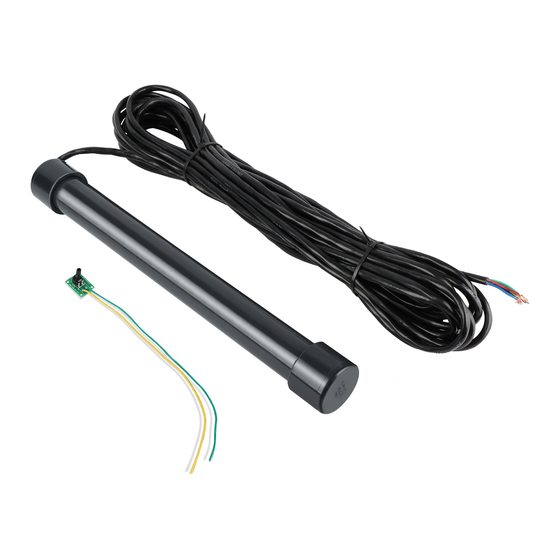

SENSOR with 50, 100 or 150
feet of Direct Burial Cable
Ty-Wraps (4)
WARNING
WARNING
!
WARNING
GATE OPENING SENSOR IN USE
The Automatic Gate Opener is activated when a
vehicle comes within range of the sensor buried
along side the driveway and could possibly be
activated by a child on a bicycle, tricycle or other
metal play equipment.
Warning Signs (2)
Wire Nuts (2)
Wire Clamp
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Nice MIGHTY MULE EXIT WAND
Summary of Contents for Nice MIGHTY MULE EXIT WAND
- Page 1 EXIT WAND Installation Manual Parts Identification: WARNING WARNING GATE OPENING SENSOR IN USE The Automatic Gate Opener is activated when a vehicle comes within range of the sensor buried along side the driveway and could possibly be activated by a child on a bicycle, tricycle or other metal play equipment.
- Page 2 Installation Overview Gate Opener Open Gate Control Box Outside Sensor Range Minimum of 25 feet 12” PVC conduit in ground SENSOR: 2 feet from driveway edge and and up to control box recommended 1 foot in ground 24” • The SENSOR is designed to detect iron-based metal in motion.
- Page 3 TURN GATE OPENER OFF WIRING DIAGRAM EXAMPLES NOTE: Power Input Connections Not Shown. (See gate instruction manual for complete instructions) 4. Connect the BLACK to the terminal labeled COMMON, and the BLUE wire to terminal in STEP 3 to open gate. See wiring diagrams to the right for guidance on wiring the sensor to your gate opener’s control board.
- Page 4 This product is warranted to the original consumer (“You”) by Nice North America against defects in material and workmanship for a period oftwelve (12) monthsfrom the date of purchase. This limited warranty only extends to you if the item was purchased directly from Nice North America or through an authorized sales partner. Nice North America will, at its option, either repair or replace any product that it confirms is defective and eligible for service under this warranty and will return the repaired or replaced product to you at Nice North America’s cost.
