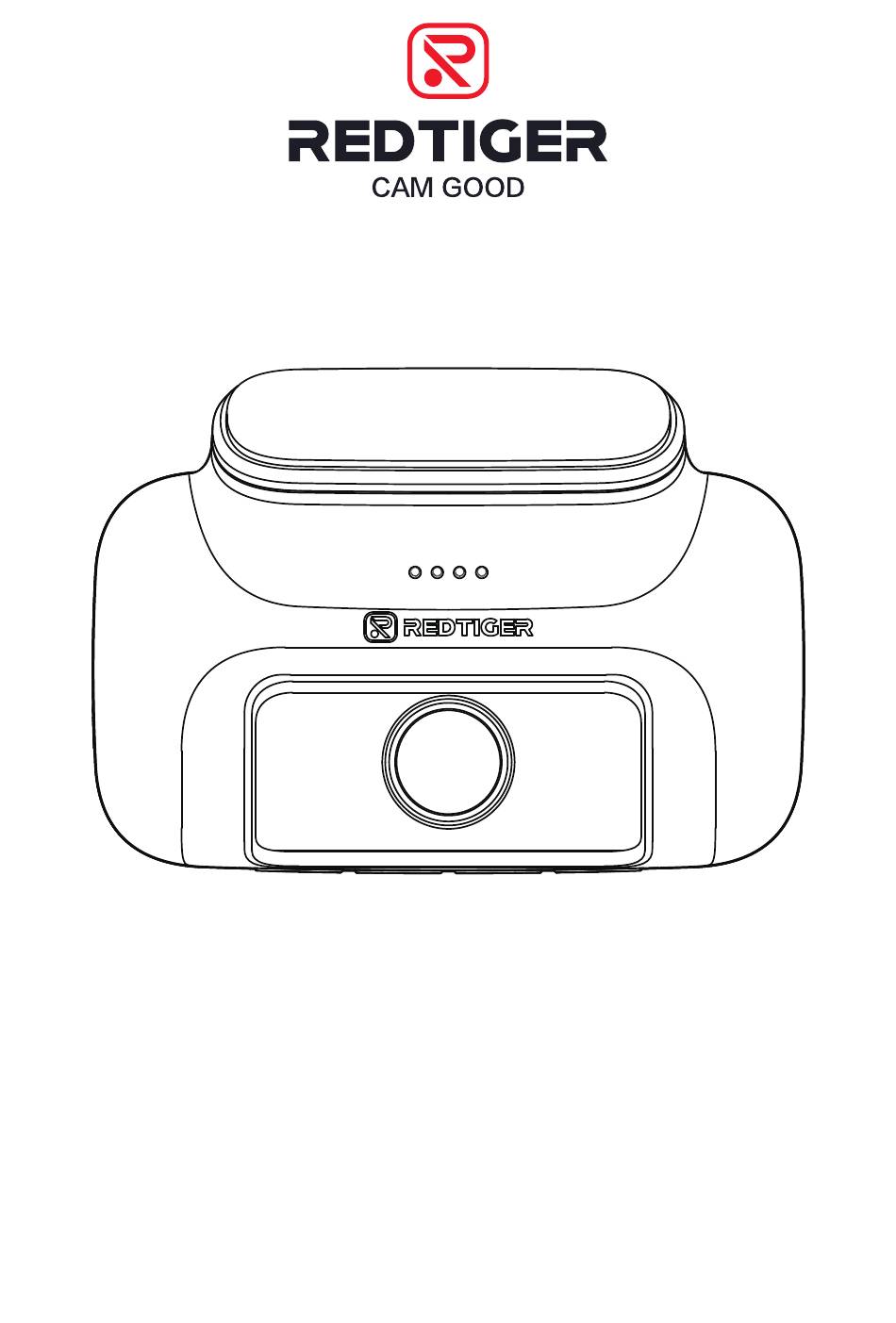

- Page 1 V1.0 VisionSync 10 User Manual redtigercam.com The information in this manual is subject to change without notice.
-
Page 3: Table Of Contents
Content Notice ......Product Specifications ..... Package Contents . -
Page 4: Notice
Notice • Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problems. • Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system. -
Page 5: Product Specifications
Product Specifications VisionSync 10 Dash Item Name Video Format Screen Size 3" IPS Touch Screen Photo Format Recording 2.5K@25fps+1080P@25fps Resolution 1080P@25fps+1080P@25fps Input DC 12V/24V Output DC 5V-2.5A Operating Front cam F1.8 -4°F~158°F Lens Temperature F2.05 Maximum Warranty Supported 256GB 18 Months... -
Page 7: Appearance
Appearance 3M Adhesive Rear Cam slot Front camera Memory Card Slot USB Type-C port Power button Screen OK button Right button Left button Mode button... - Page 9 Right Button Recording Mode: • Short press-to Lock/Unlcok the recording file • Long press-to Turn on/off Audio Setup Mode: • Short press-to Select the next function Playback Mode: • Short press-to Select the next file • Long press-to Fast forward while video is being played OK Button Recording Mode:...
- Page 14 Icon Function Option/Description Display GPS signal strength Date Stamp ON/OFF Speed Stamp ON/OFF GPS Stamp ON/OFF Speed Units KM/H / MPH Language Choose Your Prefered Language Date/Time Update With GPS Time style 12h/24h Flicker 60Hz/50Hz Format Reminder Reminder to Clear Data Format Format SD card.
- Page 18 • App Home (4G connection) 4G signal Live view Function button GPS info Message SD card footage GPS Trip info Full screen Setting...
- Page 19 VisionSync 10. 2.If there is an updateable firmware version, please upgrade it according to the prompts of the app. 3.VisionSync 10 will automatically restart after the upgrade is completed. • Predicting 4G traffic consumption *Take 1GB traffic as a reference 1.With the vehicle in the ignition...
-
Page 20: Installation
Please follow the "Multi-Size Type-C Hardwire Kit" user manual to complete the installation of VisionSync 10. • Insert Memory Card Insert the Memory Card into the dash cam, taking care that the gold contacts are facing towards the screen of the dash cam. -
Page 24: Troubleshooting
Trouble Shooting ・Why is there no GPS signal? 1. Clean and reconnect the probe on the main unit and bracket. Check for any interference in your car, like metal film on the windshield, radio antenna, or radar detector. 2. Move your car to an open area. Observe if the GPS icon on the screen turns green and displays GPS info. - Page 25 power on the USB cable to confirm whether the host can be used normally. 5. Please go to the official website to update the firmware. 6. If it is not resolved, please contact your dedicated customer service for a replacement. ・Why "Mass storage"...
- Page 28 Check us out here. Product and service are the foundation of Redtiger. Instagram: @redtiger_dashcam Facebook: Redtiger Dash Cam www.redtigercam.com...
