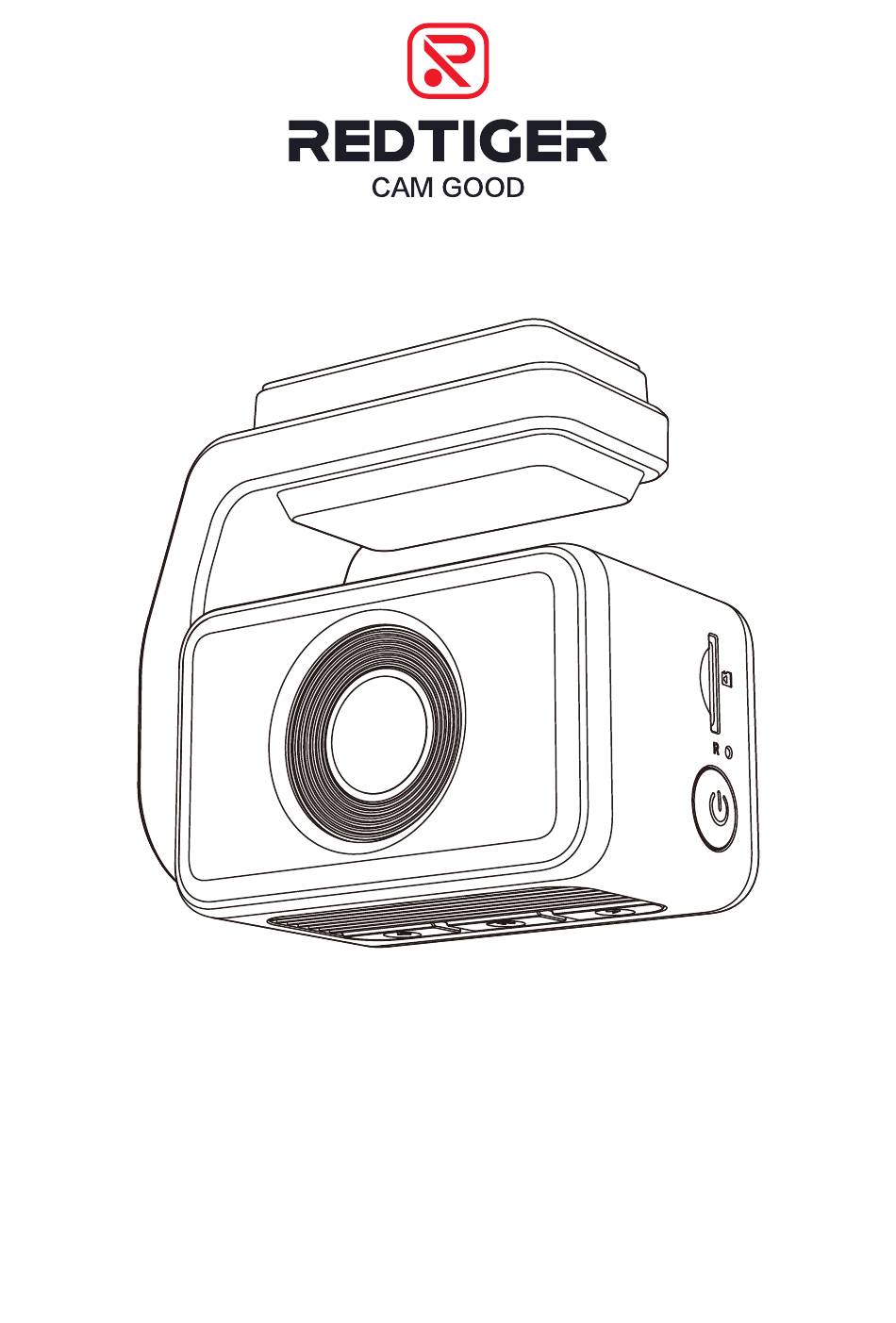

- Page 1 V1.0 User Manual redtigercam.com The information in this manual is subject to change without notice.
-
Page 3: Table Of Contents
Content Notice ......Product Specifications ..... Package Contents . -
Page 4: Notice
Notice • Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problems. • Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system. -
Page 5: Product Specifications
Product Specifications Item Name F4 Dash Cam Video Format Screen Size 2.2" IPS Touch Screen Photo Format Front 4K/25fps Recording Front 2.5K/60fps Resolution Front 1080P/120fps Input DC 12V/24V Output DC 5V-2.5A Operating -4°F~158°F Lens F2.0 Temperature Warranty Memory Card 256GB... -
Page 6: Package Contents
Package Contents • F4 4K Dash cam • Power Supply Cable with Car Charger • 32GB Memory Card • Electrostatic • Cable Clips*5 Sticker *2 • User Manual • Tool •3M Adhesive Slipcover... -
Page 7: Appearance
Appearance 3M Adhesive Memory Card Slot Reset button Front camera Power button lens USB Type-C Port GPS Mount Rear cam slot Screen Right button Mode button Left button... -
Page 8: Touch Screen Function
Touch Screen Function • Screensaver Mode 2023/07/12 Swipe the screen right to switch the screen to Front camera > Screensaver. - Page 9 • Quick Setting Mode Swipe down to enter the quick setting mode you can conveniently adjust the volume, turn on or off the recording and wifi. • Video Mode You can double-tap the screen to lock the currently recorded video and a small white lock appears in the middle of the screen You can manually click the icon at the top of the screen to...
- Page 10 You can manually click the icon at the top of the screen to choose whether to turn on Wi-Fi. You can manually click the icon at the top of the screen to choose whether to turn on the key sound. You can manually click the icon at the top of the screen to choose whether to turn on the Voice control .
-
Page 11: Buttons And Functions
• Setting Mode Swipe right on the recording page to enter setting mode. Swipe up and down on the menu interface to turn pages. Click on any function icon to touch the screen. Buttons and Functions Power Button Recording Mode: •... - Page 12 Menu Button Recording Mode: • Short press to Enter main menu Setup Mode: • Short press-to Enter/Confirm specific settings Playback Mode: • Short press-to Select and play the specific file • Long press-to Delete/Lock/Unlock the specific file (After selecting the video) Left Button Recording Mode: •...
-
Page 13: Voice Control Function
Voice Control Function Fast control through simple voice commands If the voice control icon is gray , it means the function is being connected. If the icon is white , it means the function can be used normally. You have two ways to enable this feature. Tap on the icon to turn the feature on or off . -
Page 14: Inversion Function
Inversion Function WARNING GPS signal may fluctuate when using the machine upside down. When rotated 180° upside down, the buttons may be difficult to operate, please try to use the touch screen function. It offer the ability to rotate 360°for flexible mounting options to ensure stability and prevent interference with the driver's view while allowing for easy removal at any time. -
Page 15: User Interface Overview
User Interface Overview • Recording Mode Icon Description Fatigue driving function is on G-Sensor sensitivity Loop recording in 1 min/3 mins/5 mins per file Recording resolution Whether to connect the hardwired kit and set up parking monitoring Voice control... - Page 16 Icon Description GPS status Wi-Fi status Camera system sound status Voice recording statusd Whether the rear camera is connected Recording status and recording time Emergency recording is on Date and time of the camera...
- Page 17 • Playback Mode Swipe up the recording page to enter playback mode. Press the Left or Right button to select the folder you want to play, then press the M button to enter. Press the M button to watch the recorded video. Long press the M button for 3 seconds to edit your recorded videos.
-
Page 18: Function Overview
Function Overview Short press the M button to enter the settings menu, where you can adjust various functions and parameters of the camera. Icon Function Option/Description 2160P @25fps/1440P @60fps/1080P Resolution @120fps Record Audio Sound Recording Loop recording 1/3/5mins G-sensor Off/Low/Medium/High A Reminder Will be Made During Fatigue Driving 1h/2h/3h/4h/OFF... - Page 19 Icon Function Option/Description Vertical Flip Your Rear View Rear Cam Flip * Need to connect rear camera Parking Mode Please connect the ACC hardwire kit GPS Info Display GPS signal strength Date Stamp ON/OFF Speed Stamp ON/OFF GPS Stamp ON/OFF Speed Units KM/H / MPH Language...
- Page 20 Reminder to Clear Data Format Format SD card. All data will be deleted Card Speed Card Speed Detection Default Setting Reset All Settings A QR Code for Redtiger app Products Software Version Help Center Scan the QR code to contact us Note: •...
-
Page 21: App And Wi-Fi Function
2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and password will appear on the screen. 3. Open Redtiger APP> jump to the Wi-Fi connection interface according to the steps> find the Wi-Fi of the dash cam> enter the password to connect. - Page 22 • App home Native Wi-Fi Name Turn on/off recorded sound GPS information Video play window Mirror Flip Rotate the video screen left and right Dash cam file Pause/start recording Take pictures Dash cam settings...
-
Page 23: How To Play Using A Computer
• Over-The-Air Updates Note: Please update the Redtiger App to the latest version to use this function. 1. To perform an over-the-air update, disconnect your phone from the dash cam’s Wi-Fi network. Connect your phone to LAN (not the dash cam’s Wi-Fi) for 5 seconds, then disconnect. - Page 24 Video play window (Front) Map and track display Play control panel Speed and driving state indication Play list Note: When you find the desired video file, hold down the left mouse button and drag and drop it onto the video player to play it.
-
Page 25: Installation
Please follow the instructions below for the first- time installation of the Redtiger dash cam. • Insert Memory Card Insert the Memory Card into the dash cam, taking care that the gold contacts are facing towards the screen of the dash cam. - Page 26 • Front camera installation Peel off the electrostatic sticker on the cellophane and transfer it to where you want to stick it. Attach the front camera to the electrostatic sticker and press to make it firmer.
- Page 27 • Wire Layout In The Vehicle The car charger is connected to the cigar socket. Connect the other end of the car charger to the dash cam. Use the crowbar to run the power cable along the front windshield and the roof, and hide the cable down the A-pillar, so as not to block the driver's sight and cause danger.
-
Page 28: Troubleshooting
Trouble Shooting •Why is there no GPS signal? 1. Clean and reconnect the probe on the main unit and bracket. Check for any interference in your car, like metal film on the windshield, radio antenna, or radar detector. 2. Move your car to an open area. 3. - Page 29 3. Reset the machine through the small hole at the bottom of the driving recorder. 4. If none of the above can solve the problem, please try to power on the USB cable to confirm whether the host can be used normally.
-
Page 30: Customer Service Center
Customer Service Center If you have any problems using or installing the dash cam, please contact us with any questions. Help Center WhatsApp Redtiger For more information: After sales: help@redtigercam.com Business Cooperation: contact@redtigercam.com Customer Phone Service: +1 888 966 8028 (US) - Page 32 Check us out here. Product and service are the foundation of Redtiger. Instagram: @redtiger_dashcam Facebook: Redtiger Dash Cam www.redtigercam.com...
