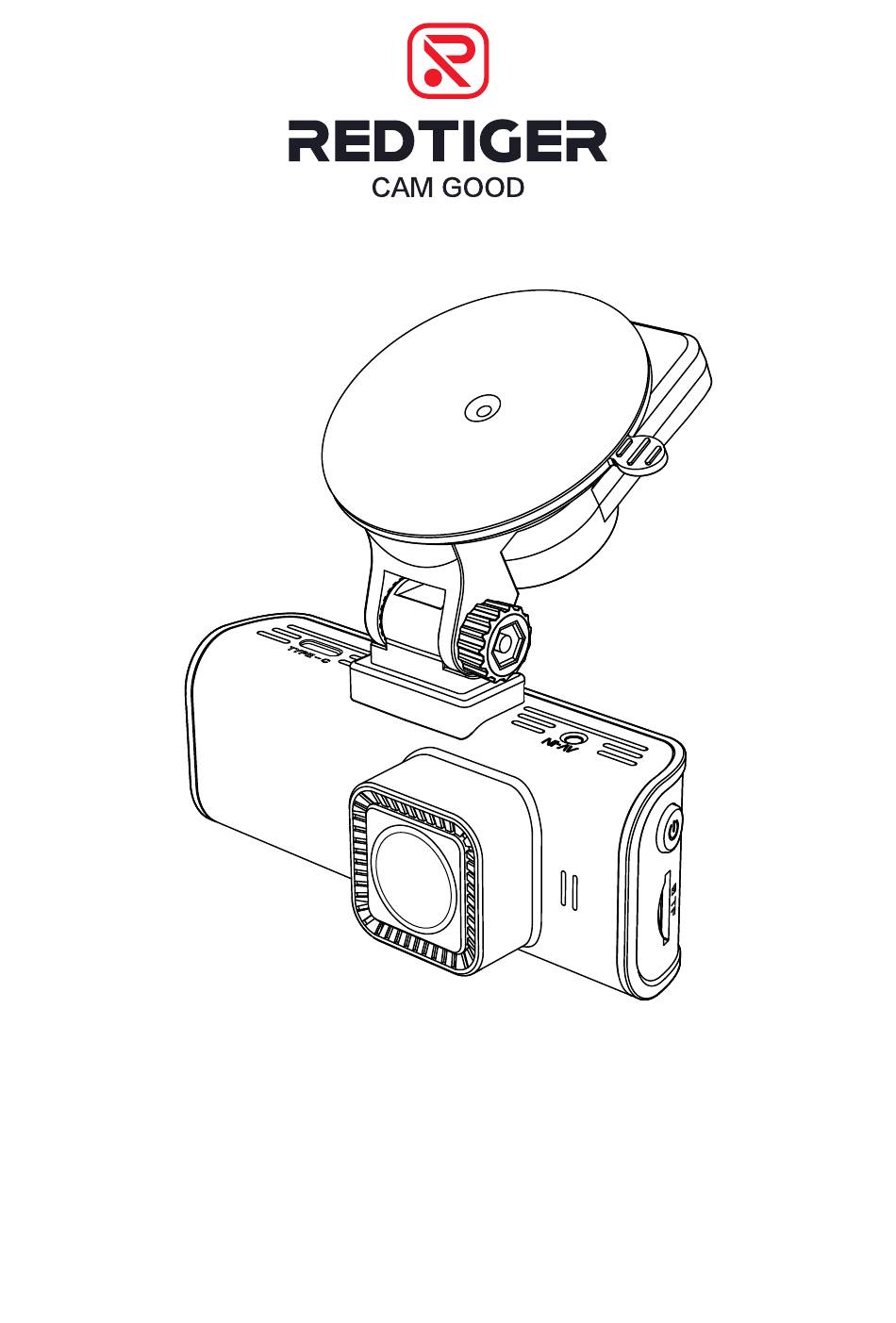

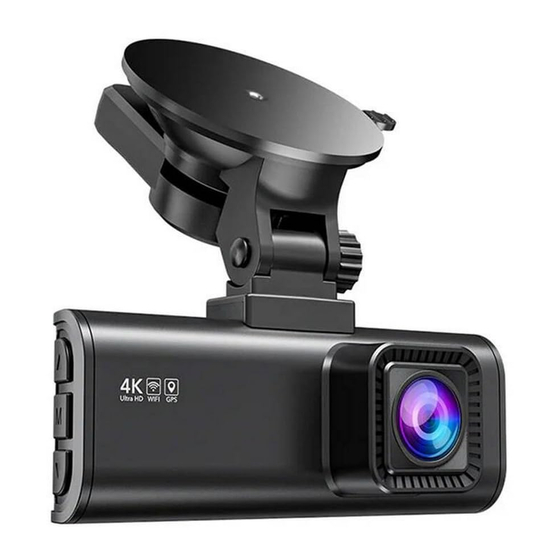

- Page 1 V1.0 F7NS User Manual redtigercam.com The information in this manual is subject to change without notice.
-
Page 3: Table Of Contents
Content Notice ......Product Specifications ..... Package Contents . -
Page 4: Notice
Notice • Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problems. • Improper installation will void the manufacturer's warranty. The installation instructions do not apply to all types of vehicles and are written as guidelines to assist in installing the system. -
Page 5: Product Specifications
Product Specifications Item Name F7NS Dash Cam Video Format Screen Size 3.18" IPS Screen Photo Format Recording Front 2160P @30fps / Front 1440P @60fps Resolution Front 1080P @120fps Input DC 5V-2.5A Lens Front cam F1.55 Operating -4°F~158°F Temperature Warranty Memory Card... -
Page 6: Package Contents
Package Contents • F7NS 4K Dash Cam • GPS Mount • Electrostatic • Cable Clips*5 • Power Supply Cable Sticker *2 with Car Charger • User Manual • Tool... -
Page 7: Appearance
Appearance Suction Cup USB Type-C port Rear Cam slot Power button Front camera lens Memory Card slot GPS Mount Status light blue light means power on, red light flashing means recording Up button Mode button Down button Screen Reset button... -
Page 8: Buttons And Functions
Buttons and Functions Power Button Recording Mode: • Short press-to Switch screen • Long press-to Turn off the Camera Setup Mode: • Short press-to Return to the previous screen Playback Mode: • Short press-to Return to the previous screen Menu Button Recording Mode: •... - Page 9 Down Button Recording Mode: • Short press-to Take a snapshot • Long press-to Stop recording Setup Mode: • Short press-to Select the next function Playback Mode: • Short press-to Select the next file • Short press-to Fast forward (while video is playing)
-
Page 10: User Interface Overview
User Interface Overview • Recording Mode Icon Description Generates in 1 min/3 mins/5 mins per file Display when fatigue driving function is on Displays the recording status and recording time Display the date and time of the machine Display recording resolution Show Memory Card status... - Page 11 Icon Description Display GPS status Display voice recording status Indicates that the rear camera is connected G-Sensor sensitivity display Wi-Fi status WiFi Emergency Video Lock Photograph function Enter the menu Power on Red led blinking: Recording Video/No Red led:Not Recording Video...
- Page 12 • Playback Mode Press the M button to enter Playback mode. Press the Up or Down button to select the folder you want to play, then press the M button to enter. Press the M button to watch the recorded video. Long press the M button for 3 seconds to edit your recorded videos.
-
Page 13: Function Overview
Function Overview Short press the M button to enter the settings menu, where you can adjust various functions and parameters of the camera. icon Function Option/Description Audio Sound Recording ON/OFF Resolution 2160P+1080P, 1440P+1080P Date Stamp Stamp ON/OFF Loop recording 1/3/5mins G-sensor Off/Low/Medium/High A Reminder Will be Made During... - Page 14 Function Option/Description Rear Cam Flip Vertical Flip Your Rear View Mirror Flip Horizontal Flip Your Front View A QR Code for Redtiger app Wi-Fi ON/OFF Language Choose Your Prefered Language Time Format 12h/24h Date / Time Update With GPS...
- Page 15 icon Function Option/Description Parking Mode Please connect the ACC hardwire kit Format Reminder Reminder to Clear Data Format Memory Card. All data will be Format deleted Card Speed Card Speed Detection Default Setting Reset All Settings Version Software Version Help Center Scan the QR code to contact us Note: •...
-
Page 16: App And Wi-Fi Function
2. Turn on the Wi-Fi on the dash cam, the Wi-Fi and SSID and password will appear on the display. 3. Open Redtiger App> jump to the Wi-Fi connection interface according to the steps> find the Wi-Fi of the dash cam> enter the password to connect. - Page 17 • App Home Native Wi-Fi Name Turn on/off recorded sound Switch recording screen GPS information Video play window Mirror Flip Rotate the video screen left and right Dash cam file Pause/start recording Take pictures Dash cam settings...
-
Page 18: How To Play Using A Computer
• Over-The-Air Updates Note: Please update the Redtiger App to the latest version to use this function. 1. To perform an over-the-air update, disconnect your phone from the dash cam’s Wi-Fi network. Connect your phone to LAN (not the dash cam’s Wi-Fi) for 5 seconds, then disconnect. - Page 19 Video play window (Front) Map and track display Play control panel Speed and driving state indication Play list Note: If the video files of front and rear road tracks are recorded synchronously and loaded into the playing list at the same time, they can be played separately in split left and right screens.
-
Page 20: Installation
Insert the memory card into the dash cam, ensuring that it is oriented correctly so that the gold contacts are facing towards the screen of the dash cam. Push the memory card until it clicks into the slot (F7NS does not include memory card). - Page 21 Find the right spot on the front windshield. Wipe the pre- installed location with a clean cloth. Use the suction cup to fix the F7NS dash cam on the windshield, adjust its angle to record a video with a better viewing angle.
- Page 22 • Wire Layout In The Vehicle The car charger is connected to the cigar socket. Connect the other end of the car charger to the dash cam. Use the crowbar to run the power cable along the front windshield and the roof, and hide the cable down the A-pillar, so as not to block the driver's sight and cause danger.
-
Page 23: Troubleshooting
Troubleshooting ・Why is there no GPS signal? 1. Disconnect and clean the cable and port of any dust that may have accumulated around the dash cam. Check for any interference in your car, like metal film on the windshield, a radio antenna, or radar detector. - Page 24 camera. 4. If the issue persists, connect the dash cam to a computer using a USB cable. If the device powers on, the issue may be caused by the car charger cable. If it does not power on while connected, there may be an issue with the dash cam itself.
-
Page 25: Customer Service Center
If you have any problems with the function or installation of your dash cam, please feel free to reach out to us. Help Center WhatsApp Redtiger For more information: After sales: help@redtigercam.com Business Cooperation: contact@redtigercam.com Customer Phone Service: +1 888 966 8028 (US) - Page 27 Check us out here. Product and service are the foundation of Redtiger. Instagram: @redtiger_dashcam Facebook: Redtiger Dash Cam www.redtigercam.com...
