ASSEMBLY INSTRUCTIONS
Quadro A
Counter Table Frame

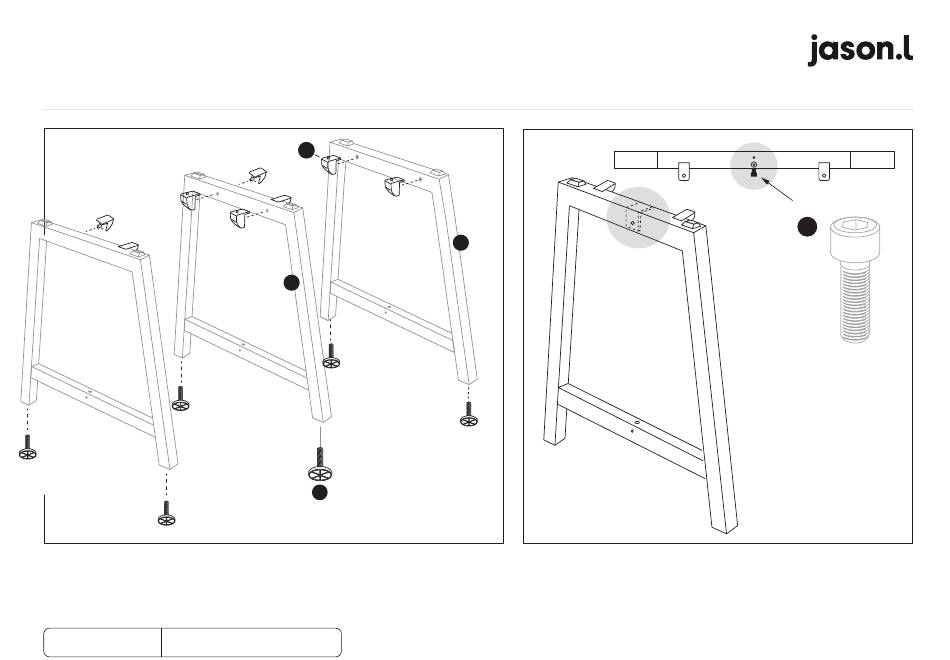

STEP 01
Using Allen Key provided, attach 2 plastic brackets (F) per exterior leg (B) (as
per picture above) using M6x20MM (J) Socket head screw. Attach 4 plastic
brackets (F) to the Intermediate leg (C) using M6x20MM (J). Screw the feets
or wheels (if you purchase with wheels option) (G) to the bottom of each Leg.
Need help!
Call us on
F
C
G
1300 527 665
STEP 02
B
Using Allen Key provided, attach M8x20MM Socket head (I)-
screw socket half way into legs.
TOP VIEW
I
www.jasonl.com.au
3 of 9
